EN - 10

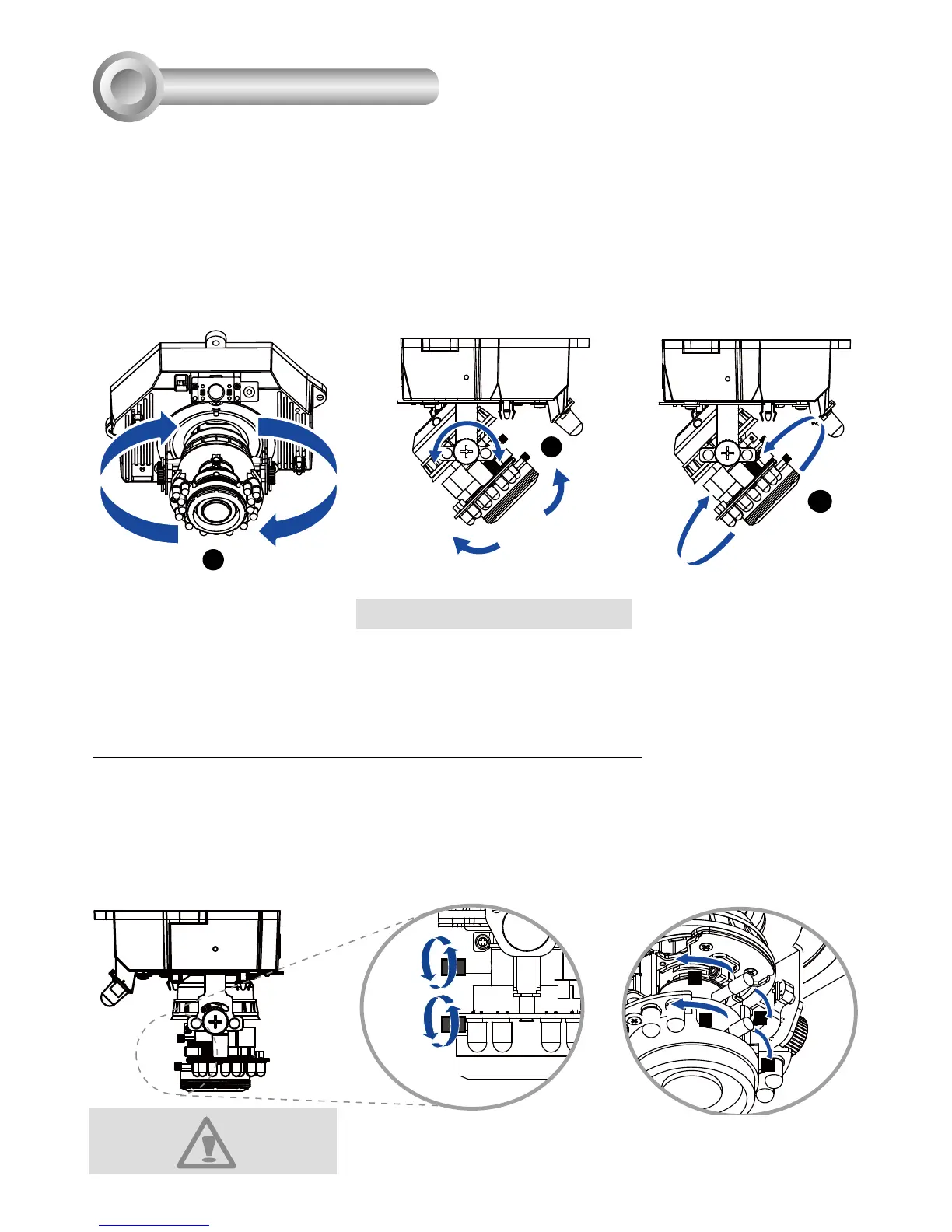

Based on the live image retrieved from the camera, adjust the camera lens to the desired
view angle:
1. Turn the lens module left and right.
2. Loosen the tilt adjustment screws on both sides of the camera and then turn the lens
module up and down. Upon completion, tighten the screws.
3. Turn the lens to adjust the image orientation.
Adjusting the Lens
7
1
3
2
Pan 350°
Rotate 350°
Tilt 65°
The sophisticated 3-axis mechanism design offers very exible, easy hardware installation
for either ceiling or wall mount.
3-axis Mechanism Design
DO NOT over-tighten the controller
bars. Doing so will damage the
camera lens module.
W
T
8
N
To adjust the zoom factor and focus range
1. Loosen the zoom controller and then adjust zoom factor by moving the controller left
and right. Upon completion, tighten the zoom controller screw.
2. Loosen the focus controller and then adjust focus range by moving the controller left
and right. Upon completion, tighten the focus controller screw.
To Next Page
