EN - 7
English
1
2

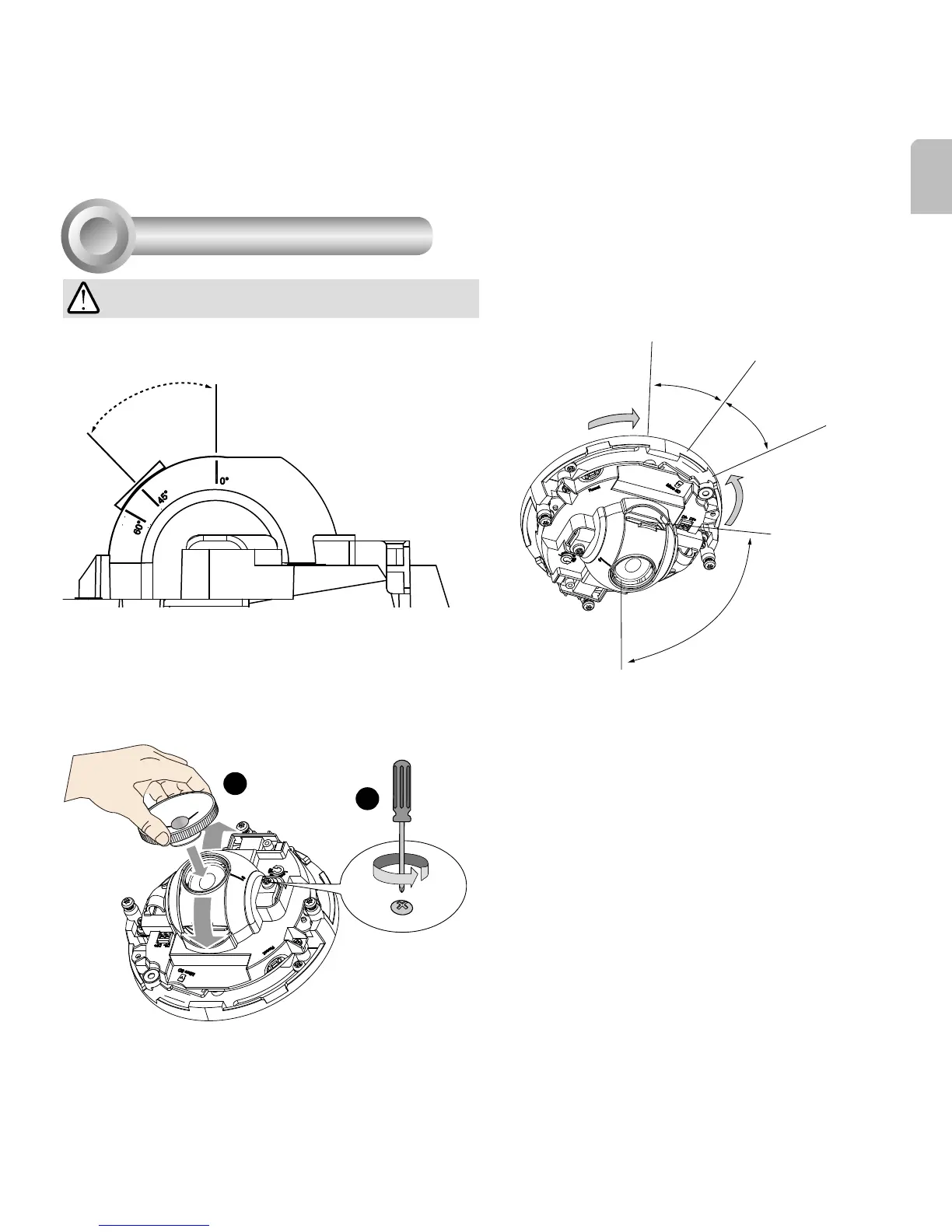

1. There is a tilt retention screw near the
lens module. Use a #0, #1, or #2 Phillips
screwdriver to loosen the screw. Use the lens
adjustment tool to carefully change the tilt
angle.
3. Tighten the tilt retention screw and the
camera's mounting screws after you change
the horizontal shooting direction. If you have
concerns for vandalism, remove the camera
and drill 2 more mounting holes for better
support as previously mentioned.
25
°
25°
60
°
Adjusting the Lens
7
2. You may also tune the camera's horizontal
orientation by turning it along its curved screw
slots.
For the F2 lens: the max. tilt angle is 45°.
For other lens: the max. tilt angle is 60°.
IMPORTANT:
