Vivotek FD8161 Quick Installation Guide

EN - 11
English
2
3
1

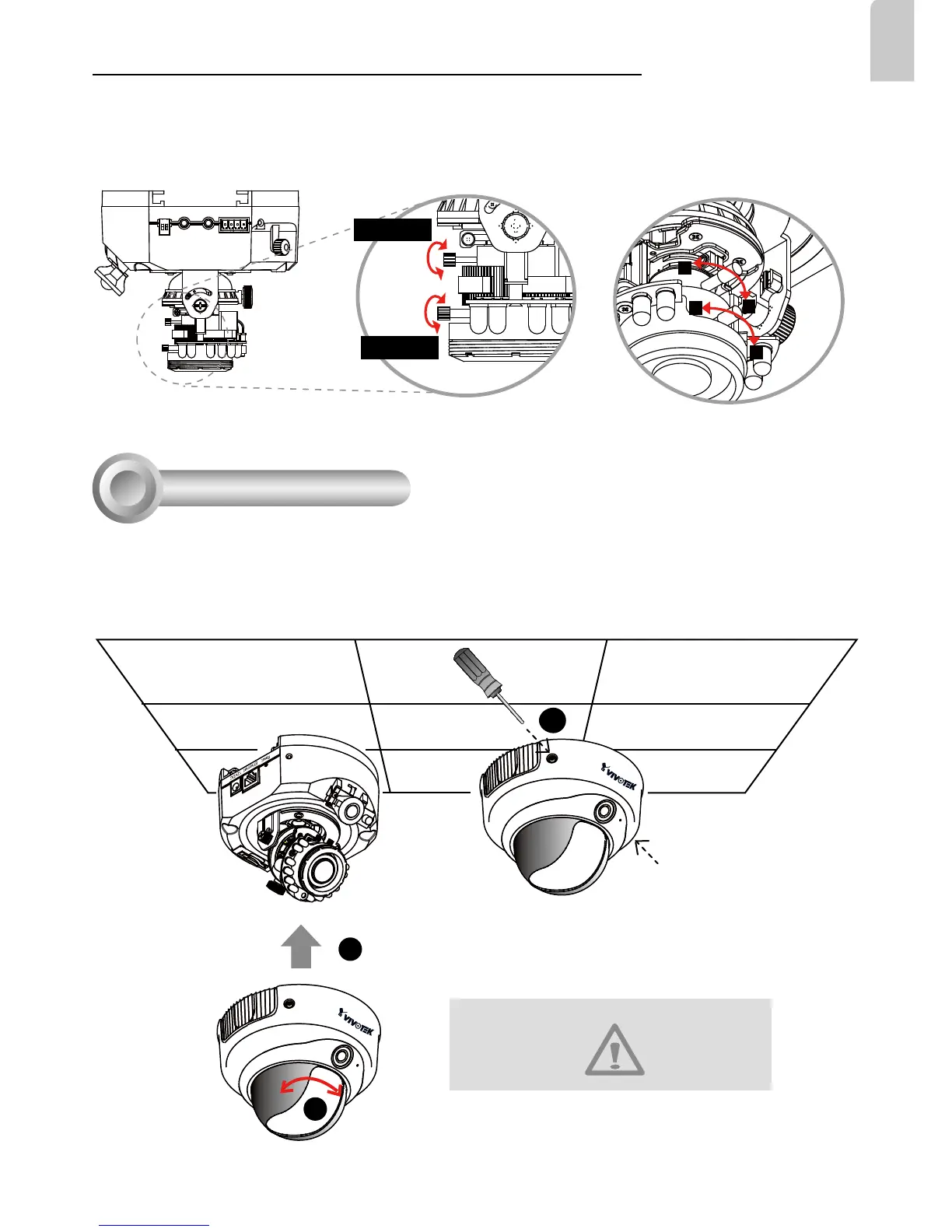

1. Rotate the black cover inside the dome cover to fit the lens shooting direction.
2. Attach the dome cover to camera.
3. Secure the two dome screws with a screwdriver. Finally, make sure all parts of the
camera are securely installed.
The supplied screwdriver is exclusively
designed to match the dome screws. In case
you will need to adjust the lens later, do not
discard the screwdriver.
Completion
8
Audio In
1 2 3 4
AV Out
ON
Int. NTSC
1 2
Ext PAL
W
T
8
N
To adjust the zoom factor and focus range
1. Loosen the zoom controller to adjust the zoom factor. Upon completion, tighten the zoom
controller.
2. Loosen the focus controller to adjust the focus range. Upon completion, tighten the focus
controller.
Loosen
Tighten
