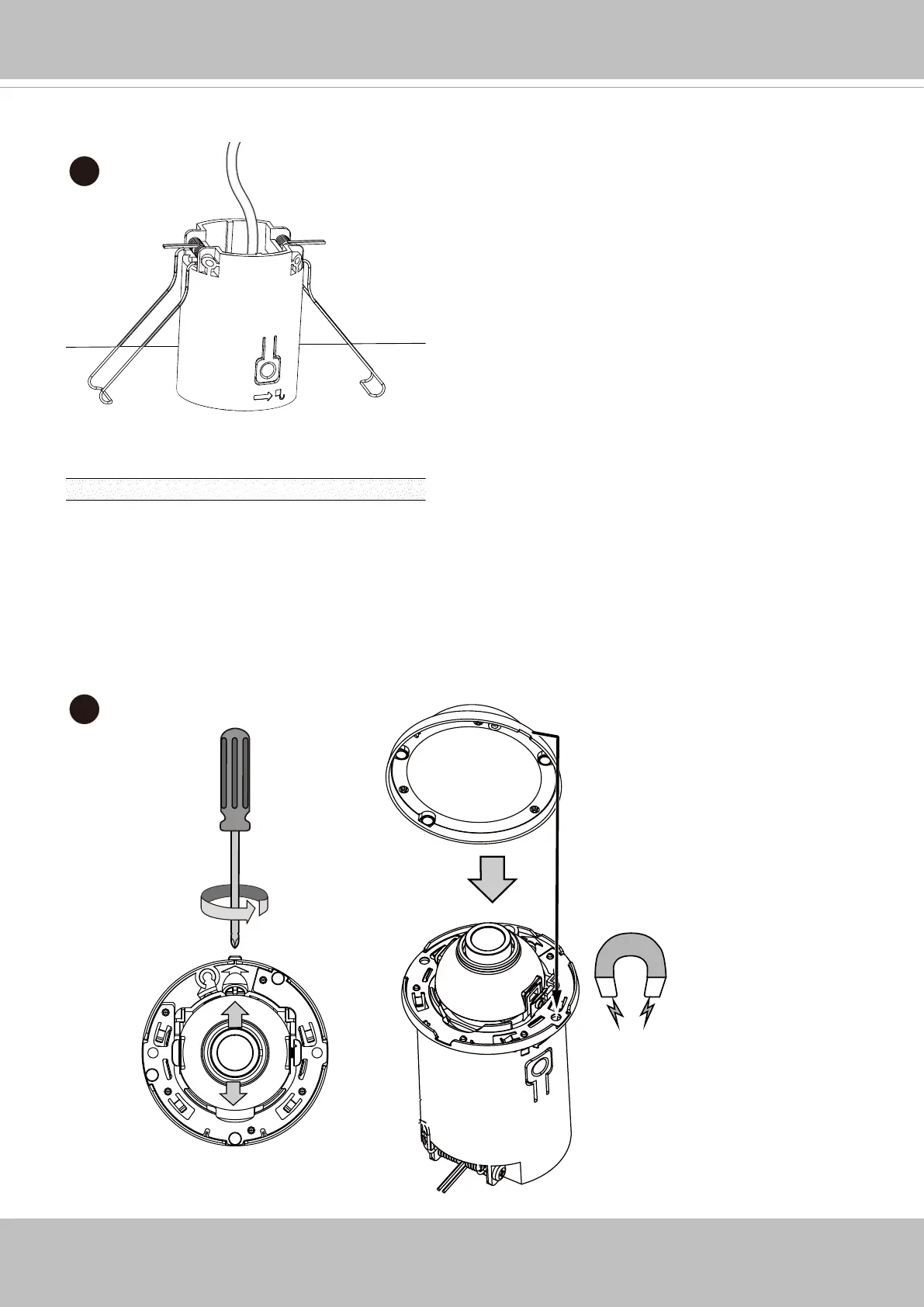

5. Once passed the mount hole, the retention clips will ip back and hold the module in place.
6. Note that the shooting angle of a xed lens can only be vertically adjusted. This mark should
be on top.
5
6
6-1. Use a small-size Phillips screwdriver to change the shooting angle of a xed focal lens.
6-2. Attach the top cover to camera by aligning the notch. The magnets will hold the cover in
place.
