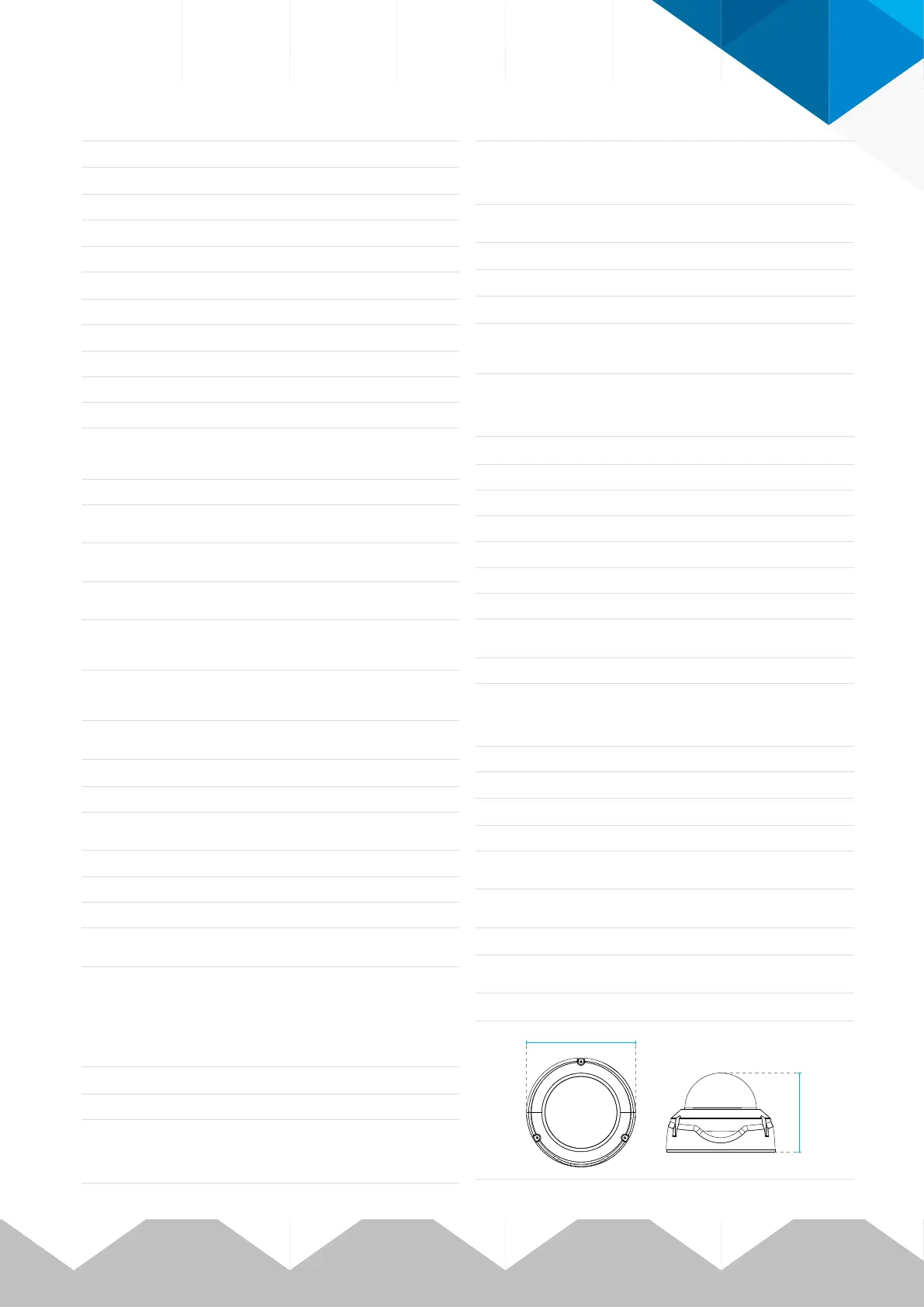

Technical Specifications
Model FD8379-HV
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128M B
RAM 256MB
Camera Features
Image Sensor 1/3" progressive CMOS
Maximum Resolution 2688x1520 (4MP)
Lens Type Fixed-focal
Focal Length f = 2.8 mm
Aperture F1.8
Field of View
114° (H)
61° (V)
132° (D)
Shutter Time 1/5 sec. to 1/16,000 sec.
WDR Technology
WDR Pro (supports up to 3.6MP, 24 fps @
2560x1440)
Day/Night
Removable IR-cut filter for day & night
function
Minimum Illumination
0.14 Lux @ F1.8 (Color)
0.01 Lux @ F1.8 (B/W)
Pan/Tilt/Zoom
Functionalities
ePTZ:
48x digital zoom (4x on IE plug-in, 12x
built-in)
IR Illuminators
Built-in IR illuminators, effective up to 30
meters with Smart IR
IR LED*8
On-board Storage
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
Compression H.264 & MJPEG
Maximum Frame Rate
30 fps @ 2688x1520 (without WDR Pro)
24 fps @ 2560x1440
Maximum Streams 3 simultaneous streams
S/N Ratio 61.8dB
Dynamic Range 110 d B
Video Streaming
Adjustable resolution, quality and bitrate;
Smart Stream II
Image Settings
Time stamp, text overlay, flip & mirror;
Configurable brightness, contrast,
saturation, sharpness, white balance,
exposure control, gain, backlight
compensation, privacy masks; Scheduled
profile settings, 3D noise reduction, video
rotation, defog
Network
Users Live viewing for up to 10 clients
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP,
RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP,
NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,
802.1X, UDP, ICMP, ARP, SSL, TLS
Interface
10 Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard
CAT5e & CAT6 cables which are compliant
with the 3P/ETL standard.
ONVIF
Supported, specification available at www.
onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
Alarm and Event
Alarm Triggers
Motion detection, manual trigger,
periodical trigger, system boot, recording
notification, camera tampering detection
Alarm Events
Event notification using HTTP, SMTP, FTP,
NAS server and SD Card
File upload via HTTP, SMTP, FTP, NAS
server and SD card
General
Connectors RJ-45 for Network/PoE connection
LED Indicator System power and status indicator
Power Input IEEE 802.3af PoE Class 0
Power Consumption Max. 10 W
Dimensions Ø 129 x 93 mm
Weight Net: 590.6 g
Casing
Weather-proof IP66-rated housing
Vandal-proof IK10-rated housing
Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL
Operating Temperature
Starting Temperature:
-10°C ~ 50°C (14°F~ 122°F)
Working Temperature:
-20°C ~ 50°C (-4°F~ 122°F)
Humidity 90%
Warranty 24 months
System Requirements
Operating System Microsoft Windows 8/7/Vista/XP/2000
Web Browser
Mozilla Firefox 7~43 (streaming only)
Internet Explorer 7/8/9/10/11
Other Players
VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
Others
Quick installation guide, alignment sticker,
screw pack
Dimensions
Ø12 9 m m
93 mm
