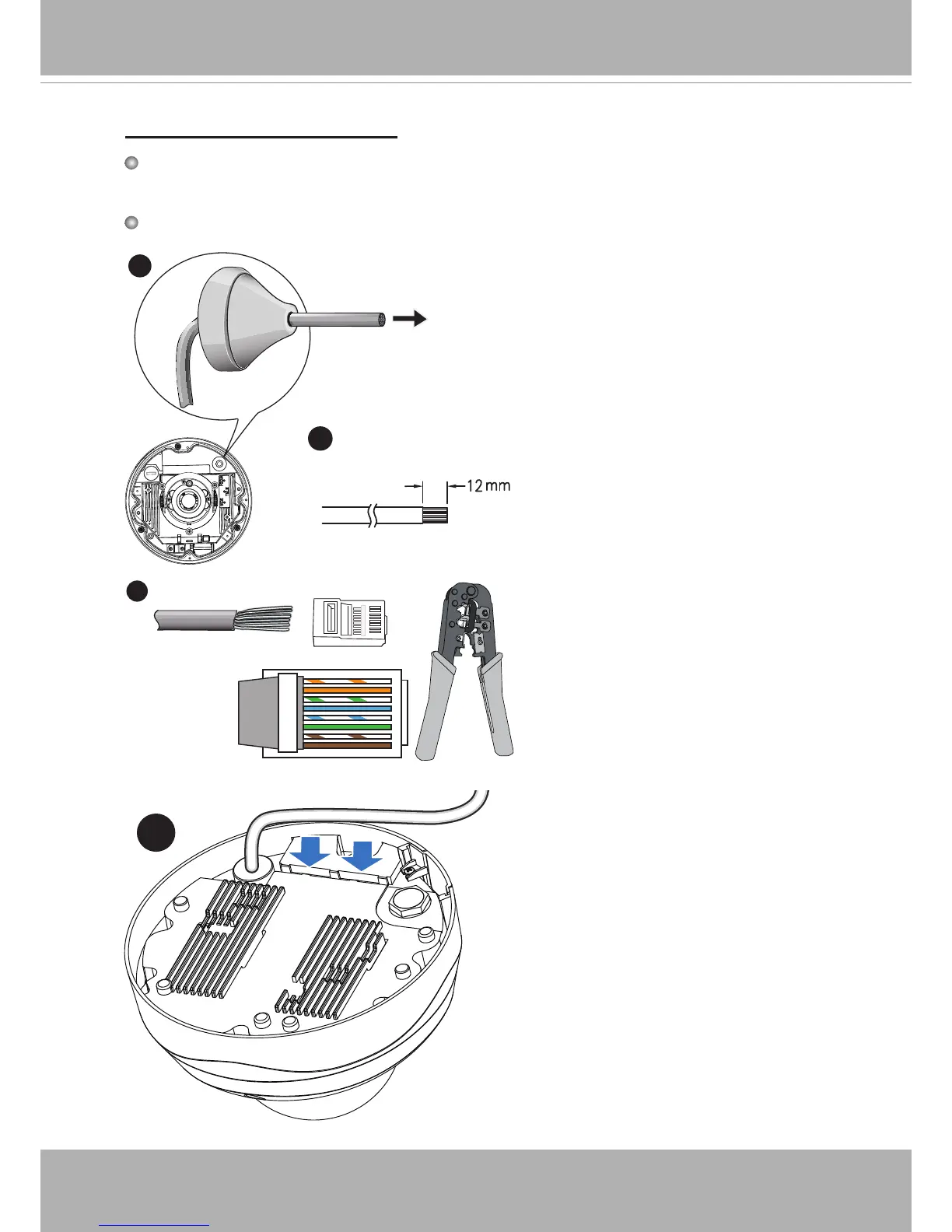

VIVOTEK
User's Manual - 13
RJ45 Cable Dimension (unit: mm)
Assembling Steps
Recommended cable gauge: 24AWG (0.51 mm)
Connecting RJ45 Ethernet Cable
3
o
O
g
B
b
G
br
BR
1
2
3
4
5
6
7
8
o: white/orange stripe
O: orange solid
g: white/green stripe
B: blue solid
b: white/blue stripe
G: green solid
br: white/brown stripe
BR: brown solid
3. You will need an RJ45 crimping tool
to attach the Ethernet wires to a
connector. When done, connect the
cable to the camera’s Ethernet RJ45
socket.
4. Press the Ethernet cable into the routing
path at the bottom of the camera so that
the cable will not get in the way when the
metal mounting plate is attached.
2
1
2. Strip part of the sheath from the Eth-
ernet cable.
1. Drill a hole on the rubber seal plug
and insert an Ethernet cable through
the opening.
Rubber Seal
Plug
4
