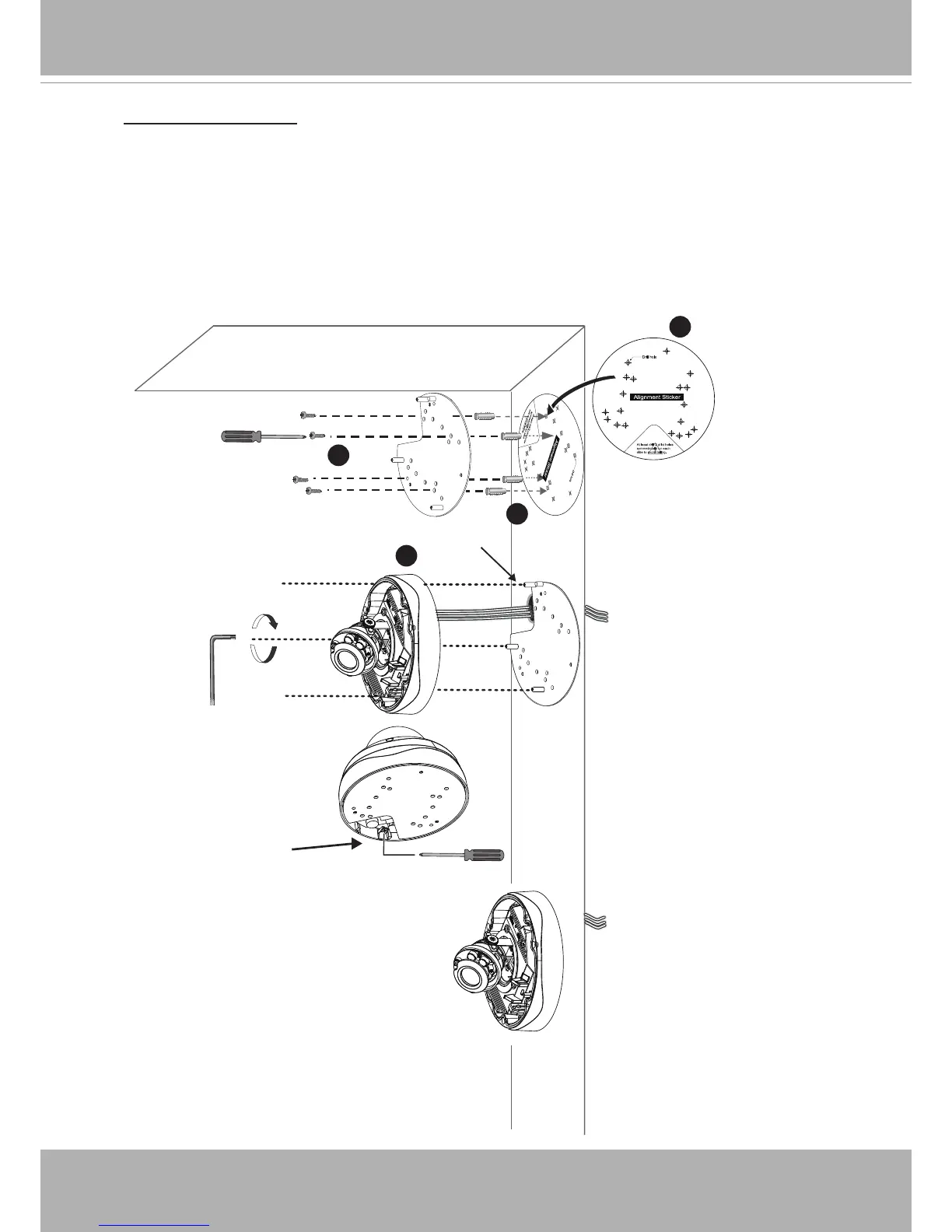

Mounting the Camera
1. Attach the supplied alignment sticker to the wall.
2. Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each
side into the wall. Then hammer the four supplied plastic anchors into the holes.
3. Through three or four holes on the mounting plate, insert the supplied screws into the
corresponding holes and secure the mounting plate with a screwdriver.
4. Feed the cables through the triangular cutout A or side opening B. If you want to use hole
B, remove the side cover using a screwdriver. Secure the camera base to the mounting
plate with three supplied screws.
5. Remove the black cover.
1
2
3
A
4
B
