VIVOTEK
18 - User's Manual

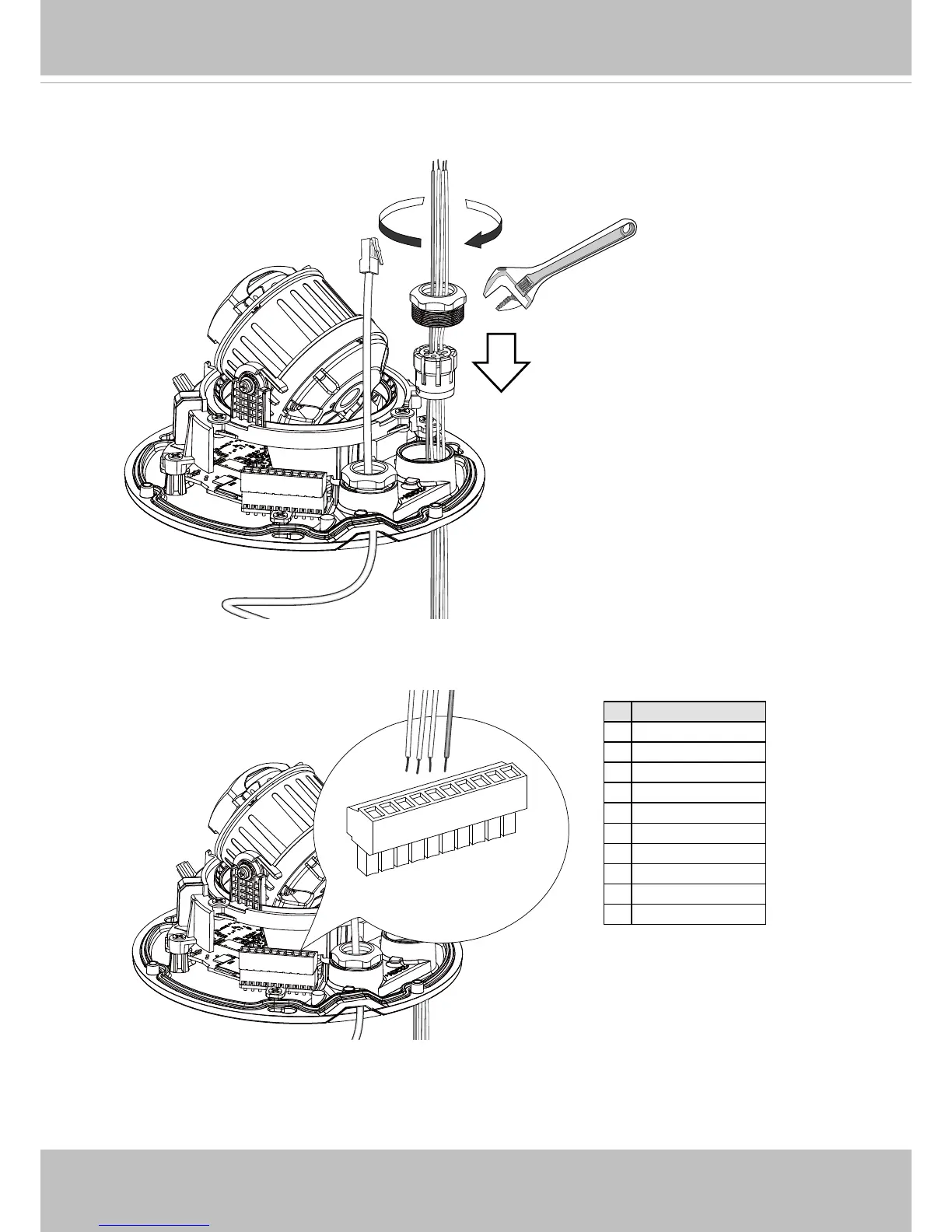

7. If preferred, insert DI/DO or power wires through the rubber seal, and install cable gland
components. This cable gland must be installed whether you have DI/DO wires or not.
Otherwise, water or moisture ingress will occur.
1
2
3
4
5
6
7
8
9
10
# Name
1 EXT_MIC_N
2 EXT_MIC_P
3 Audio_out-
4 Audio_out+
5 DI-
6 DI+
7 DO-
8 DO+ (5V)
9 12V DC-_IN
10 12V DC+_IN
The terminal block pinouts is shown below:
