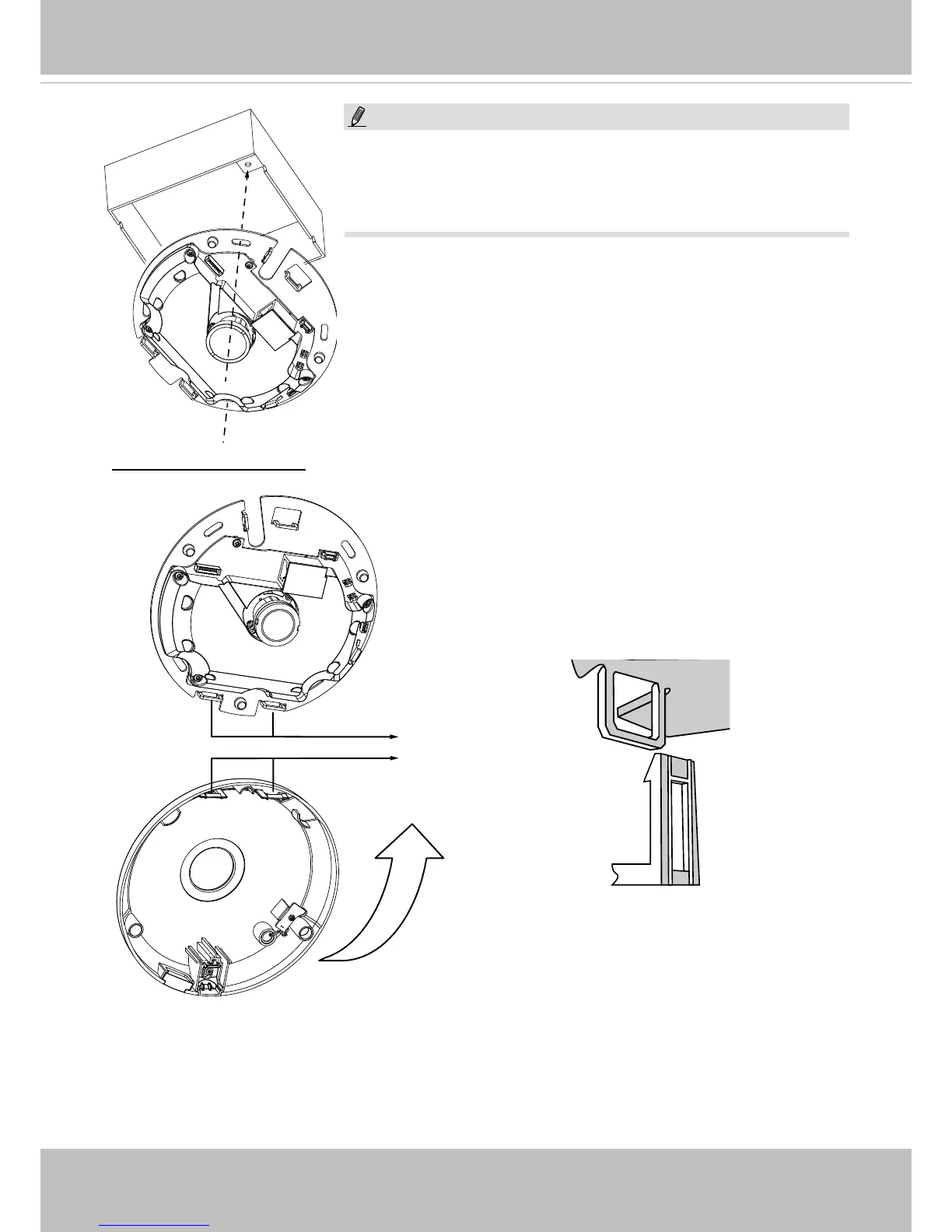

You may also install the camera to a U.S. standard 4 in. junction
box. You can align the camera’s curved slots with the mounting
holes on a junction box. Use diagonal mounting positions on the
camera to match those on a junction box.
Install the plastic dome cover by aligning the snap-
t tabs on the dome cover with the slotted tabs on the
camera base. Install the dome cover by pressing it even-
ly to the camera base.
Make sure the dome cover and the base plate are ush-
aligned before pressing down. The dome cover is se-
cured using a snap-t mechanism.
NOTE:
Attach the Dome Cover
Snap-t tabs
Dome cover
Slotted tabs
To Next Page
