Vivotek FE8172 User Manual

VIVOTEK
8 - User's Manual

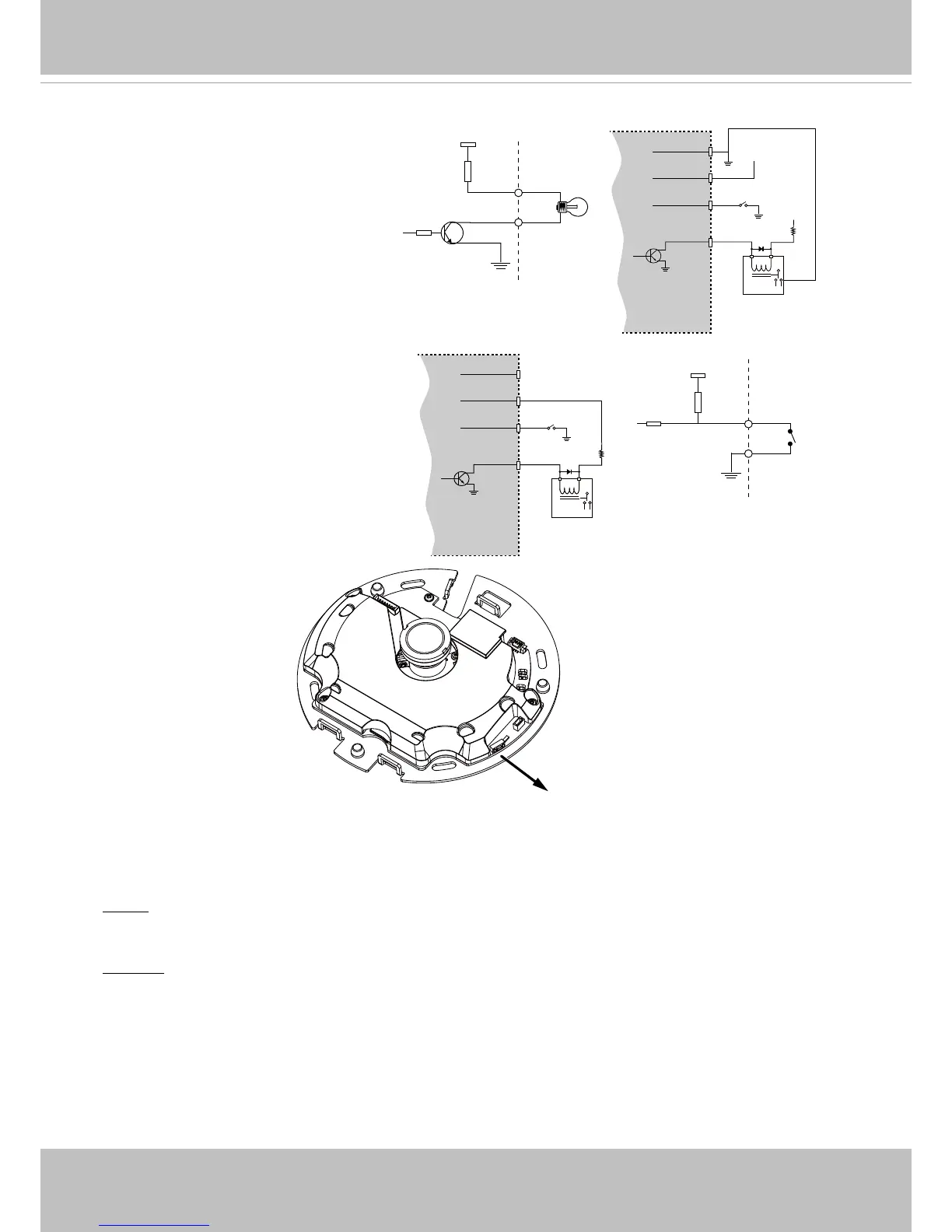

DI/DO Diagram
Please refer to the following illustration
for the connection method.
Hardware Reset
The reset button is used to reset the system or restore the factory default settings. Sometimes
resetting the system can return the camera to normal operation. If the system problems remain
after reset, press the reset button longer to restore the factory settings and install again.
Reset: Press and release the recessed reset button with a straightened paper clip. Wait for the
Network Camera to reboot.
Restore: Press and hold the recessed reset button for at least several seconds to restore. Note
that all settings will be restored to factory defaults.
Micro SD/SDHC/SDXC Card Capacity
This network camera is compliant with Micro SD/SDHC/SDXC 32GB and other preceding standard SD
cards.
3.3V
Digital output
PIN 1
Power+3.3V
PIN 2
Gnd
Camera Power
Input
Output
1
2
3
4
+30
VDC
Max.
VDC
Switch
Relay
BJT transistor
Gnd
Camera Power
Input
Output
1
2
3
4
+3.3V
VDC
VDC
Switch
Relay
BJT transistor
+3.3V
Digital input
PIN 3
Ground
PIN 4
Reset Button
