VIVOTEK
User's Manual - 15

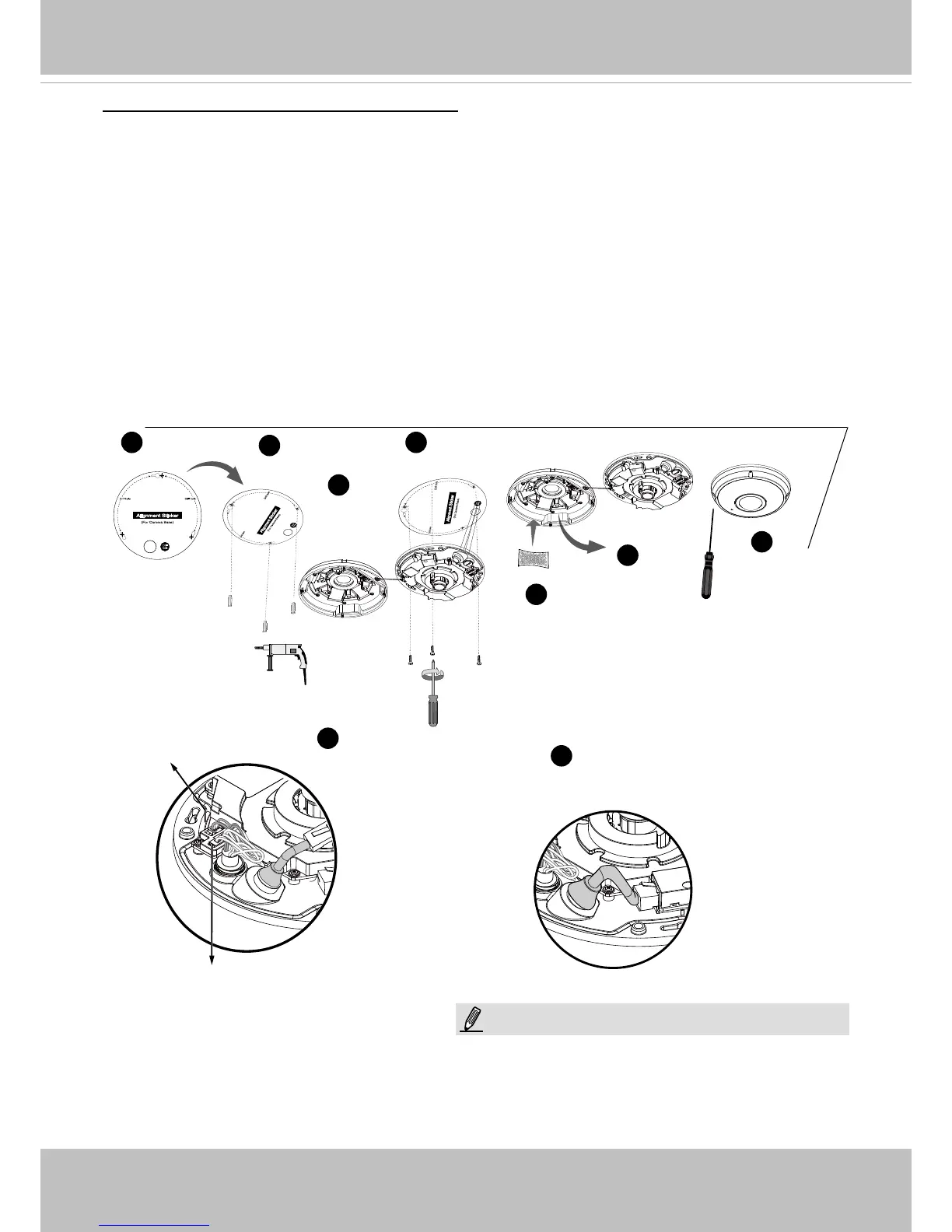

Ceiling/Wall Mount without Mounting Plate
(Choose this mounting type if you want to feed the cables from the bottom of the camera)
NOTE:
Header (J7)
Header (J6)
1
2
3
8
9
4
5
6
1. Attach the alignment sticker for the camera base to the ceiling/wall.
2. Using the three circles on the sticker, drill three pilot holes into the ceiling. Then hammer the
three plastic anchors into the holes.
3. Drill a cable hole on the ceiling/wall, and feed the cables through the hole.
4. Connect the Ethernet cable to the socket.
5. Connect the two white headers to the J6 and J7 connectors.
6. Secure the camera base to the ceiling/wall using three supplied screws.
7. You will nd a desiccant bag attached to the camera. Replace the desiccant bag included in
the camera with the one in the accessory bag.
8. Attach the dome cover.
9. Secure the four screws with the supplied stardriver. Make sure all camera parts are securely
installed.
Arrange the cables neatly to avoid getting in the
way when the dome cover is attached.
7
