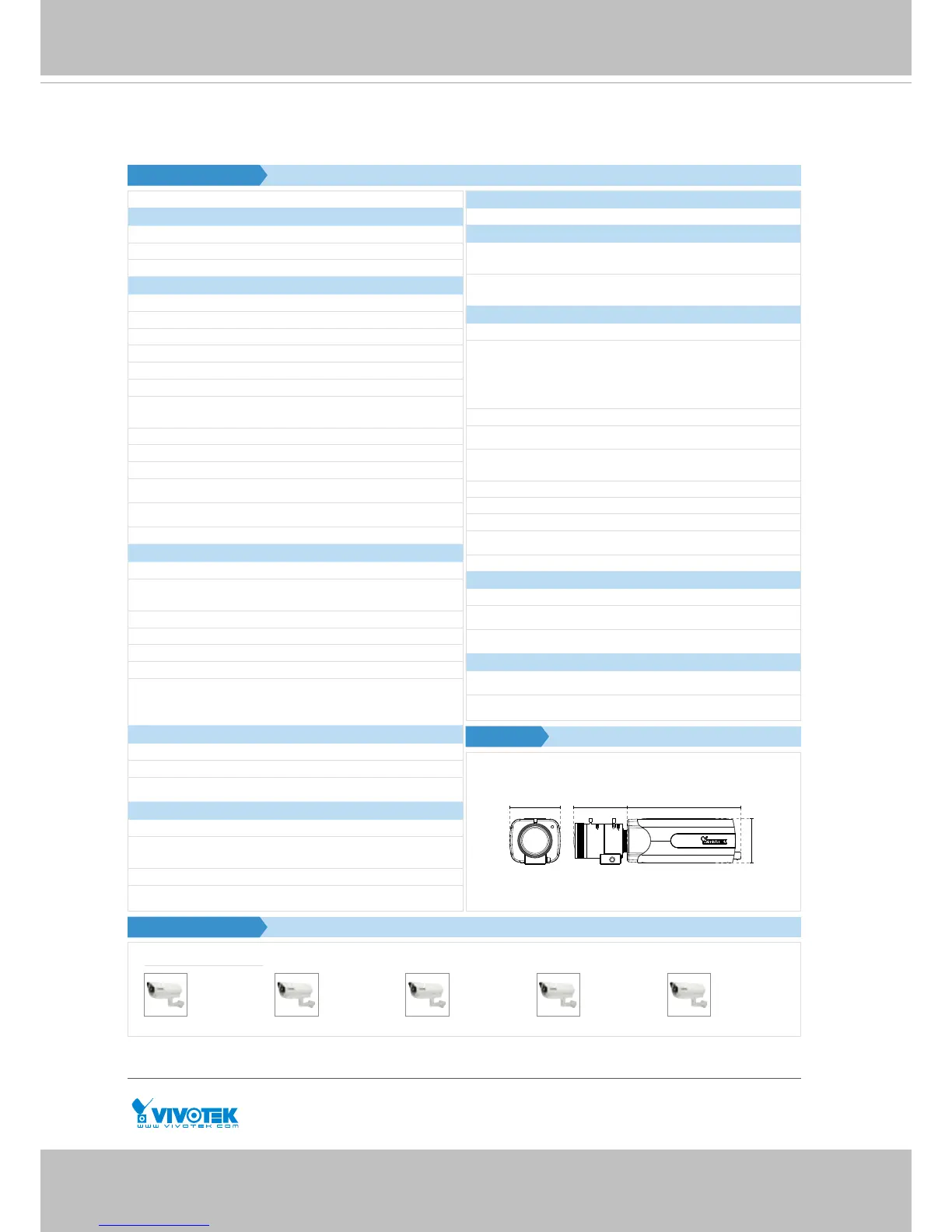

Technical Specications
Model IP816A-HP
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 256 MB
RAM 384 MB
Camera Features
Image Sensor 1/1.9" Progressive CMOS
Maximum Resolution 1920x1080 (2MP)
Lens Type Vari-focal
Focal Length f = 4 ~ 18 mm
Aperture F1.4 ~ F13
Auto-iris P-iris (DC-iris reser ved)
Field of View 29° ~ 106° (Horizontal)
16° ~ 60° (Vertical)
33° ~ 130° (Diagonal)
Shutter Time 1/5 sec. to 1/10,000 sec.
WDR Technology WDR Pro
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination 0.03 Lux @ F1.4 (Color)
0.001 Lux @ F1.4 (B/W)
Pan/tilt/zoom Functionalities ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
On-board Storage SD/SDHC/SDXC card slot
Video
Compression H.264 & MJPEG
Maximum Frame Rate In both compression mode
30fps @ 1920 x1080
60fps @ 1920 x1080 (In one-stream mode only)
Maximum Streams 2 simultaneous streams
S/N Ratio 50.8 dB
Dynamic Range Up to 100 dB
Video Streaming Adjustable resolution, quality and bitrate
Image Settings Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness,
white balance, exposure control, gain, backlight
compensation, privacy masks, scheduled profile settings
3D noise reduction, EIS, video rotation, snapshot focus
Audio
Audio Capability Two-way audio (full duplex)
Compression A AC, G.711, G.726
Interface External microphone input
Audio output
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,
802.1X, UDP, ICMP
Interface 10Base-T/100 BaseTX Ethernet (RJ-45)
ONVIF Supported, specification available at www.onvif.org
Technical Specifications
Compatible Accessories
Intelligent Video
Video Motion Detection Triple-window video motion detection
Alarm and Event
Alarm Triggers Video motion detection, manual trigger, digital input,
periodical trigger, system boot, recording notification,
camera tampering detection, audio detection
Alarm Events Event notification using digital output, HTTP, SMTP, FTP and
NAS server, SD Card
File upload via HTTP, SMTP, FTP, NAS ser ver and SD card
General
Smart Focus System RBF (Remote Back Focus)
Connectors RJ-45 for Network/PoE connection
Audio input/output
BNC Video output
AC 24V power input
DC 12V power input
Digital input*3
Digital output*1
RS485
LED Indicator System power and status indicator
Power Input DC12V/AC 24V
IEEE 802.3af PoE
Power Consumption DC Max. 9.2W
AC Max. 15.4W
PoE Max.12.2W
Dimensions 230.2 mm (D) x 70 mm (W) x 63.5 mm (H)
Weight Net: 632g
Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature Starting Temperature: 0°C ~ 60°C (32°F ~ 140°F)
Working Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Warranty 36 months
System Requirements
Operating System Microsoft Windows 8/7/Vista/XP/2000
Web Browser Mozilla Firefox 7~10 (streaming only)
Internet Explorer 7/8/9/10
Other Players VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD User's manual, quick installation guide, Installation Wizard 2,
ST7501 32-channel recording software
Others Quick installation guide, warranty card, lens, camera stand,
screw pack
Dimensions
70 mm 73.7 mm
63.5 mm
156. 5 m m
Enclosures
A E -211
Camera enclosure
with blower
AE-232
Camera enclosure
with heater and
blower
AE-233
Camera enclosure
with heater and
blower (24 VAC)
AE-234
Camera enclosure
with blower and
IR (IK10)
AE-235
Camera enclosure
with blower and IR
