User's Manual - 11
IMPORTANT:
It is important to leave a clearance of 10cm around the chassis. The clearance is required to
ensure an adequate airow through the chassis to ventilate heat.
To ensure normal operation, maintain ambient airow. Do not block the airow around chassis
such as placing the system in a closed cabinet.
SATA hard disk(s) are user-supplied. The network video recorder can readily accommodate
most of the off-the-shelf SATA hard drives.
2

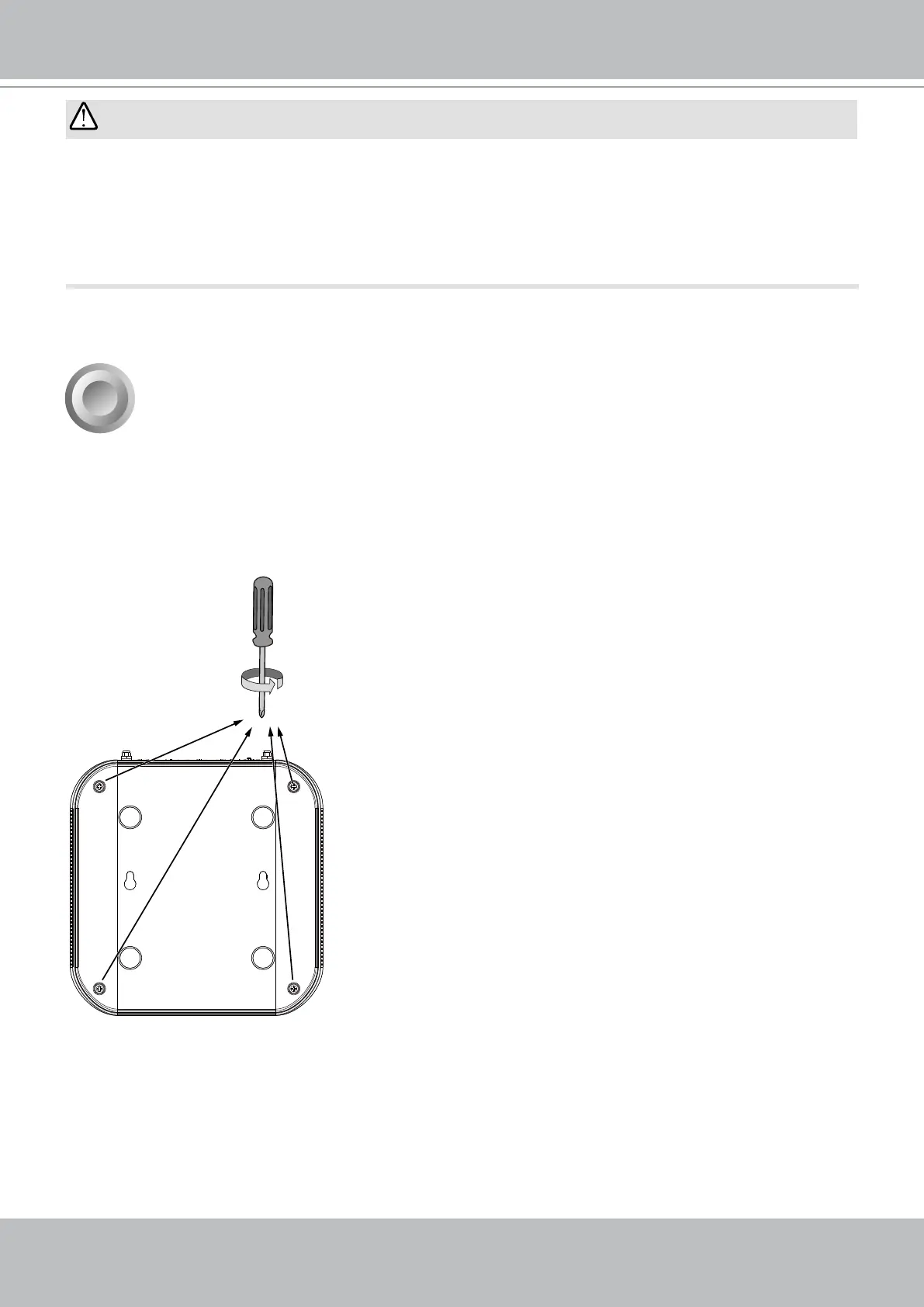

1. Use a Phillips screwdriver to loosen the retention screws from the bottom of the chassis. Re-
move the top cover.
Hardware Installation
