Mechanical Dimensions
243,8140
200
107,8
165,5
10
R5
225,2
20
9
13,9
R253,2
156
170,06
3mm Hexagon Socket
Headless Set Screw
Cable Clamp
1-1/2" (PS11)

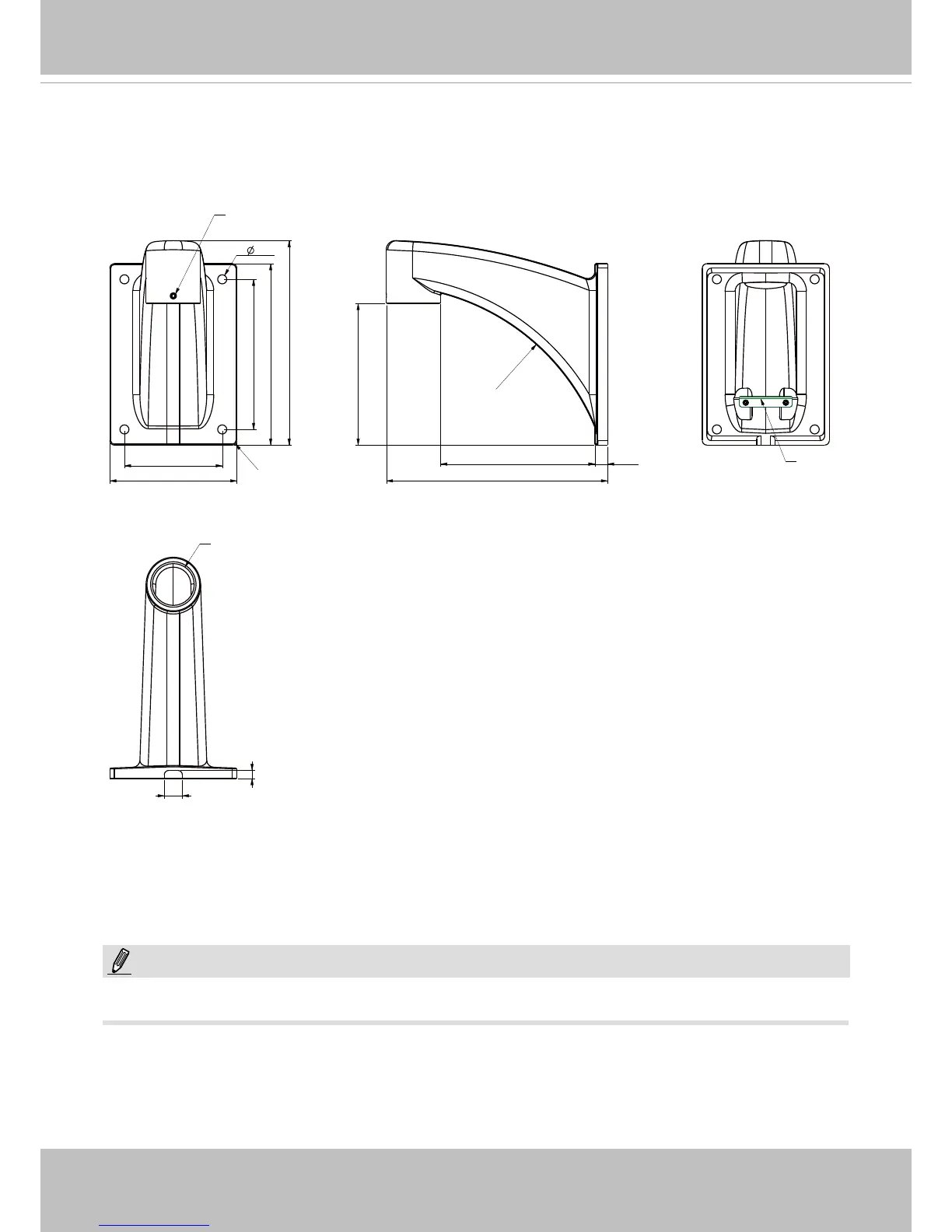

Shown below are the dimensions of the wall mount bracket and its mounting holes:
You can nd the installation instructions on VIVOTEK’s website for
other options such as parapet mount: http://www.vivotek.com/web/
product/accessories.aspx
Before mounting the camera, install an SD card if you prefer recording to local storage.
NOTE:
