HOW TO USE ILLUSTRATED PARTS LIST
Ordering Parts
Use this parts list to order parts for your Vivreau
ViTAP Dispensing System.
For your convenience, part numbers have been
included for all replaceable parts.
Illustrations
Item numbers on illustrations correspond with parts
listings on pages that accompany the drawings.
Notes are included on illustrations where needed.
Parts Listings
Parts listings identify serviceable parts with the
following categories:
Item - corresponds with numbers on illustrations
for part identication.
Description - species part name or description
of the item.
Quantity (Qty) - quantity required for assembly.
Illustrated Parts List
Item No. Part Number Description Qty
1 Shutoff Valve Supplied by Client 1
2 1025653 Boiler Tube 1/2” MPTx3/4” NH 1
3 1025654 Boiler Tubing 1/2” MPTx3/4” NH 1
4 1025655 Everpure Water Block Reset 1
5 1046016 Brass Female Connector (Garden Hose) 3/8 X 3/4 - 11.5 NH 1
6A 1045998 Insulation Pipe 3/8” ID x 3/8” x6 1
6B 1046021 LLDPE Tubing 3/8 OD, Black (500 ft. Roll) 1
6C 1045998 Insulation Pipe 3/8” ID x 3/8” x6 1
7A 1046021 LLDPE Tubing 3/8 OD, Black (500 ft. Roll) 1
7B 1045998 Insulation Pipe 3/8” ID x 3/8” x6 1
7C 1046021 LLDPE Tubing 3/8 OD, Black (500 ft. Roll) 1
8 1019480 Gray Acetal Female Connector 3/8 X 1/2 BSPP (Cone End) 2
9 1046036 Locking Clip, 3/8 9
10 1025656 Dual Check Valve With Shutoff 1
11 1019479 Gray Acetal Plug In Elbow 3/8 Stem - 3/8 Tube 2
12 1025659 VH-3 Filter Head 1
13 1025660 HF 40 Filter 1
14 1046039 Superseal Union Connector 3/8 - 5/16 1
15 1040294 Reg Pri WM 160 W/6’ Hose Attchd 1
16 1040284 12.3 Stepless Clamp (100 pack) 2
17 1040283 .265 Whiteline Braided Bev Tube (500’ roll) 1
18 1025664 CO2 Regulator Wrench 1
19 1019493 5/16 x 5/16 Elbow 2
20 1046037 5/16” Red Locking Clip 4
21 1045999 1/4” Armaex Insulation 6’ 1
22 1046020 LLDPE Tubing 5/16 OD, Natural (500 ft. Roll) 1
23 1040298 1/2 x 3/4 Clear Vinyl Tube (100’ Roll) 1
24 1042385 UC Electronic Cooler Carbonator (VCC) USA - Refurbished 1
25 1032429 Tap VITAP2 302 TAP ONLY 1

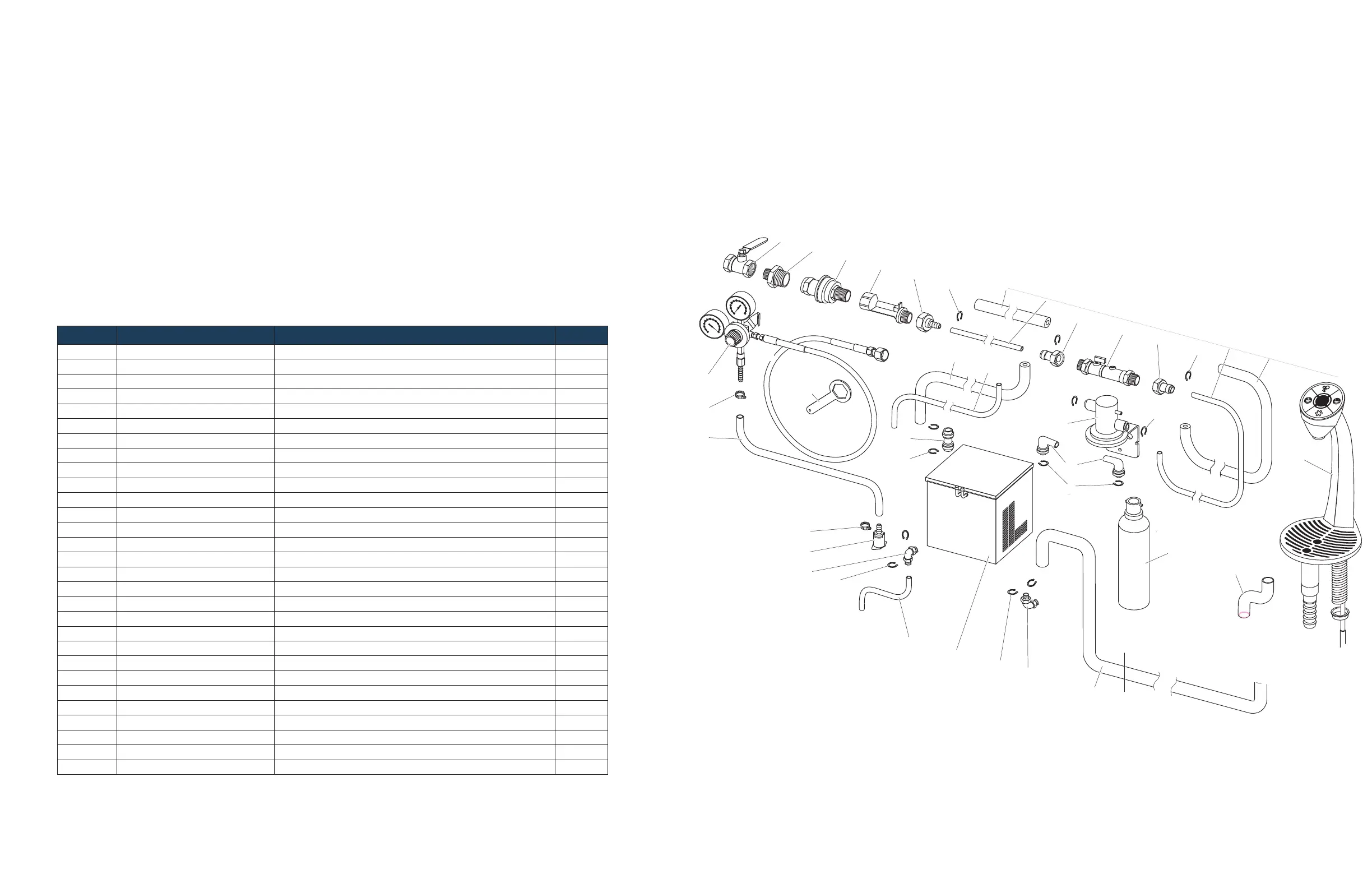

ViTAP-2 Single Serve Dispenser Exploded View
1
2
3
4
5
8
10
15
16
19
17
14
9
8
9
13
24
25
26
21
23
20
21
20
18
16
9
9
11
12
9
6A
7A
6C
7C
6B
7B
27
22
28
ViTAP-2 Single Serve Dispenser Parts List
18
19
20
21
19
20
22
23
24
25
