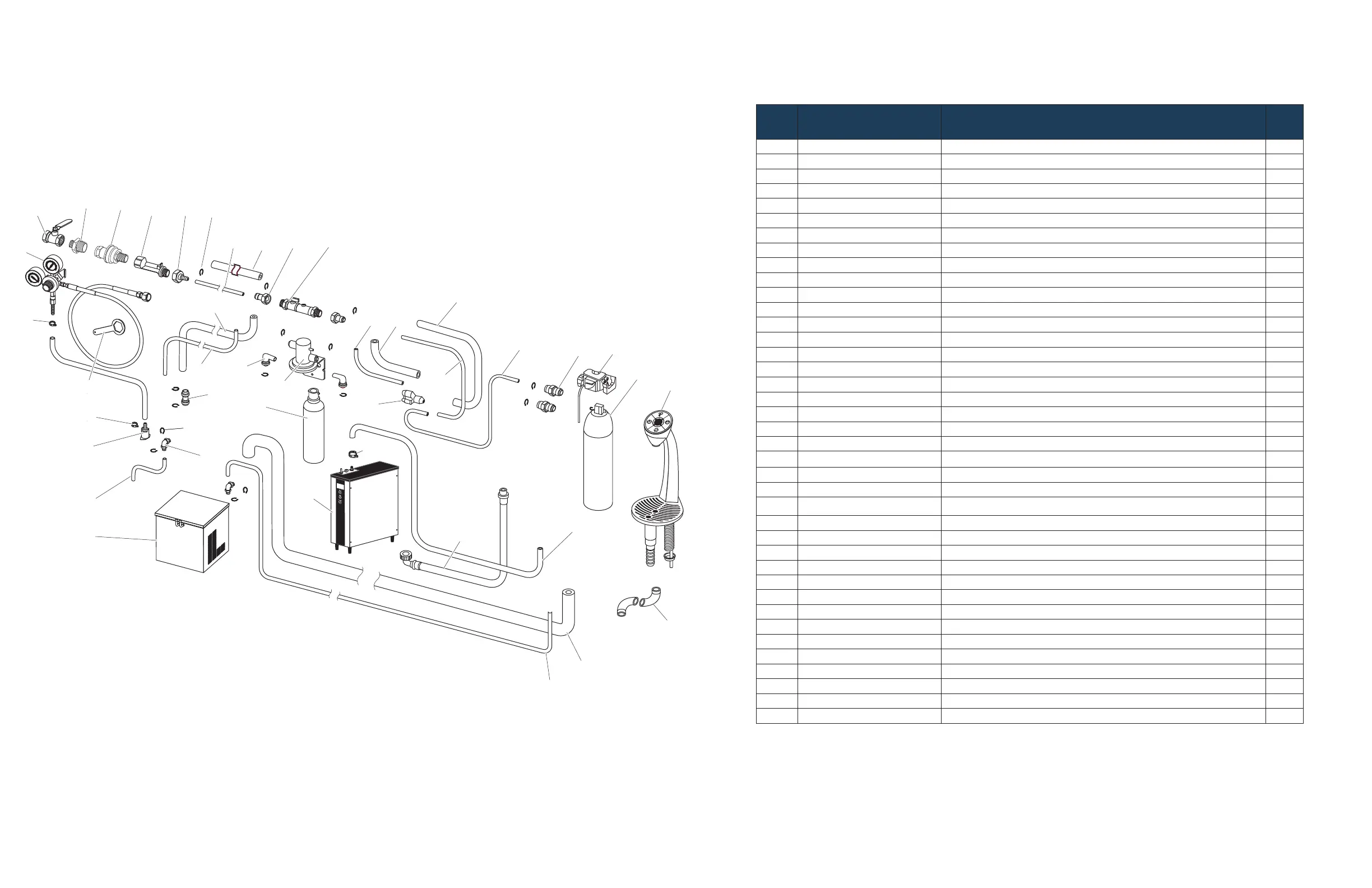

ViTAP-2H Single Serve Dispenser Exploded View
ViTAP-2H Single Serve Dispenser Parts List
Item
No.
Part Number Description Qty.
1 Shut Off Valve Supplied by Client 1
2 1025653 Boiler Tube 1/2” MPTx3/4” NH 1
3 1025654 Boiler Tubing 1/2” MPTx3/4” NH 1
4 1025655 Everpure Water Block Reset 1
5 1046016 Brass Female Connector (Garden Hose) 3/8 X 3/4 - 11.5 NH 1
6 1046036 Locking Clip, 3/8 12
7 1046021 LLDPE Tubing 3/8 OD, Black (500 ft. Roll) 1
8 1045998 Insulation Pipe 3/8” ID x 3/8” x6 1
9 1019480 Gray Acetal Female Connector 3/8 X 1/2 BSPP (Cone End) 2
10 1045998 Insulation Pipe 3/8” ID x 3/8” x6 1
11 1025656 Dual Check Valve with Shutoff 1
12 1019479 Gray Acetal Plug In Elbow 3/8 Stem - 3/8 Tube 2
13 1025659 VH-3 Filter Head 1
14 1045998 Insulation Pipe 3/8” ID x 3/8” x6 1
15 1046021 LLDPE Tubing 3/8 OD, Black (500 ft. Roll) 1
16 1046062 UC Electronic Cooler Carbonator (VCC) USA 1
17 1025660 HF 40 Filter 1
18 1019493 5/16 x 5/16 Elbow 2
19 1046037 5/16 Red Locking Clip 4
20 1040294 Reg Pri WM 160 W/6’ Hose Attchd 1
21 1040283 .265 Whiteline Braided Bev Tube (500’ roll) 1
22 1040284 12.3 Stepless Clamp (100 pack) 3
23 1025664 CO2 Regulator Wrench 1
24 1046020 LLDPE Tubing 5/16 OD, Natural (500 ft. Roll) 1
25 1032432 Tap VITAP2H 305 TAP ONLY 1
26 1040298 1/2 x 3/4 Clear Vinyl Tube (100’ Roll) 1
27 1046039 Superseal Union Connector 3/8 - 5/16 1
28 1045998 Insulation Pipe 3/8” ID x 3/8” x6 1
29 1046021 LLDPE Tubing 3/8 OD, Black (500 ft. Roll) 1
30 1046021 LLDPE Tubing 3/8 OD, Black (500 ft. Roll) 1
31 1024852 3/8 Two Way Divider 1
32 1033576 Mavea Filter Head for Purity C300 and C500 3/8 Pusht 1
33 1001398 Purity C300 Cartridge Pk 1 1
34 1046021 LLDPE Tubing 3/8 OD, Black (500 ft. Roll) 1
38 1046046 V Boiler UC4 Eco UL-110V-USA 1
39 1046006 White Marco Boiler Hose 1
40 1045933 3’ 5/16” x 9/16” Silicone Tubing 1
41 1045999 1/4” Armaex Insulation 6’ 1
42 1025658 18.5 Stepless Clamp (100 Pack) 1
