12 13
WATER SUPPLY

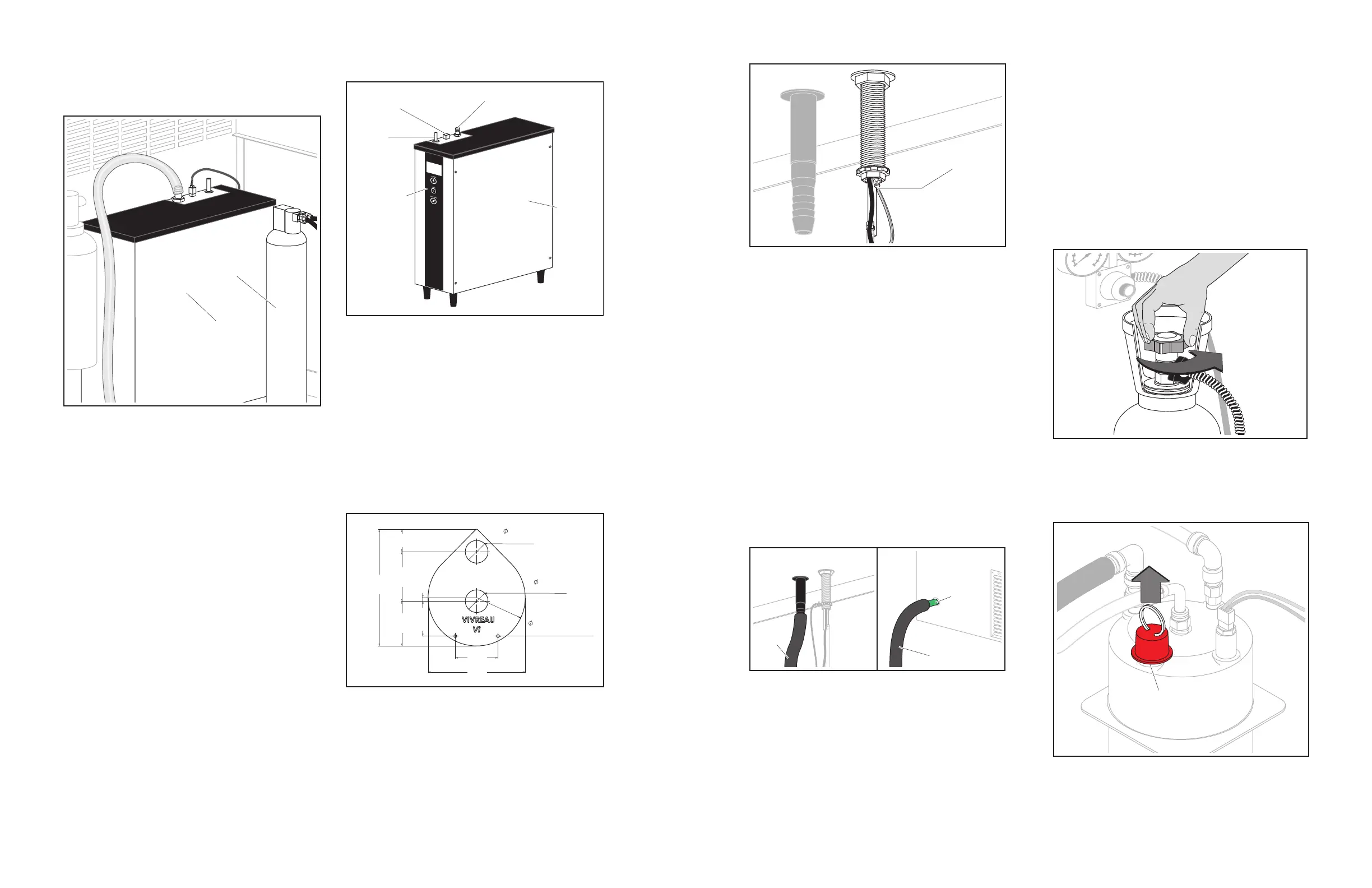

For units with optional Boiler, connect water line to
the Boiler Filter.
Boiler
Boiler
Filter
Connect Boiler Water Supply
Water Supply Pressure Required:
5 – 50 PSI (35-345kPa)
Install a Shutoff Valve on a potable cold water line
to a 1/2” NPT male tting.
Connect straight tailpiece of the Inlet Hose to the
Stop Valve Fitting. Make sure the pre-attached
Sealing Washer is tted.
Flush 2.5 gallons of water through the Filter before
making connection to the Boiler.
BOILER
Service
Panel
Controls
Vent
Wiring Connector Hose Adapter
Boiler
Connect right-angled tailpiece of the hose to the
Inlet Valve of the Boiler. Make sure the seal is in
place.
Turn water ON and check for leaks.
DISPENSING HEAD
The Dispensing Head with Integral Drip Tray is
installed into a countertop directly over the Chiller/
Carbonator and Boiler (if equipped) using the
supplied template.
Tap Hole
Drain Hole
Front
Mounting Holes
C
L
C
L
1
1
/4"
1
1
/4"
R 2
11
/
16
"
3
/16"
x
2 places
2
3
/8"
6
1
/2"
2
3
/4"2
1
/2"
5
3
/8"
1
1
/
4
"
3
/16"
1
15
/16"
Dispensing Head Template
The Dispensing Head and Drip Tray should t ush
to the work surface.
CHECK VALVE VENT
The Check Valve Vent is the green pipe located on
the lower left of the unit.
Water may exit this pipe; especially when the water
supply to the unit is restricted during operation of
the Carbonator Boost Pump. This pipe must be fed
to a suitable area for water drainage to prevent
damage to the shelving and a potential hazard.
OPEN THE CO
2
CYLINDER
Open the CO
2
Cylinder Valve and set gauge
pressure to 65 - 70 PSI.
Opening the CO
2
Cylinder
Vent the Carbonator Bowl for two (2) seconds. To
do this, lift the Relief Valve Loop located on the
Carbonator Bowl.
Carbonator
Relief Valve
Carbonator Relief Valve Location
Install Ground Wire
Install Ground Wire
Install Ground Wire as shown.
Insulate and connect the 5/16” line from the
Dispensing Head to the Chiller/Carbonator using
the supplied ttings.
Connect the Wiring Harness and Ground Wire from
the Dispensing Head to the Chiller/Carbonator.
For Units with Boiler:
Connect hot water line from the Boiler to the
Dispensing Head using the Silicon Tubing and
Clamps supplied.
Connect the Boiler Wiring Harness to the Chiller/
Carbonator.
DRAIN
Connect the Drain Tube from the Drip Tray and the
Check Valve Vent to the customer supplied drain.
To Drain
To
Drain
UNDER COUNTER
FRONT OF
CHILLER/CARBONATOR
Check
Valve
Vent
Drain Tube Connections
To Next Page
