Vizio E322VL User Manual

VIZIO E322VL User Manual
Version 5/25/2010 11
www.VIZIO.com
Attaching the TV Stand
Note: We strongly recommend that two people perform the setup and assembly due to the weight and
size of the TV.
Unpack the TV and stand base:
1. Remove the remote control, batteries, and power cord from the foam end caps.
2. Remove the two top foam end cas.
3. Remove the stand base under foam end cap.
4. Remove the TV from the box and lay it face down on a clean, flat surface.
Note: Make sure that the surface is free of debris to prevent the TV screen from getting scratched.

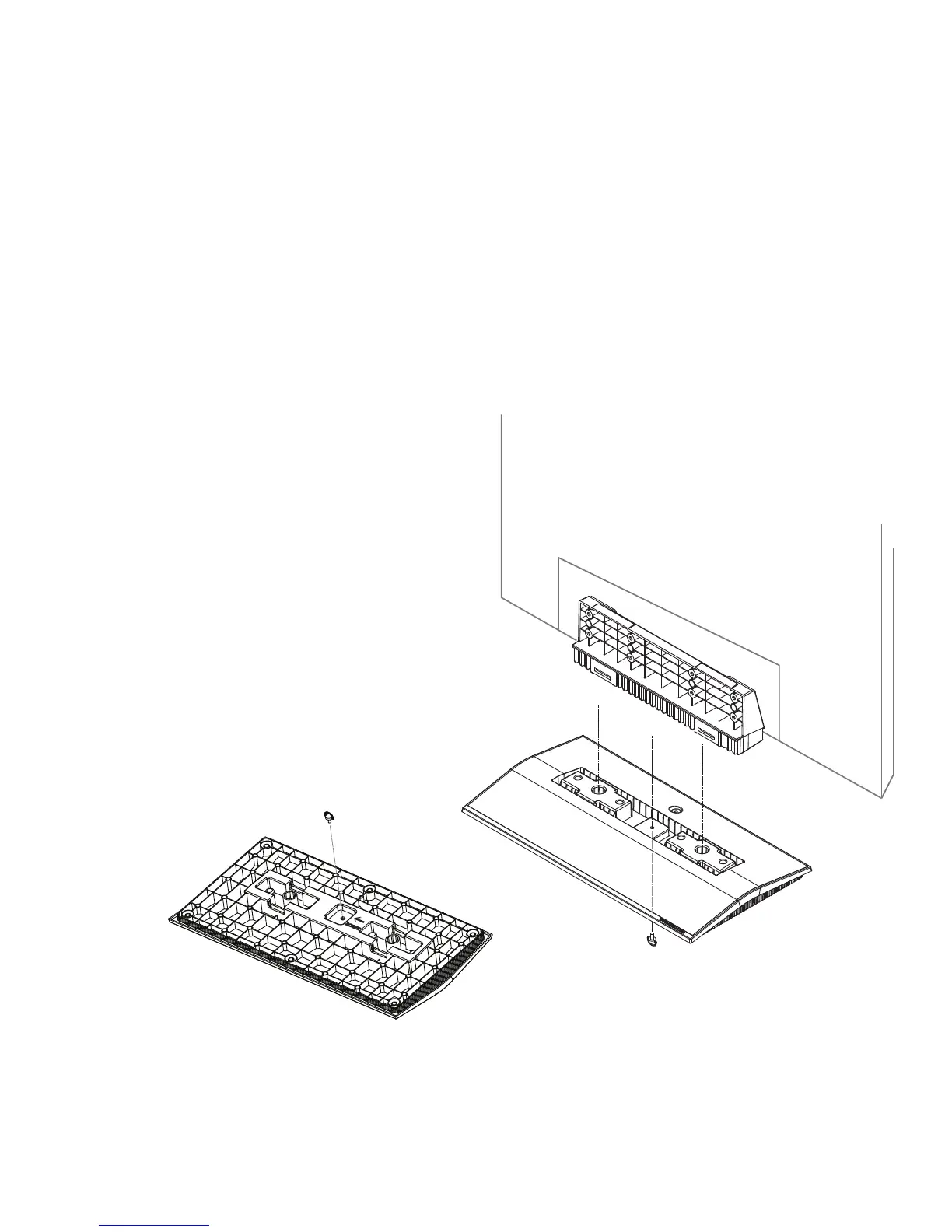

Attach the TV stand base:
1. Push the stand base onto the stand neck (already connected to TV).
2. On the bottom of the base, insert the thumb screw and tighten. Move the TV into an upright
position.
Stand Neck
(already attached
to TV)
Stand Base
Bottom view
Vizio TV
(back)

Vizio E322VL Specifications

General

Response time	8 ms
Display diagonal	32 \
Progressive scan	No
Display brightness	500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Supported video modes	1080i, 480i, 480p
Contrast ratio (dynamic)	50000:1
Display number of colors	1.073 billion colors
Supported graphics resolutions	1024 x 768 (XGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Certification	CSA, CSA-US, FCC Class B
HDCP	Yes
RF ports quantity	1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Sustainability certificates	ENERGY STAR
Product color	Black
Panel mounting interface	200 x 200 mm
Power consumption (typical)	98.39 W
Power consumption (PowerSave)	0.37 W
RMS rated power	10 W
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	210 mm
Width (with stand)	792.23 mm
Height (with stand)	570.2 mm
Weight (with stand)	9020 g
Depth (without stand)	89.4 mm
Height (without stand)	565.9 mm
Weight (without stand)	8500 g
