VIZIO E322VL User Manual
22
www.VIZIO.com

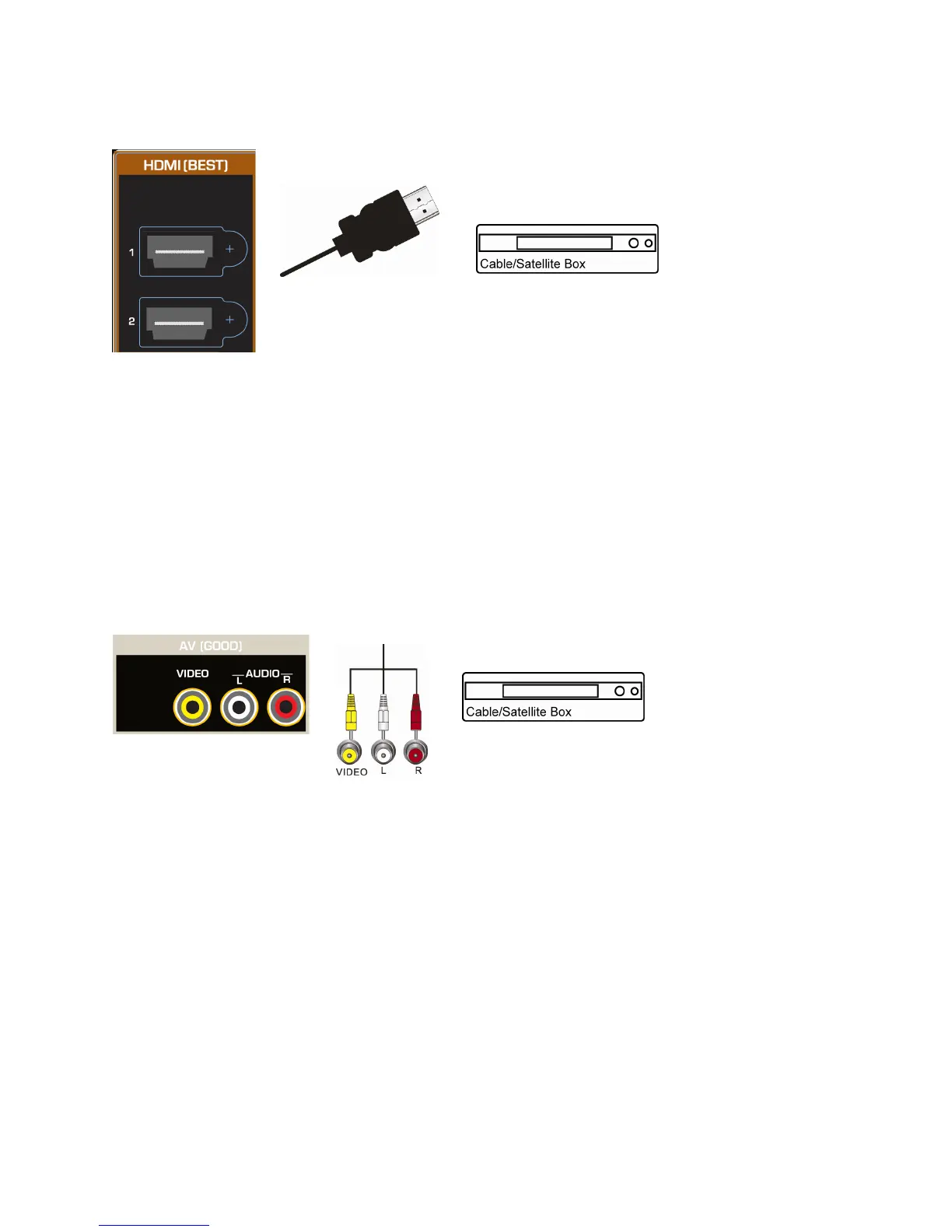

HDMI Connections for Cable or Satellite Boxes with DVI
1. Turn off your HDTV and Cable/Satellite box.
2. Using a HDMI-DVI cable, connect the DVI end to your Cable/Satellite box and the HDMI end to
the HDMI 1 or 2 jack on your HDTV.
3. Turn on the power to your HDTV and your Cable/Satellite box.
4. Select HDMI-1, HDMI-2, or HDMI-SIDE using the INPUT button on the remote control or side of
the TV.
Note: There are no dedicated audio ports for HDMI so there may or may not be audio from the TV with
this connection.
Using Composite Video (Good)
1. Turn off your HDTV and Set Top Box.
2. Connect the video cable (yellow) from your Set Top Box to the AV jack (yellow) on your HDTV.
3. Connect the audio cables (white and red) on your Set Top Box to the AV L and R AUDIO jacks
on your HDTV.
4. Turn on your HDTV and Set Top Box.
5. Select AV using the INPUT button on the remote control or side of the TV.
