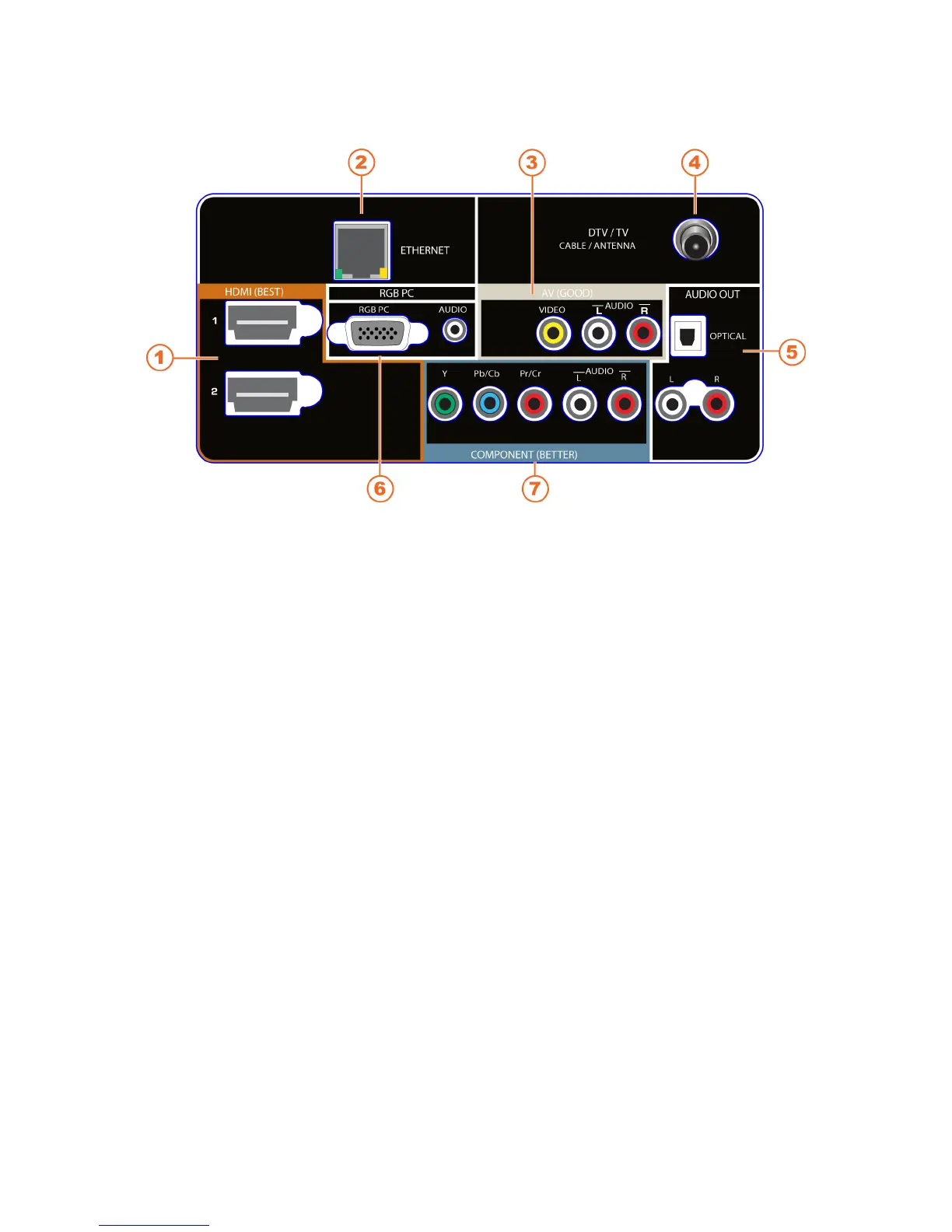

Rear Panel Connections
1. HDMI 1 and 2—Connect digital video devices such as a DVD player or Set-Top Box through this all
digital connector. There is an additional HDMI connector on the side.
2. ETHERNET—Connect an Ethernet cable to access the Internet. Set up the Internet connection using
the initial Setup App or the Network Menu in the HDTV Settings App. Your HDTV also has 802.11n
wireless, so you can connect your TV to the Internet through your wireless home network. See
Network Menu on page 34 for detailed information on setting up your Internet connection.
3. AV—Connect Composite video devices, such as a VCR or game console. Use the white and red
connectors to connect the external audio from the same source.
4. DTV/TV—Connect to an antenna or digital cable source. For digital TV stations in your area visit
www.antennaweb.org. For Cable and Satellite Set Top Boxes, we recommend that you use a HDMI
cable connection for high definition image quality.
5. AUDIO OUT:
OPTICAL—When digital TV is selected for viewing, the audio associated with the programming
will be available on the S/PDIF Optical connector for connection to a VIZIO Sound Bar or your
Home Theater system.
ANALOG L/R—Connect the audio from the HDTV to an external device, such as a Home Theater
System, external amplifier, or stereo. Speakers cannot be connected directly here.
6. RGB PC—Connect the video and audio from a computer here. Connect a 1/8” mini plug stereo
connector from the computer to the TV if you want the sound to come from the HDTV speakers.
7. COMPONENT (Y Pb/Cb Pr/Cr with L/R Audio)—Connect Component video devices such as a DVD
Player or Set Top Box here.
