VIZIO VA26L HDTV10T User Manual
Version 4/23/2010 11
www.VIZIO.com

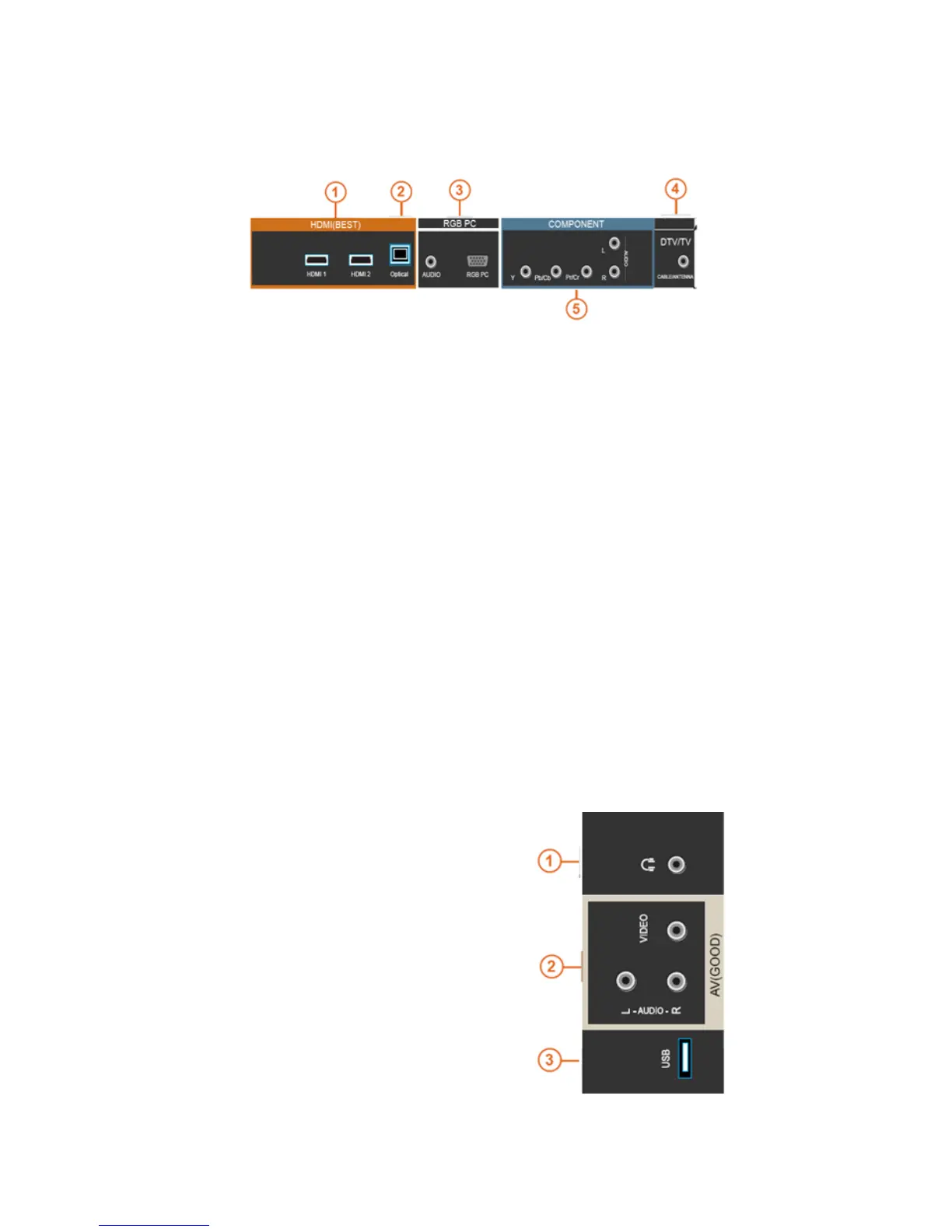

Rear Panel Connections
1. HDMI 1—Connect digital video devices such as a DVD player or Set-Top Box through these all
digital connectors. For users who want to connect to a DVI enabled device, use a DVI-HDMI
cable and connect the analog audio output of the device to the 1/8” stereo jack called AUDIO, a
Y-adapter may be needed.
HDMI 2—Connect another digital video device such as a DVD player or Set-Top Box through
this all digital connector. For users who want to connect to a DVI enabled device, use a DVI-
HDMI cable and connect the analog audio output of the device to the 1/8” stereo jack called
AUDIO, a Y-adapter may be needed. Your VIZIO Certified HDMI-DVI cables are available for
purchase from www.VIZIO.com or by calling 877-MYVIZIO (877-698-4946).
2. SPDIF—(OPTICAL) When digital TV is selected for viewing, the audio associated with the
programming will be available on the SPDIF Optical connector for connection to a VIZIO Sound
Bar or your Home Theater system.
3. RGB PC— Connect the video and audio from a computer here. Connect a 1/8” mini plug stereo
connector from the computer to the TV if you want the sound to come from the HDTV speakers.
4. COMPONENT (Y Pb/Cb Pr/Cr)—Connect component video devices such as a DVD Player or
set top box here.
5. DTV/TV— Connect to an antenna or digital cable source. For digital TV stations in your area
visit www.antennaweb.org. For cable and satellite set-top boxes, we recommend that you use a
HDMI or component cable connection for high definition image quality.
Side Panel Connections
1. HEADPHONES— Connect your personal
headphones here.
2. AV— Connect composite video devices,
such as a VCR or game console. Use the
white and red connectors to connect the
external audio from the same source.
3. USB PORT—Insert a FAT/FAT32 formatted
USB drive to view pictures. This port is also
used for service.
