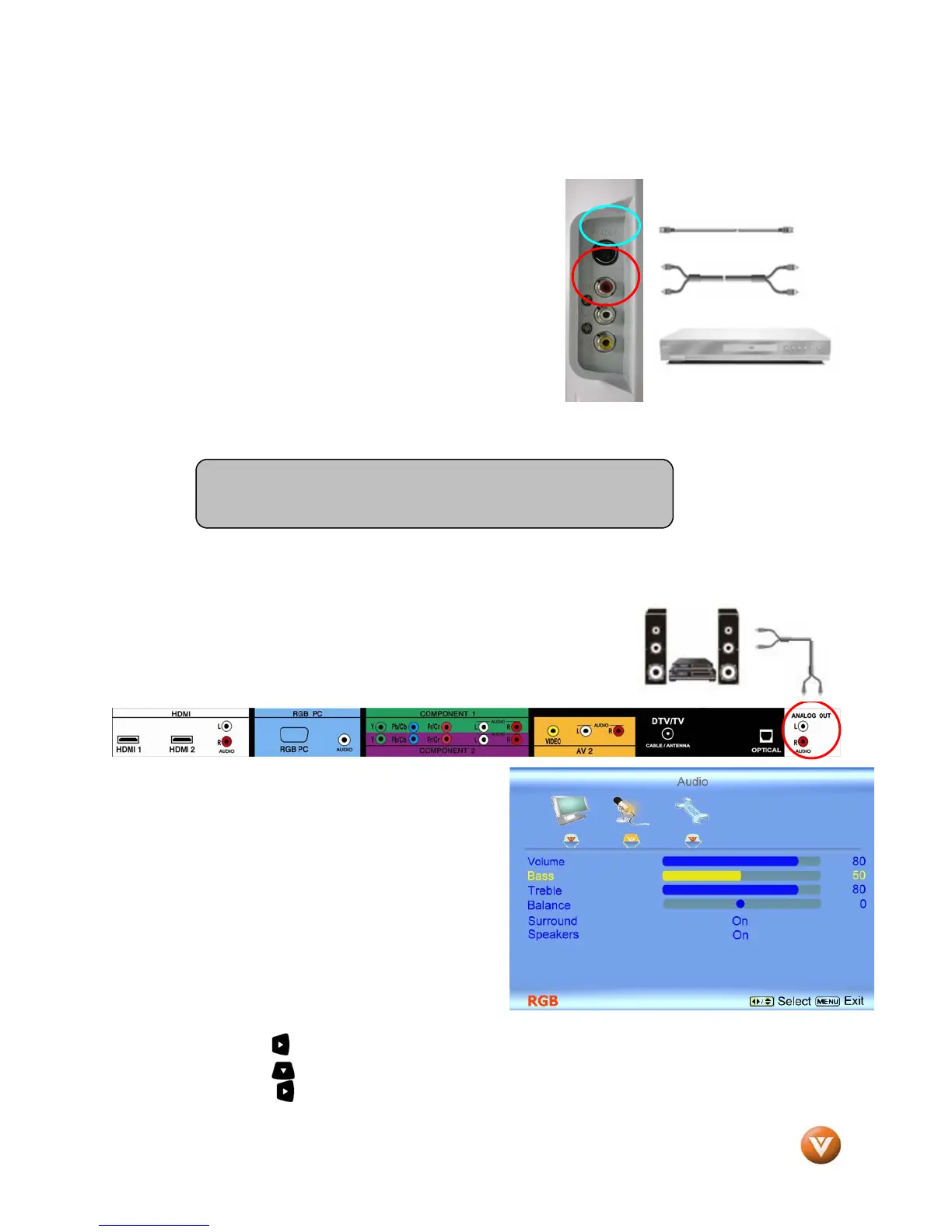

2.6 Connecting Your VCR or Video Camera
1. Turn off the HDTV and VCR or Video Camera.
2. Connect the S-Video jack on the rear of your VCR
or Video Camera to the S-Video jack in the AV1
group on the side of the HDTV.
3. Connect an audio cable (white and red connectors)
cable to the audio output connectors associated
with the S-Video output on your VCR or Video
Camera and connect the other end to the audio
connectors associated with the AV1 input on the
side of the HDTV.
4. Turn on the power to the HDTV and VCR or Video Camera.
5. Select AV1 using the INPUT button on the remote or side of the HDTV, or directly by
pressing the AV button on the Remote Control.
2.7 Connecting an external Receiver/Amp
1. Turn off the power to the LCD HDTV and
Receiver/Amp.
2. Using an audio cable (white and red
connectors), connect the cable to the
audio input connectors on the
Receiver/Amp and connect the other end
to the ANALOG OUT (white area) audio
connectors at the rear of the LCD HDTV.
3. Turn on the power to the LCD HDTV and
Receiver/Amp.
4. Then press the MENU button on the
remote control to open the On-Screen
Display (OSD) menu.
5. Press the on the remote control to select the Audio Adjust menu.
6. Press the on the remote control to select SPEAKERS.
7. Press the on the remote control to select OFF so that the sound from the LCD HDTV will
now be routed through your Receiver/Amp system.
Note: Refer to your VCR or Video Camera user manual for more
information about the video output requirements of the product.
