Settings with regard to the lock type
LOCK
ML
EL
TIME
1S
7S
IMPORTANT
VIZIT
In order to correctly set the lock control logic, unlocked time, and lock supply voltage, the KTM600M PCB has corresponding
jumpers installed:
The jumper determines the door lock control logic:
- position – a strike / lock is released when voltage is switched off.
- position – a strike / lock is released when voltage is switched on.
The jumper the unlocked state duration (1 or 7 seconds):
- position - unlocked state duration is 1 second.
- position - unlocked state duration is 7 seconds.
Some models of electric strikes and solenoid locks are provided with an integrated damper diode to eliminate pulse noise
after current off. If this is the case, the strike / lock has polar wiring.

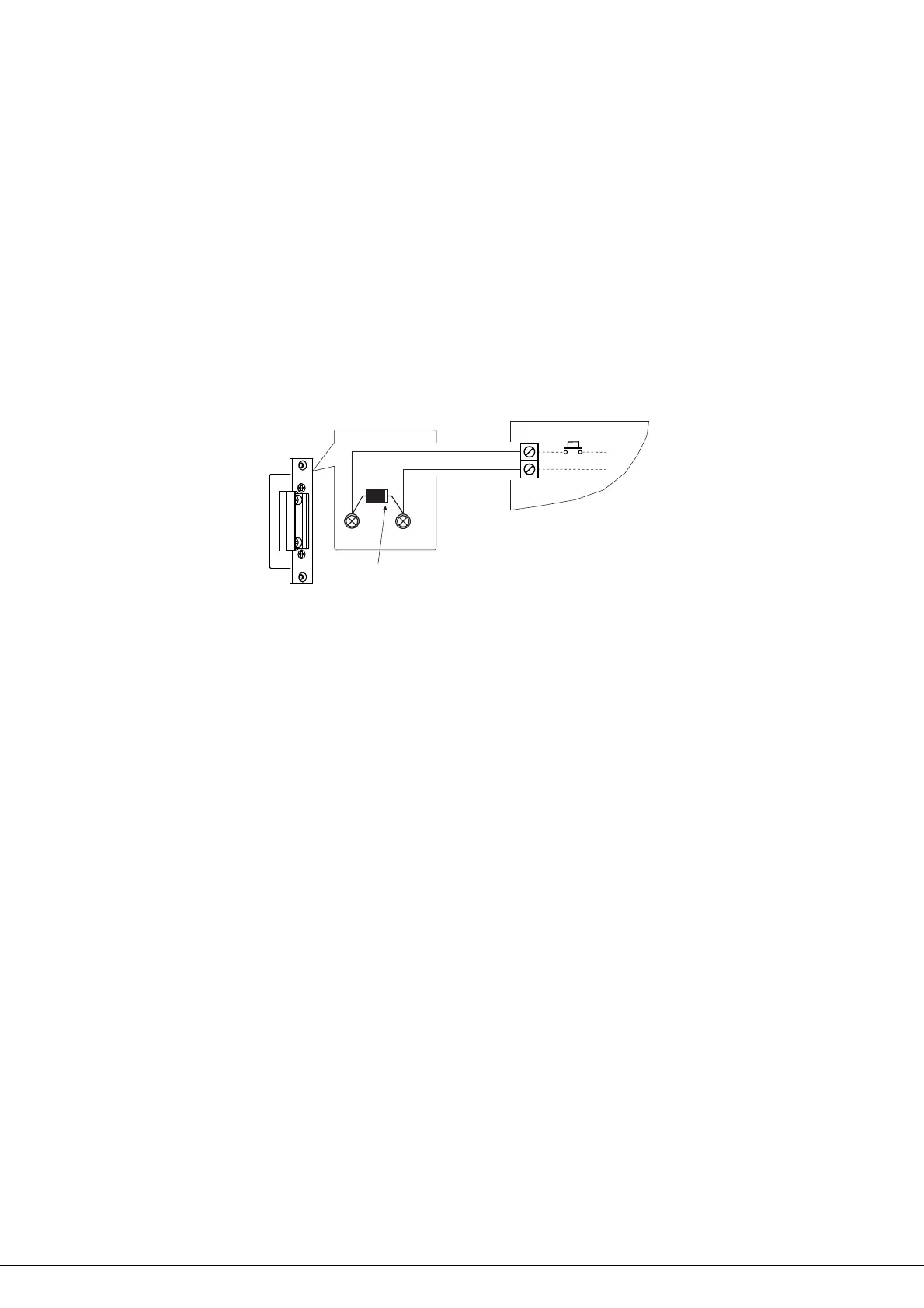

If an electric strike or solenoid lock does not contain a damper diode, then connect a damper diode to the strike / lock's
terminals observing polarity, as shown in the picture below.
Do not connect a damper diode to electromagnetic locks , for they contain a built in degaussing module to eliminate
pulse noise.
determines
To provide power for the RF controller VIZIT-KTM600F and door lock, a power supply unit with output voltage 12 VDC to
18VDC and with rated current up to 1 A is recommended. Correct choice of a power supply unit depends on operating
voltage and current consumption parameters of the lock used in the system, as well as on the distance between a power
supply unit and the lock.
To provide power for an electromagnetic lock VIZIT, the power supply unit BPD18/12-1-1 or may
be used
When selecting a power supply unit for a particular model of electromechanical lock / strike, please consult qualified
personnel.
.
-
SELECTION OF POWER SUPPLY UNIT
Note. Do not use AC power adaptors.
19w/14.4v/EU(12V/1.5A)
.
Diode
1N4007
A white stripe on the case
indicates the diode’s cathode
+DL
-DL
+
-
Control Unit KTM600M
