5.5 Auxiliary Air Receiver
If you intend to use an auxiliary air receiver with this
system you must observe the following installation
procedure to prevent damage to the system.
The line from the VMAC tank to the auxiliary air receiver must have a
one-way check valve installed (part #3600078) to prevent blow back
from the auxiliary tank to stop moisture from entering the VMAC tank
(Figure 5.4).
The line to the auxiliary tank must not be installed in the bottom of
the tank, but must be installed as high as possible to prevent water
from entering the line.
Install the line as high as
possible, NOT on the
bottom of the auxiliar
tank
VR Tank
One-way check valve
Auxiliary Tank

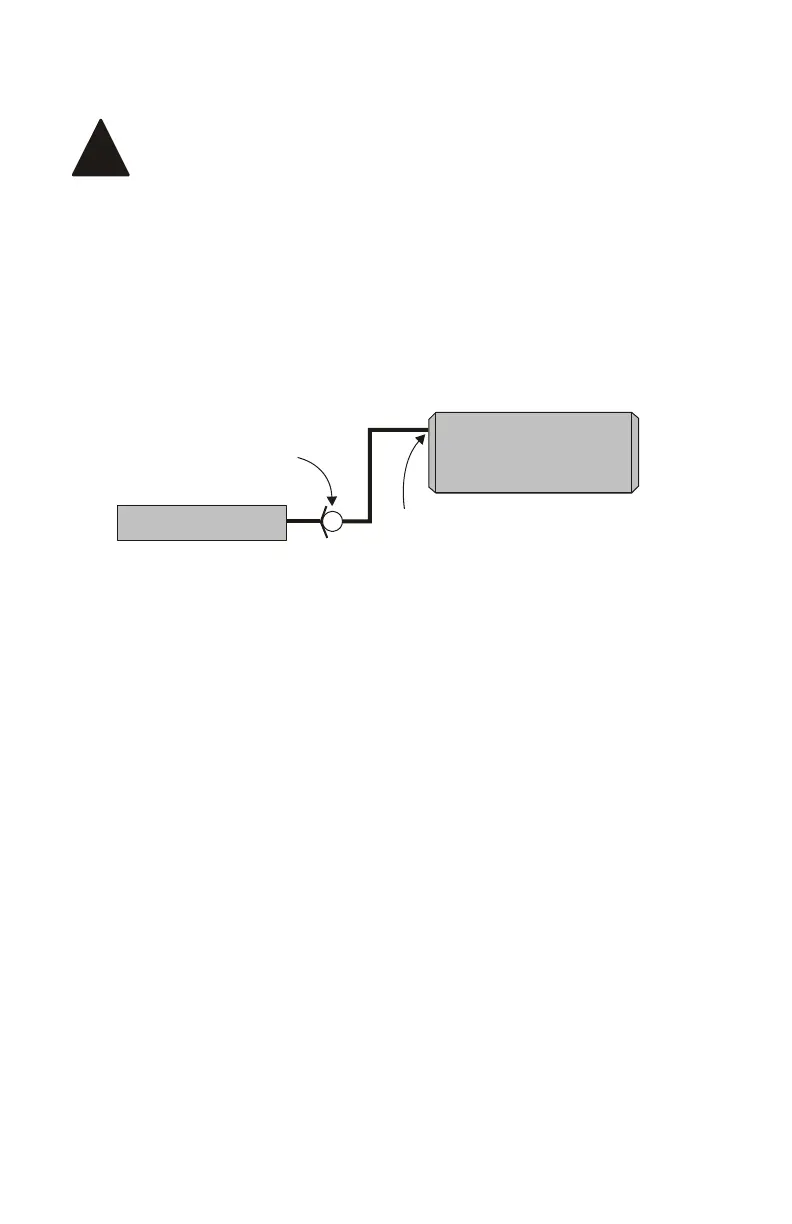

Figure 5.4
!
