7
Cross-member
bolts
7”
23”
6”

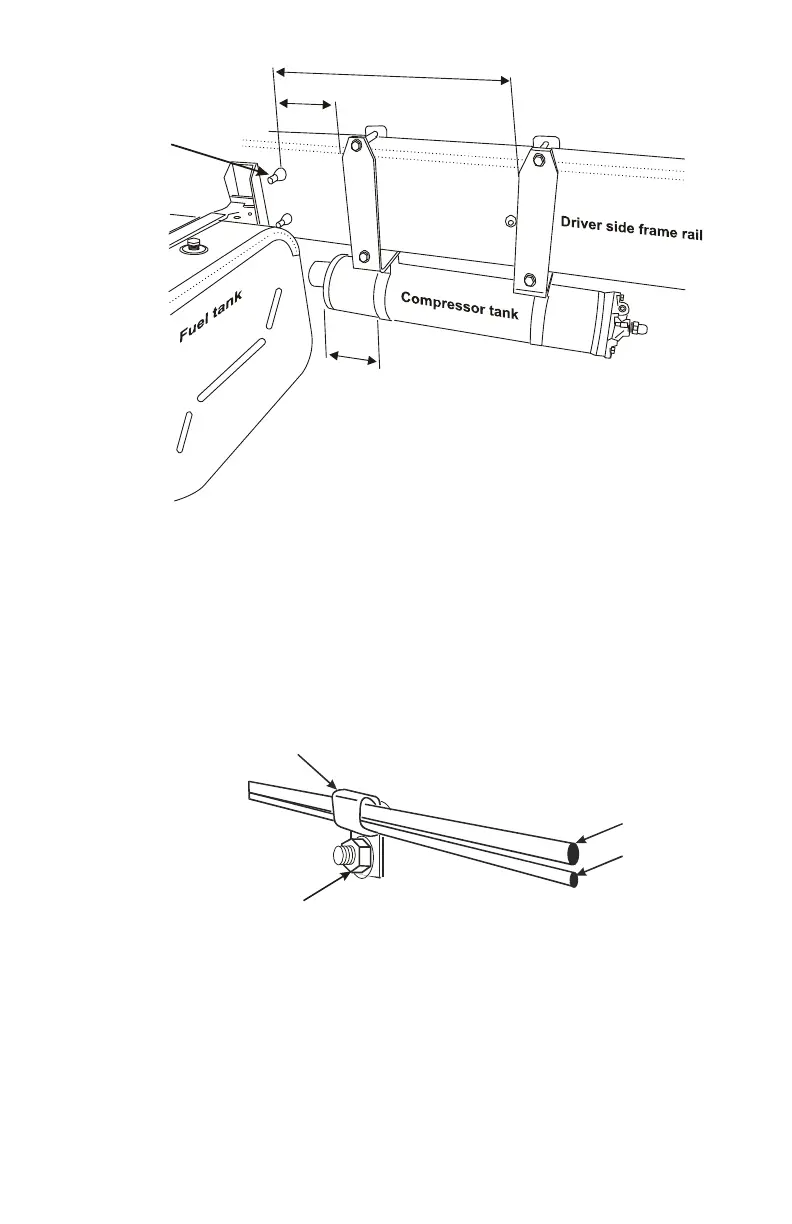

Figure 2.1
□ Install the 1/4 and 5/16 inch steel lines, complete with hoses, into
the matching fittings on the back of the tank, but do not tighten
the fittings.
□ Remove the two inner C-clamp bolts, place two double-tube
insulated clamps over the tubes and fasten them in place along
with the inside of the C-clamps (Figure 2.2).
5/16" tub
e
1/4" tube
I
nsu
l
ate
d
d
ou
bl
e tu
b
e c
l
amp
5/16" bolt, washer and nut
Figure 2.2
□ Tighten all bolts
□ Tighten the steel tube fittings on the back of the tank
