16. Fixing piece for hook: at the back of the fixing
piece, the fixing can be extended from the socket by
pressing downwards. When the handlebar is tilted
downwards and the fixing piece is raised at the same
time, the hook engages so that the e-scooter can be
lifted in the folded state.
ATTENTION: As soon as the e-scooter is parked and
no resistance is exerted on the handlebar by lifting,
the handlebar disengages again.
4544
VX4 User manual V1.0VX4 User manual V1.0
ENGLISH
MOUNTINGDESCRIPTION OF THE PARTS
Step 1
Remove the e-scooter from the packaging and
check whether all parts of the scope of delivery
(page 34) are included. Now adjust the stand so
that the e-scooter stands on its own.
Step 2
Now fold the handlebar upwards so that the fol-
ding mechanism engages.
Step 3
Now tighten the four included screws so that the
steering head and the handlebar are fixed. Your de-
vice is now fully assembled.
Folding
To fold the e-scooter back together, lift the red sa-
fety catch and pull the folding lever The handlebar
can now be moved backward / downwards. Now
engage the hook in the fixing piece for the hook.

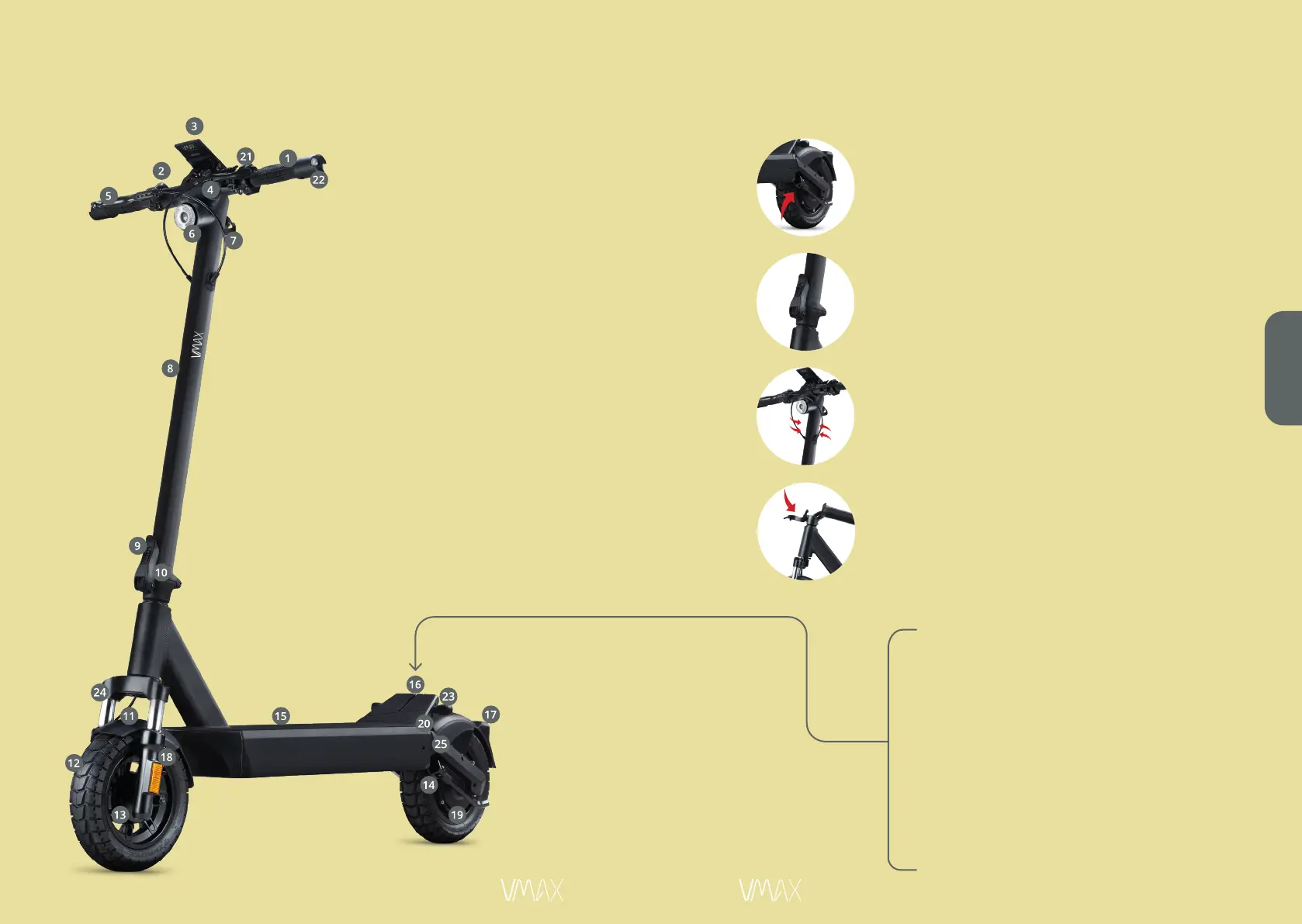

1. Grips
2. Accelerator
3. Display
4. Break lever left
5. Break lever right
6. Front light
7. Hook
8. Handlebar
9. Safety lock
10. Folding lever
11. Front fender
12. Front wheel
13. Drum break
14. Stand
15. Footboard
16. Fixation piece for hook
17. Rear/brake light
18. Side reflectors
19. Rear wheel (motor)
20. Charging socket
21. Turn signal switch
22. Turn signal front
23. Turn signal rear
24. Front suspension
25. Rear suspension
