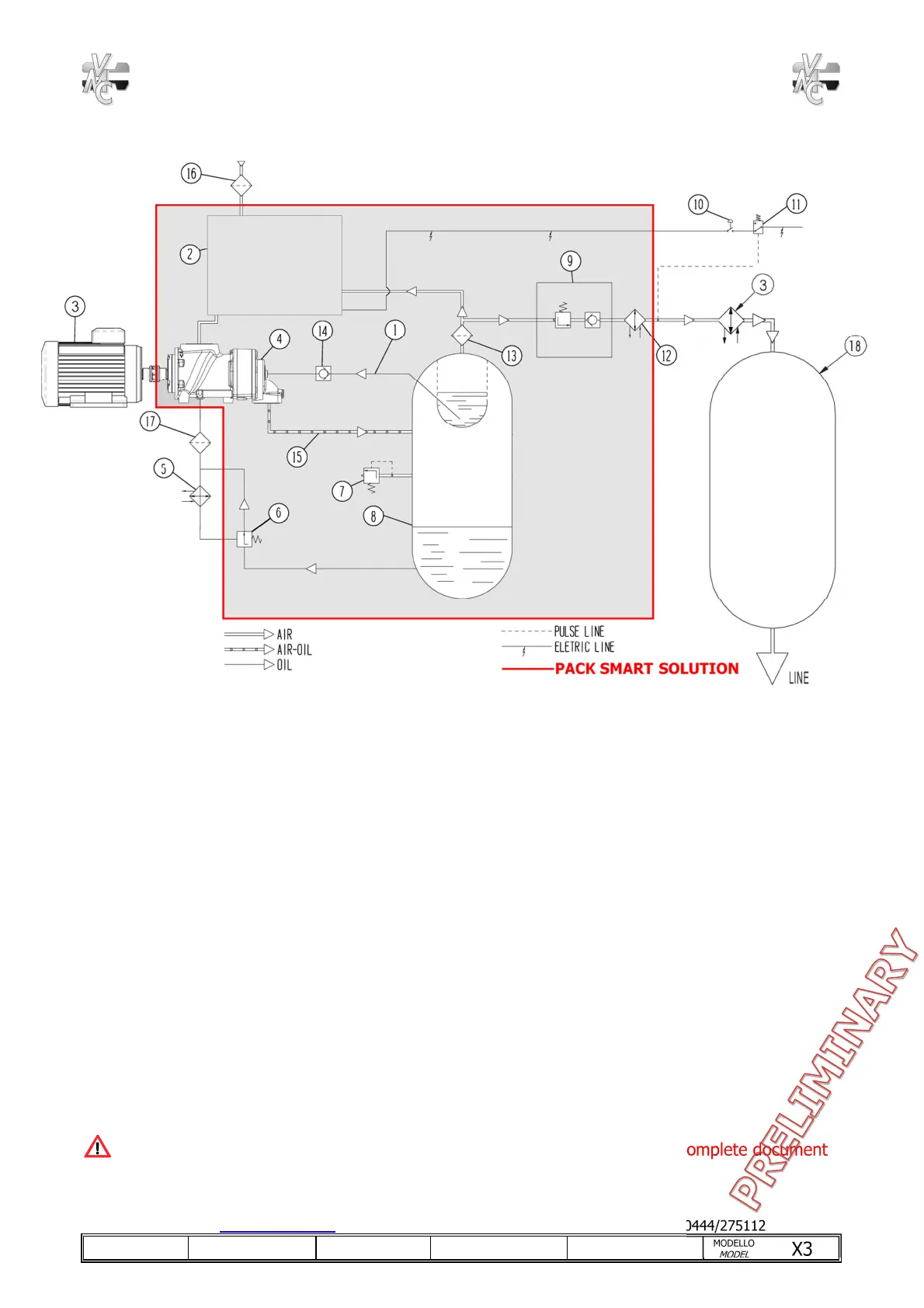

3 ELECTRO-PNEUMATIC CIRCUIT SCHEME
1 - Oil return from separator
2 - Intake valve*
4 - Screw air-end V110
5 - Oil cooler
6 - Thermostatic valve
7 - Safety valve
8 - Air/oil separator tank
9 - Minimum pressure valve
10 - Switch load/no load (only for electric version)
11 - Pressure switch controller (only for electric version)
12 - Air cooler
13 - Separator Filter
14 - VMC recovery oil viewer
15 - Air/oil pipe from air end to separator tank
16 - Air filter
17 - Oil filter
WARNING!
*
For the electro-pneumatic connection of the intake valve, consult the complete document
dedicate, available on demand.
