5.1 PACK SMART-MOTOR CONNECTION

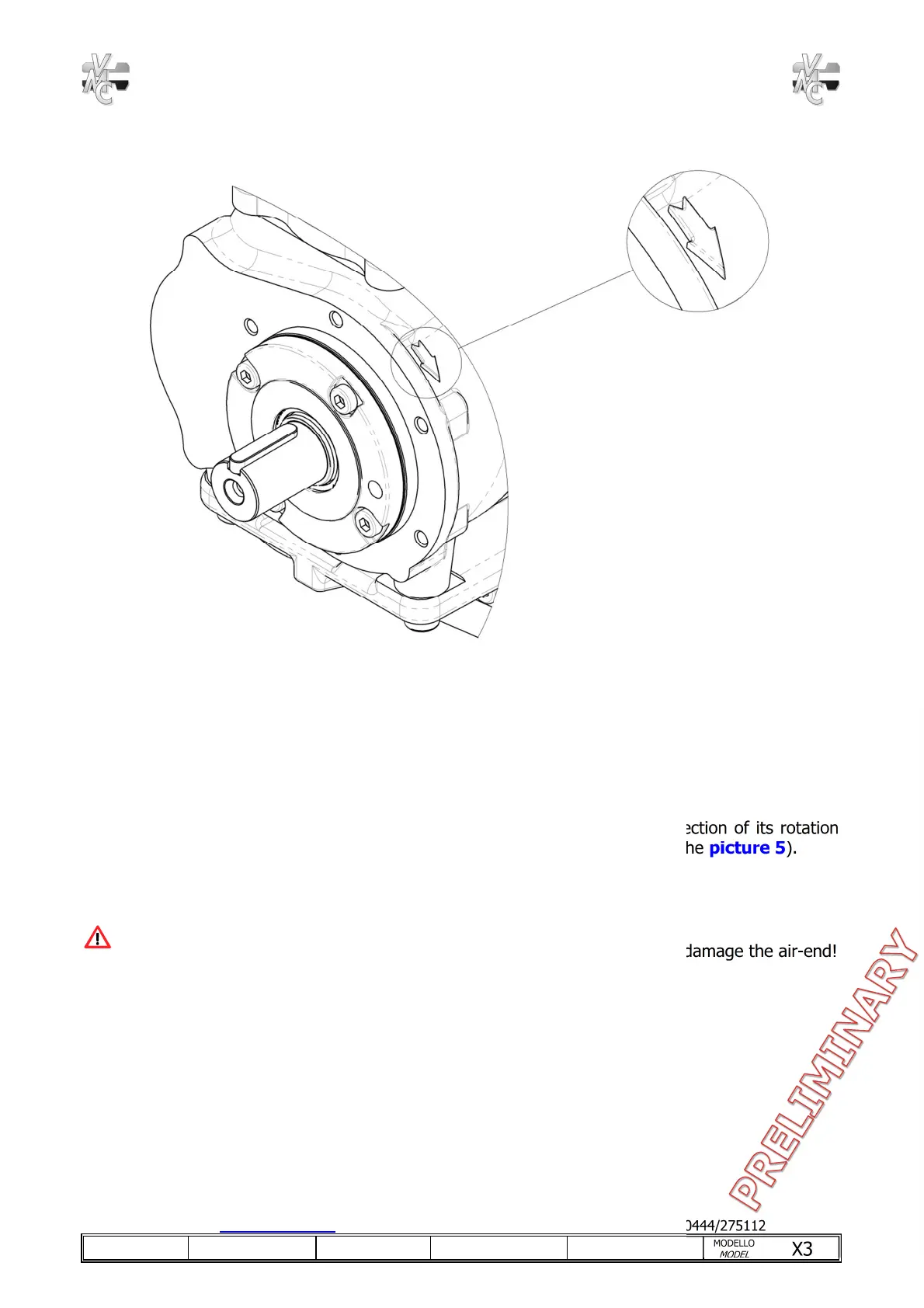

Picture 5
After connecting the electrical motor to the air-end, please check that the direction of its rotation
corresponds to the one indicated by the arrow on the body of the air-end (see the picture 5).
WARNING!
The rotation of the shaft the other way round from the one indicated can damage the air-end!
