Whenever necessary, clean and lubricate the tip of the air-end shaft. Do not include the separator
in this operation, otherwise you may damage it.
Make sure that the compressor is accurately fixed to the machine base through the use of special
fixing holes, as Picture 4 shows.
In case the integrated system has to be varnished, please avoid any contact with solvents or
varnishes, protecting nameplate, gaskets, intake holes, external threads and all seal surfaces.
WARNING: Use fittings with a cylinder GAS threading. The use of fittings with a taper GAS
threading may damage the Pack Smart.

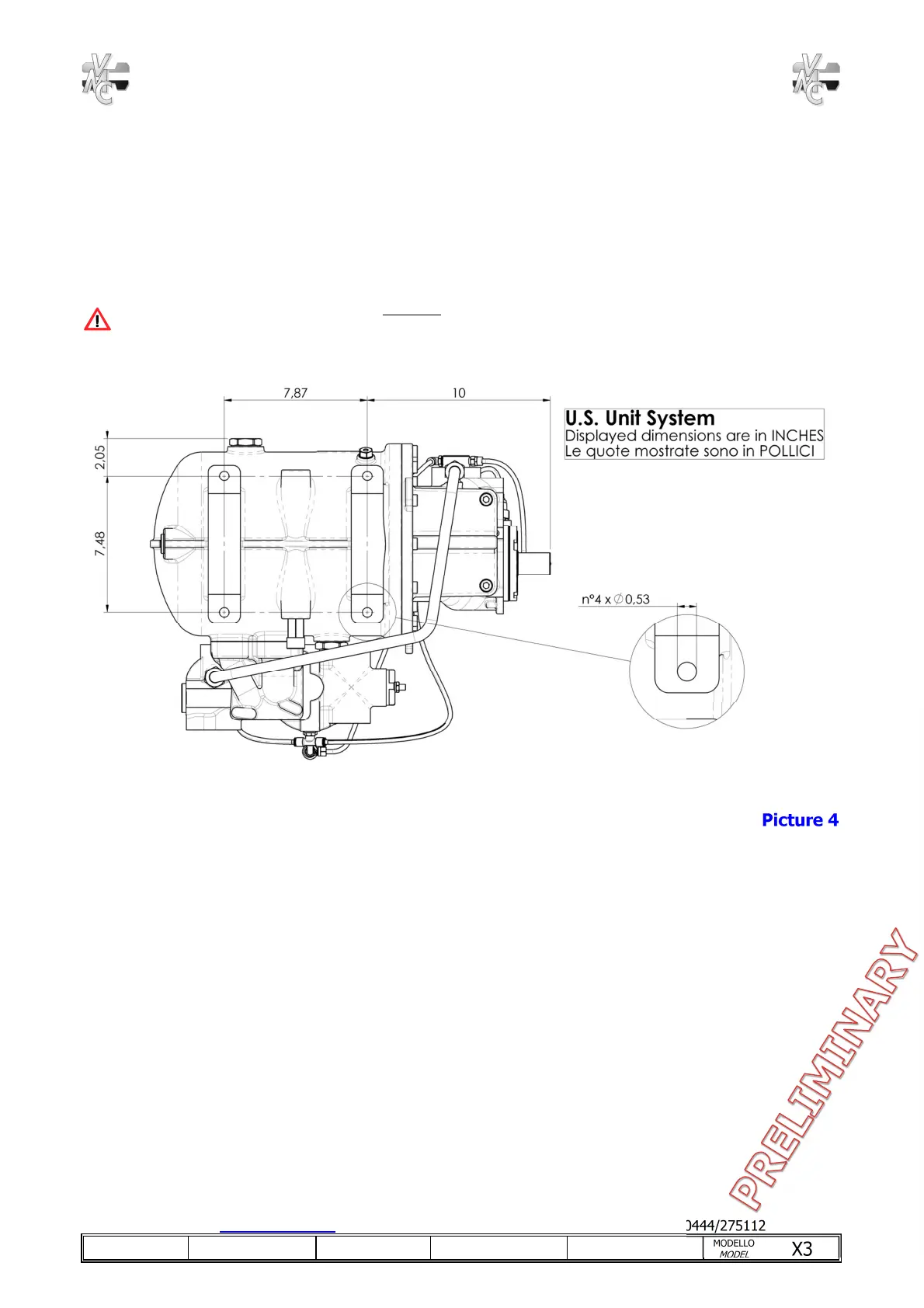

Picture 4
