5 PACK SMART INSTALLATION
When you install a Pack Smart, please check that the intake valve is not clogged by unknown
particles. Inspect all the Pack Smart cables: they have to be linked as picture 3 shows, so as to
avoid air/oil outflows into the environment.
WARNING: a correct heat flow must be guaranteed with a proper radiator setting. You
should reduce to the minimum the cooler inside volume in order to avoid damaging oil flows
in the tank.

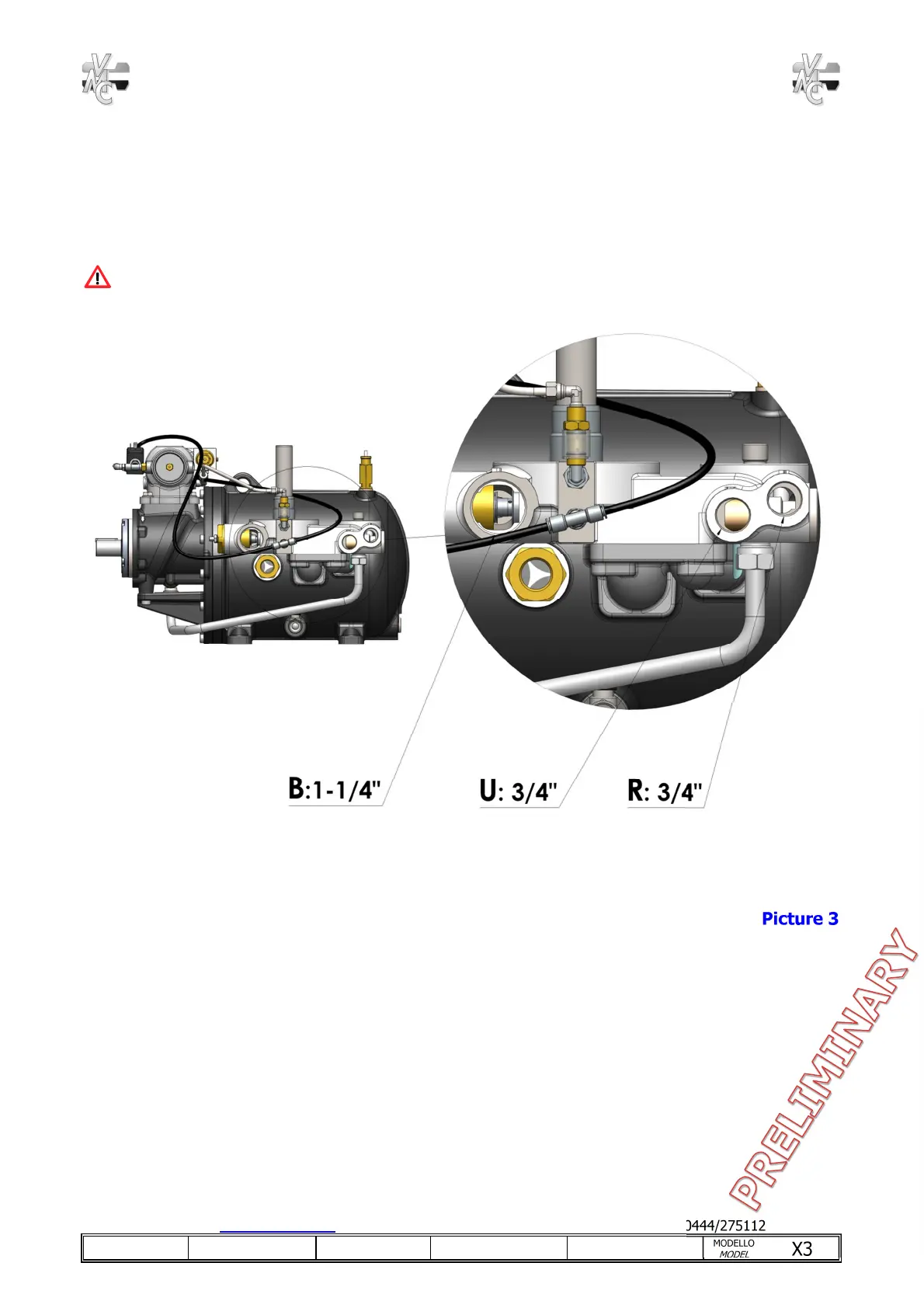

Picture 3
R= oil return from cooler (cold oil)
U= oil inlet to the cooler (hot oil)
B= oil inlet to cooler (air side)
