Vogt MD Series User Manual

7
Equipment
Description
Equipment Description





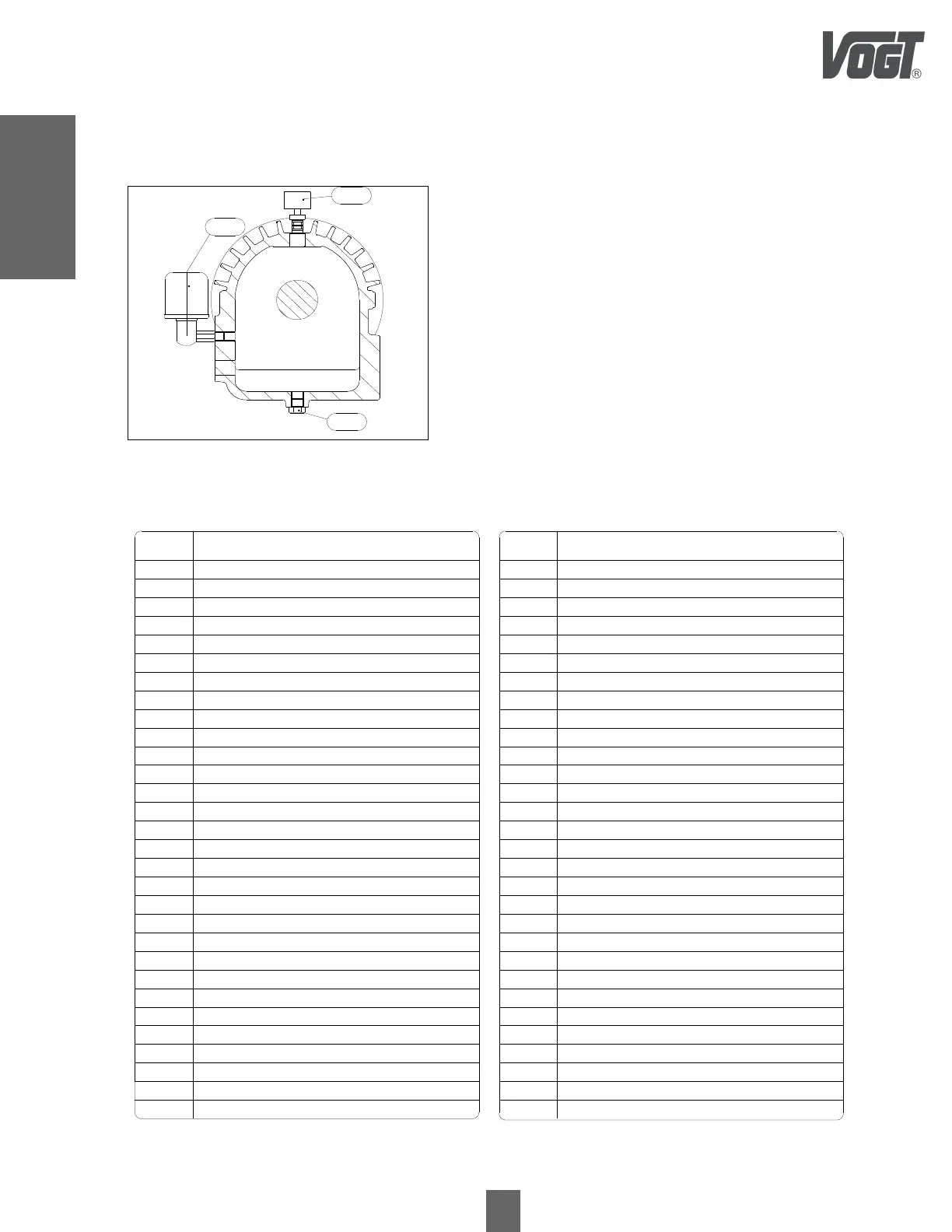

Figure 4 - Bearing Body Sectional
DenominationDenomination
24.08
Seegers Insurance
20.07
Packing Cover Body Body Bearing
21.03
Oil Seal Body Cover Bearing
38.01
Pump Side Water Cutter Disc
19.20
O'Ring Disc Water Cutter Pump Side
18.09
Shaft Sleeve
19.19
O'Ring Shaft / Shaft Liner
26.01
Asparagus Stamp Holder Box
28.02
Seal Holder Flange Fixing Nut
29.07
Flat Washer Seal Fixing
29.01
Lock Washer Seal Fixing Seal
15.08
Flange Seal
20.05
Packing Flange Seal
19.14
O'Ring Pump Body Cover - Pump Body
11.07
Mechanical Seal
30.02
Pump Body Drain Plug
19.17
O'Ring Impeller / Shaft Nut
19.18
O'Ring Impeller / Shaft Sleeve
28.01
Shaft Nut
10.06
Drag Pin
44.02
Pump Body Cover Wear Ring
44.01
Wear Ring Pump Body
10.09
Wear Ring Fastening Pin
1
Impeller
28.16
Pump Cover - Union Body Fixing Nut
29.08
Pump Cover Pressure Washer - Union Body
26.08
Pump Cover Fixing Screw - Union Body
29.09
Flat Washer Pump Cover Fixation - Union Body
30.01
Priming Plug Pump Body
32
Oil Level Maintainer
2
Pump Body
30.09
Pressure Gauge Connection Plug
25.01
Union Body - Pump Body Bolt
41
Pump Body Cover
3
Union Body
25.03
Suction Side Bearing Body Cover Bolt
25.02
Union Body Bolt - Bearing Body
45
Heading eyebolt
5.01
Suction Side Bearing Body Cover
9.01
Pump Side Bearing
4
Body Bearing
30.07
Body Vent Plug Bearing
42.01
Bearing Housing
9.02
Motor Side Bearing
19.05
O'Ring Bearing Housing - Bearing body
25.23
Bearing housing bolt - Bearing body
19.16
O'Ring Bearing Housing Cover
25.25
Bearing Housing Cover Fixing Bolt
43
Bearing Housing Cover
38.02
Water Cutting Disc Motor Side
19.21
O'Ring Water Cutting Disc Motor Side
7
Axis
10.02
Taps
21.04
Oil Seal Cover Bearing Housing Cover
28.08
Tap Side Bearing Fixing Nut
25.04
Leg Fixing Bolt Bearing Body
29.02
Thrust washer Foot mounting Bearing housing
29.03
Flat Washer Fixing Leg Body Bearing
6.01
Leg Body Bearing
30.08
Drain Plug Bearing Body
Item
3.3.2 MD-MDE Series Centrifugal Pump Parts and Pieces Description
Table 1 : Description of parts and pieces MD-MDE Series
