Vogt VT40 Service Manual

4-2 Vogt
®
VT Service Manual
Initial Startup
FIGURE 4-2

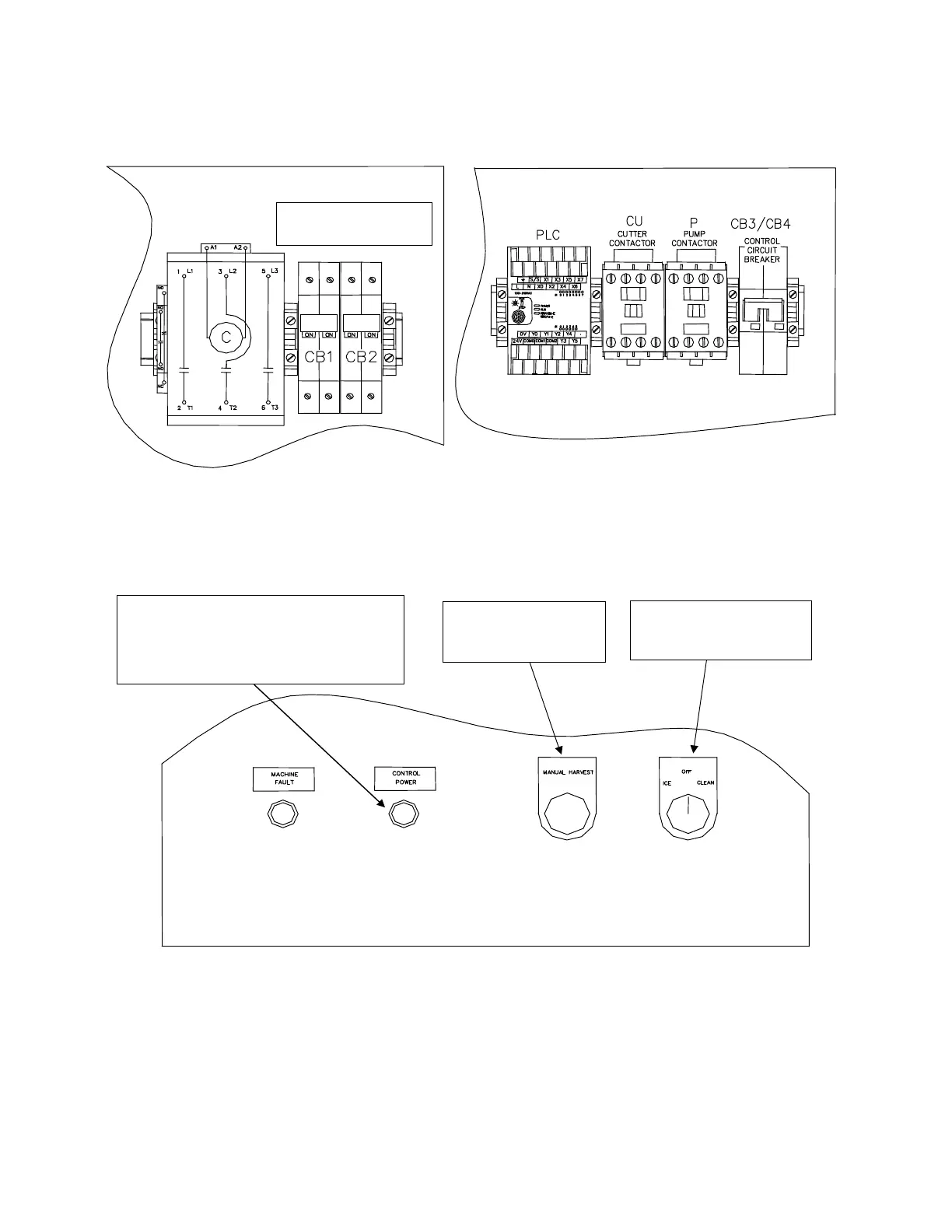

Circuit Breakers (200/230V machines)
FIGURE 4-3
Lowside Control Panel Front
Selector Switch
“Ice / Off / Clean”
Manual Harvest
(Start)
Lowside unit control panel
Condensing unit control panel
10 A
15 A
CB1 - Lowside
CB2
-
Condenser
Fans
Control Circuit Power Light
Light will be “on” if power is being
supplied from the Highside
