5-10 Vogt
®
VT Service Manual
Electrical Controls
Condensing Unit Control Panel Parts
C 12A7516E29 VT40 Compressor Contactor, 43Amp
12A7516E30 VT60/80/100 Compressor Contactor, 72Amp
12A7518E30 Auxiliary Contact, 1 N.O./1 N.C.
CB1 12A7515E18 Lowside Circuit Breaker, 2 pole (10Amp)
CB2 12A7515E19 AC Fan motors Circuit Breaker, 2 pole (15Amp)
TB N/A Terminal Block

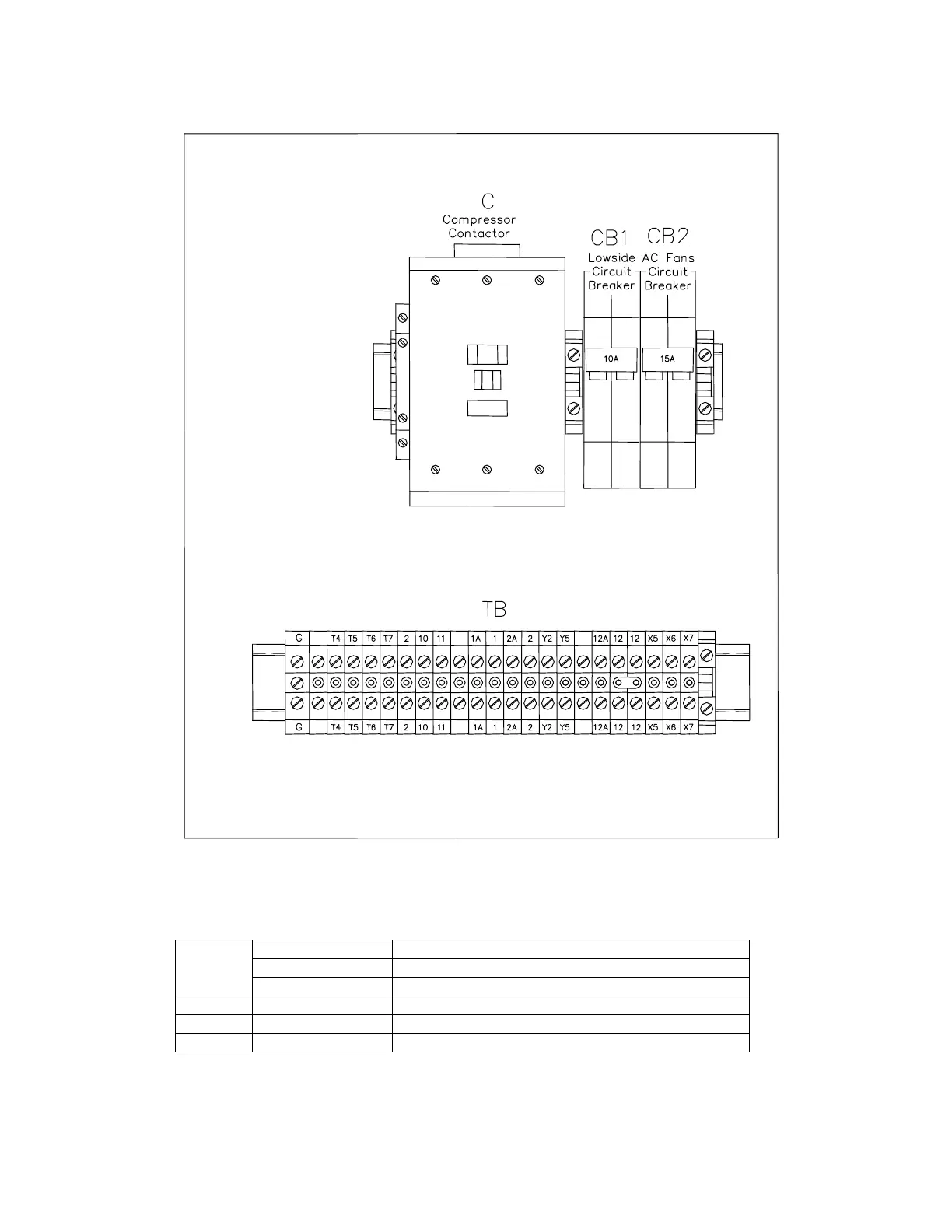

FIGURE 5-8A
Standard 208-240V Condensing Unit Control Panel (Air Cooled)
