Vogt
®
VT Service Manual 5-11
Electrical Controls

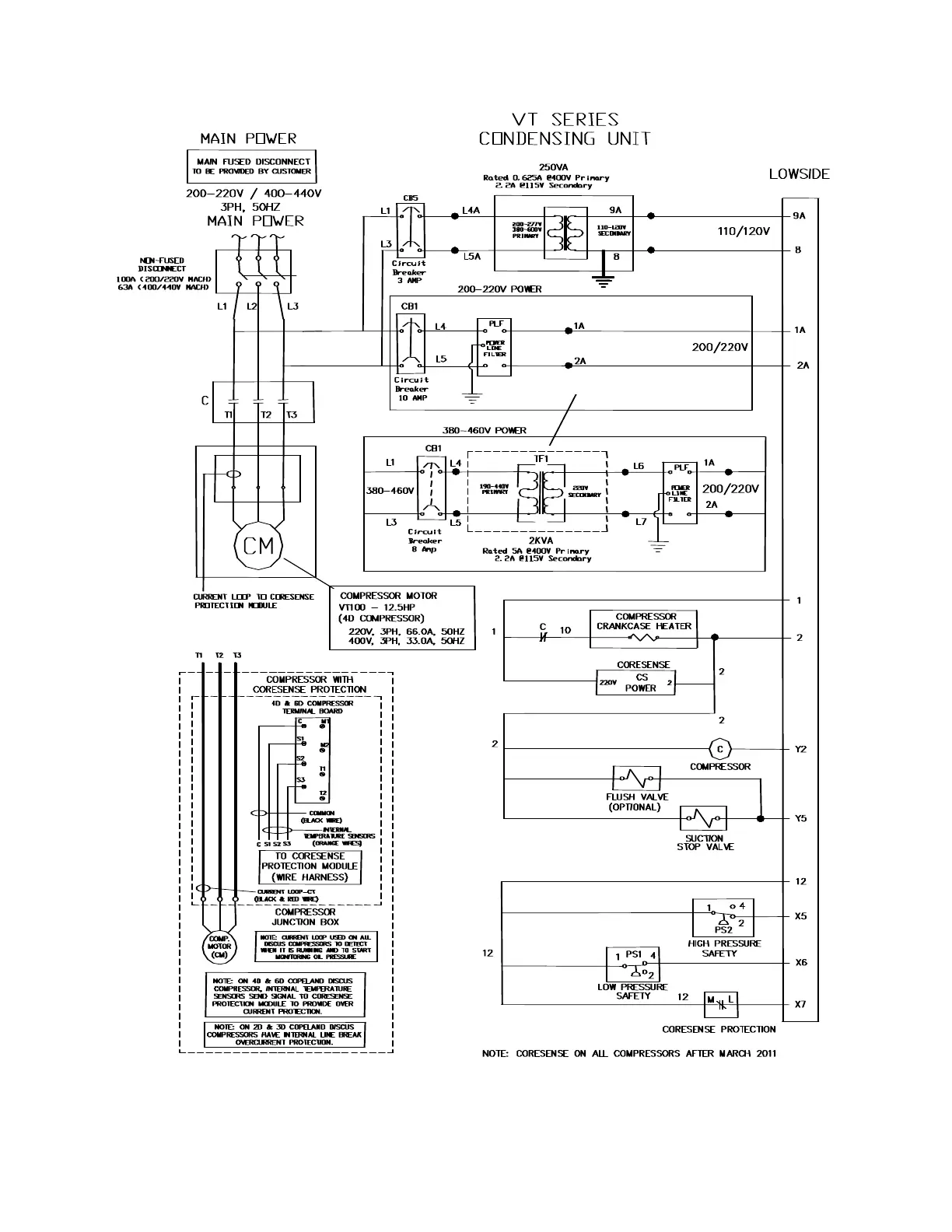

FIGURE 5-9
CE Rated VT100, 200-220V/400-440V Condensing Schematic (Water Cooled)
