5-12 Vogt
®
VT Service Manual
Electrical Controls

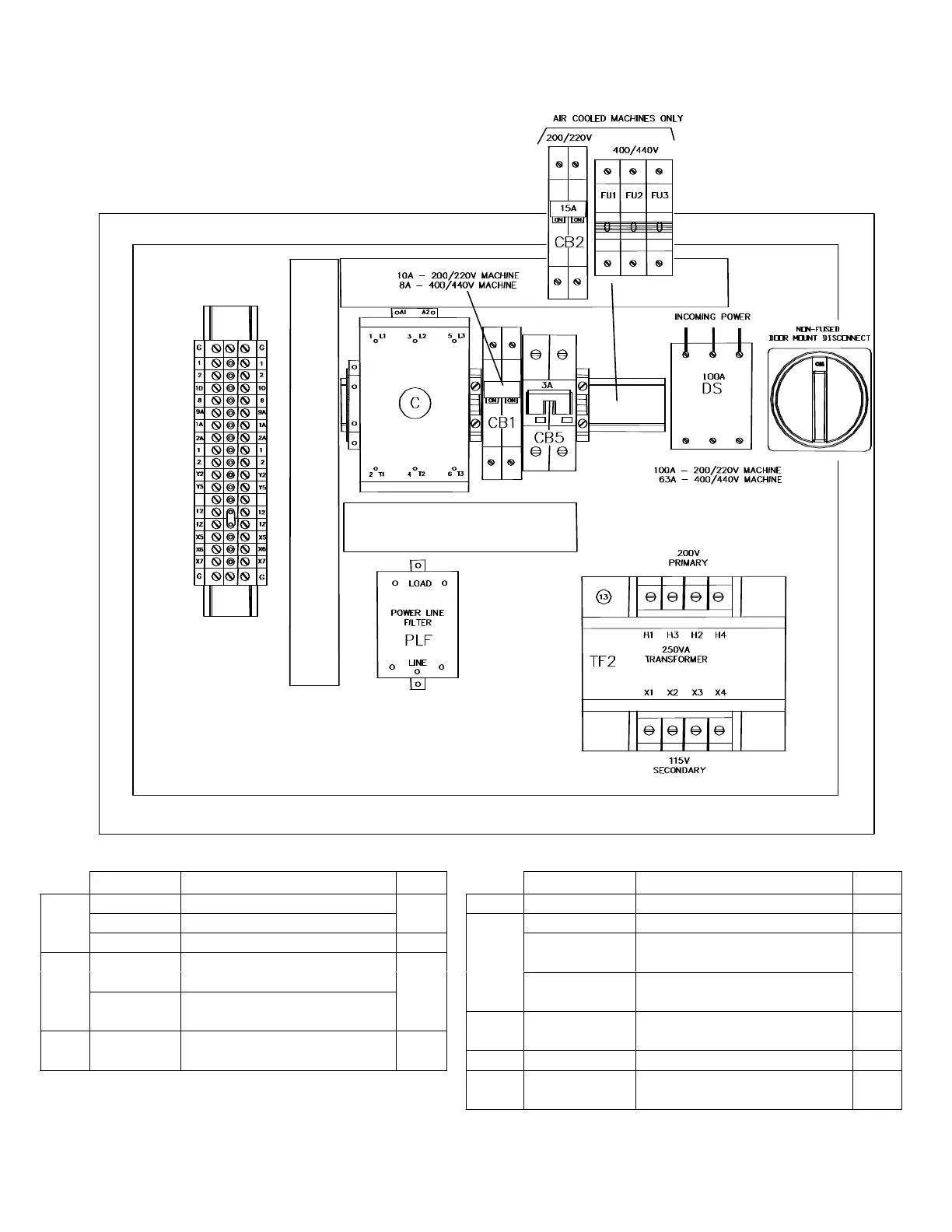

FIGURE 5-9A
CE Rated VT100, 200-220V/400-440V Condensing Unit Control Panel (Water Cooled)
PART # DESCRIPTION QTY PART # DESCRIPTION QTY
C 12A7516E29 CONTACTOR, 3 POLE, 43A 1 CB5 12A7515E21 CIRCUIT BREAKER, 2 POLE 1
12A7516E30 CONTACTOR, 3 POLE, 72A * DS 12A2790H07 DISCONNECT HANDLE 1
12A7518E30 AUX CONTACT, 1 NO/1 NC 1 12A2790D07 DISCONNECT, 63A, DOOR MNT 1
CB1 12A7515E18 CIRCUIT BREAKER, 10A, 2 POLE, 1 (400/440V MACH)
(200/220V MACH) 12A2790D11 DISCONNECT, 100A, DOOR MNT
12A7515E35 CIRCUIT BREAKER, 8A, 2 POLE, (200/220V MACH)
(400/440V MACH) FU1- 12A7504E12 FUSE, 10A, 600V, TD, CLASS CC 3
CB2 12A7515E19 CIRCUIT BREAKER, 10A, 2 POLE, 1 FU3 (AC, 400/440V ONLY)
(AC, 200/220V MACH) * PLF 12A7527S06 POWER LINE FILTER, 10A 1
* NOTE: CE UNITS ONLY * TF2 12A7519E38CE TRANS, 250VA, 200/400VAC PRI, 1
120VAC SEC
To Next Page
