Void Nexus Series - Amplifier Loading Guidelines

Page 10
UG10578-2.0 - Nexus XL User Guide V2.0
4 Cable and Wiring

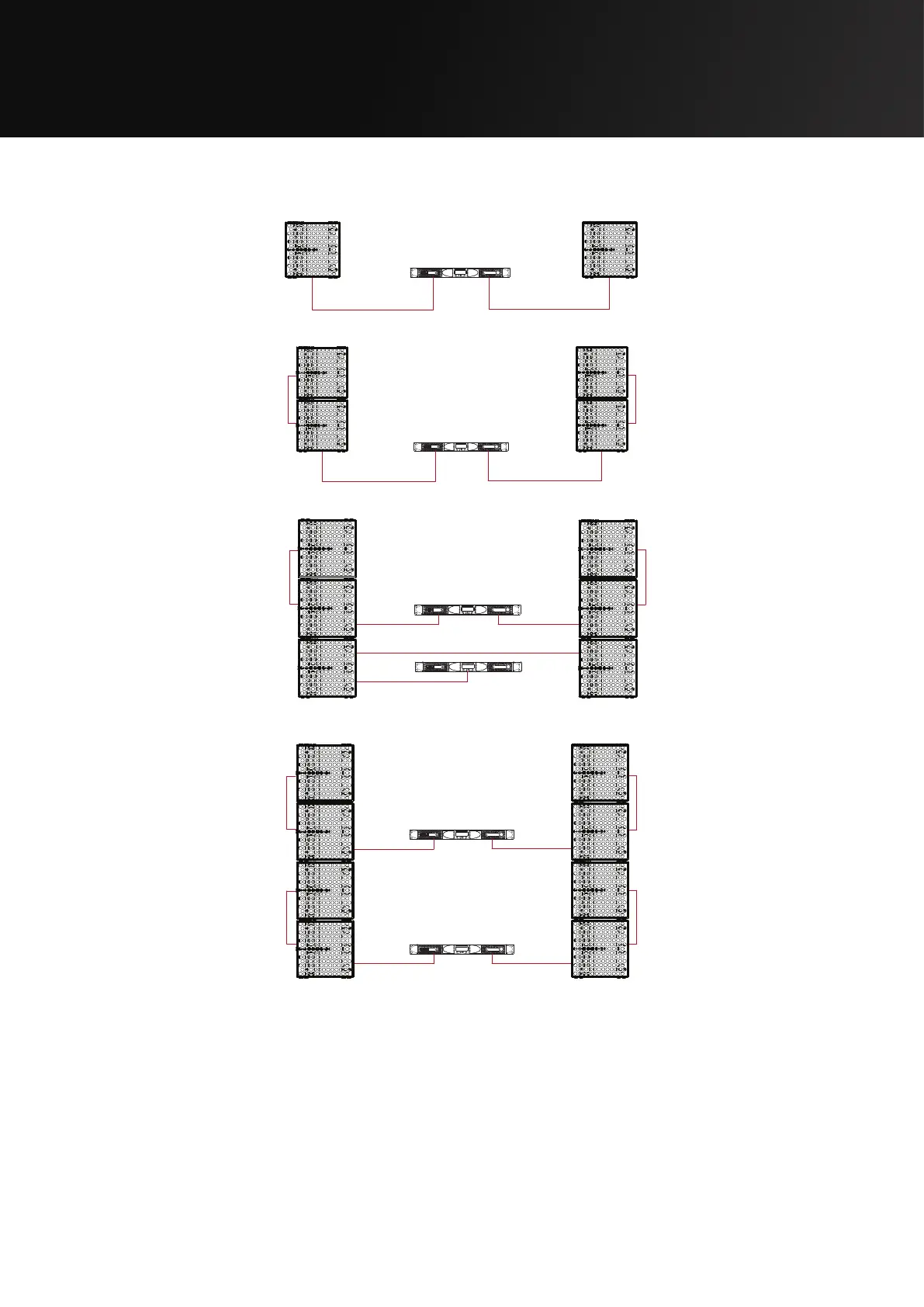

Figure 4.4: 2 x Nexus XL: 8 Ω per channel/1 amplifier
Figure 4.5: 4 x Nexus XL: 4 Ω per channel/1 amplifier
Figure 4.6: 6 x Nexus XL: 8 Ω per channel/2 amplifier
4.6 Amplifier loading guidelines
Ensure all amplifier channels are loaded equally. Limiters engage correctly. Cabinets acoustic
principles are the same.
Figure 4.7: 8 x Nexus XL: 4 Ω per channel/2 amplifier
