5 Adjustments

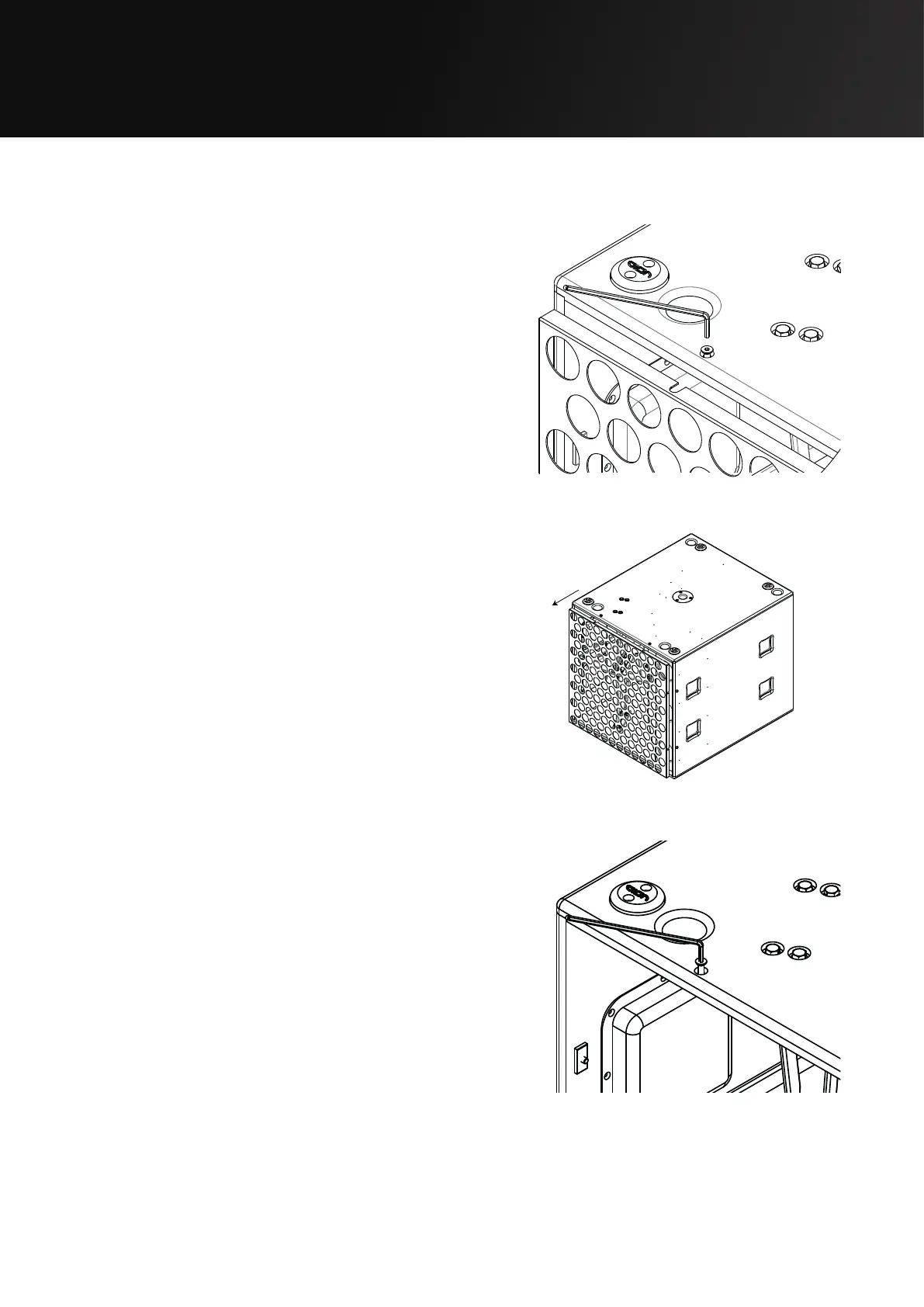

Figure 5.4: Bolt removal
Step 1:
Undo all twelve M6 tab bolts using a 4 mm
Allen key, take care NOT to remove the tab
bolts as they may become lost within the
enclosure.
Figure 5.5: Grille removal
Step 2:
Remove grille.
Step 3:
Replace the M6 bolts by hand until finger tight
before using hand tools.
Figure 5.6: Bolt replacement
5.2 Grille removal
