Page 11
UG10578-2.0 - Nexus XL User Guide V2.0
To avoid damage when making adjustments please note the following:
• Removing the grille can cause debris to collect within the enclosure, take care
to remove anything that may have collected internally
• Do not use impact tools.

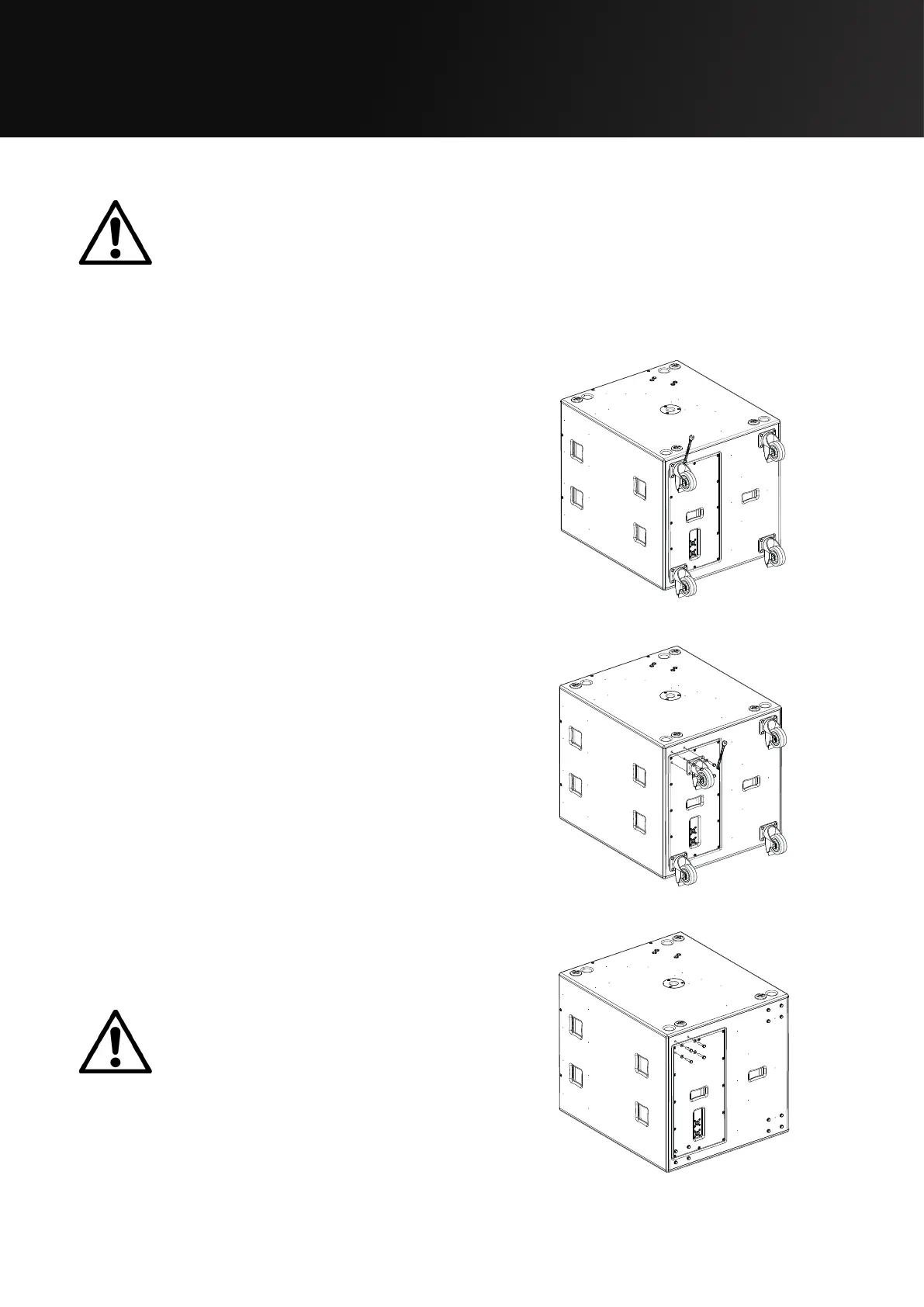

5.1 Wheel removal
B
Figure 5.1: Bolt removal
Step 1:
Remove all four M6 bolts with a 13 mm spanner/
wrench.
Step 2:
Remove/add the wheels and keep in a safe place.
Repeat the process for the other three wheels.
Figure 5.2: Wheel removal
Figure 5.3: Bolt tightening
Step 3:
Replace the M8 bolts by hand until finger tight
before using hand tools.
Note: Replacing bolts is of particular
importance as without them there can
be air leakage and detuning.
5 Adjustments
