BTS-Ex, non-contacting thermal switch unit
Display and Setting of Evaluator
7 Display and Setting of Evaluator
7.1 Design

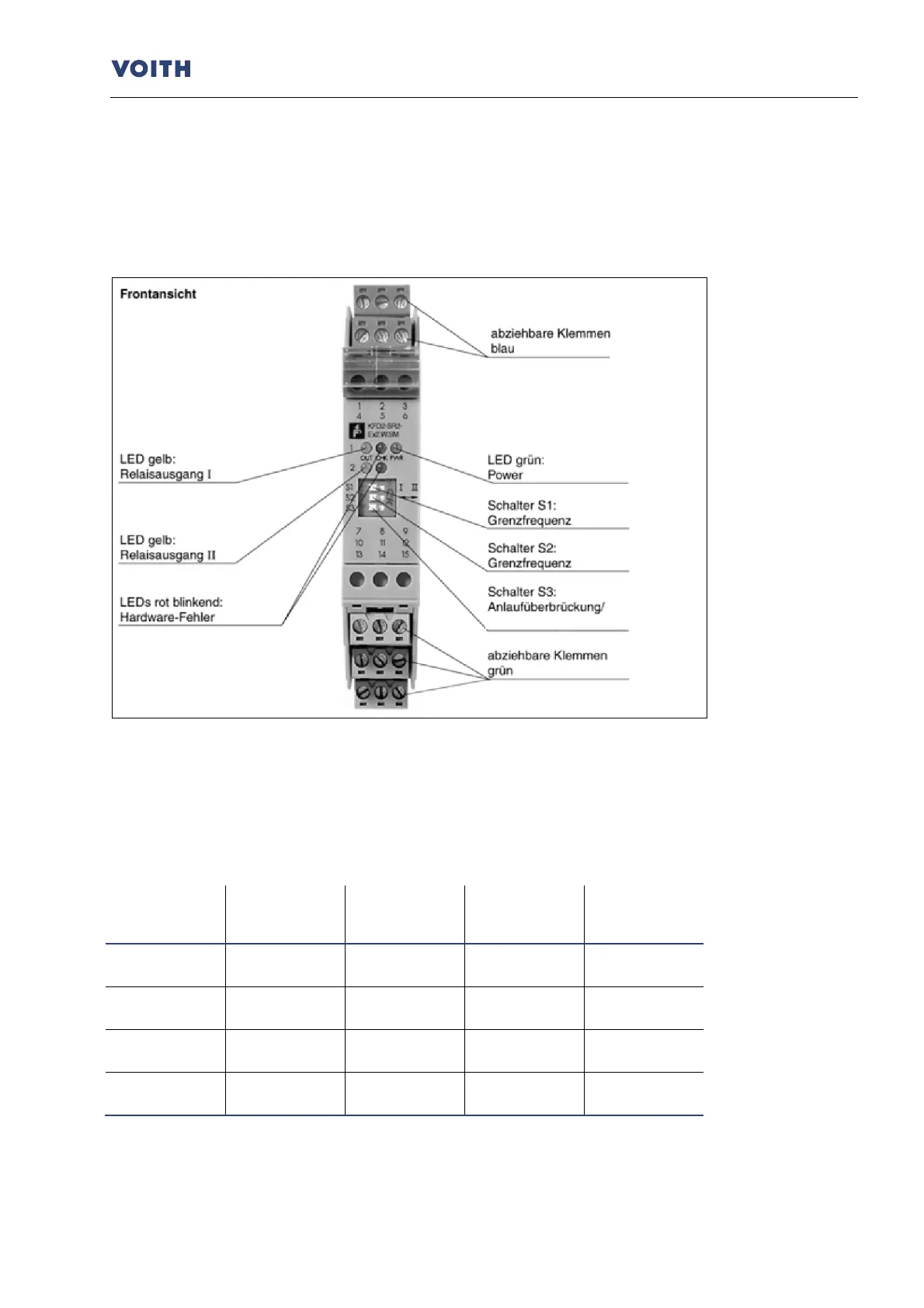

Fig. 8
7.2 Setting of DIP switches S1 and S2 (cutoff frequency)
Set DIP switches to S2 = I and S1 = II:
Cutoff
frequency
Limit speed
Hysteresis
Switch S2
Switch S1
0.1 Hz
6 rpm
0.02 Hz
I
I
0.5 Hz
30 rpm
0.1 Hz
I
II
2.0 Hz
120 rpm
0.4 Hz
II
I
10.0 Hz
600 rpm
2.0 Hz
II
II
Table 7
When using a switching element, the limit speed is 30 rpm.
