BTS-Ex, non-contacting thermal switch unit
Function of BTS-Ex
2 Function of BTS-Ex
The non-contacting thermal switch unit (BTS-Ex) consists of three components:
–
Switching element
–
Initiator with mounting flange
–
Evaluator

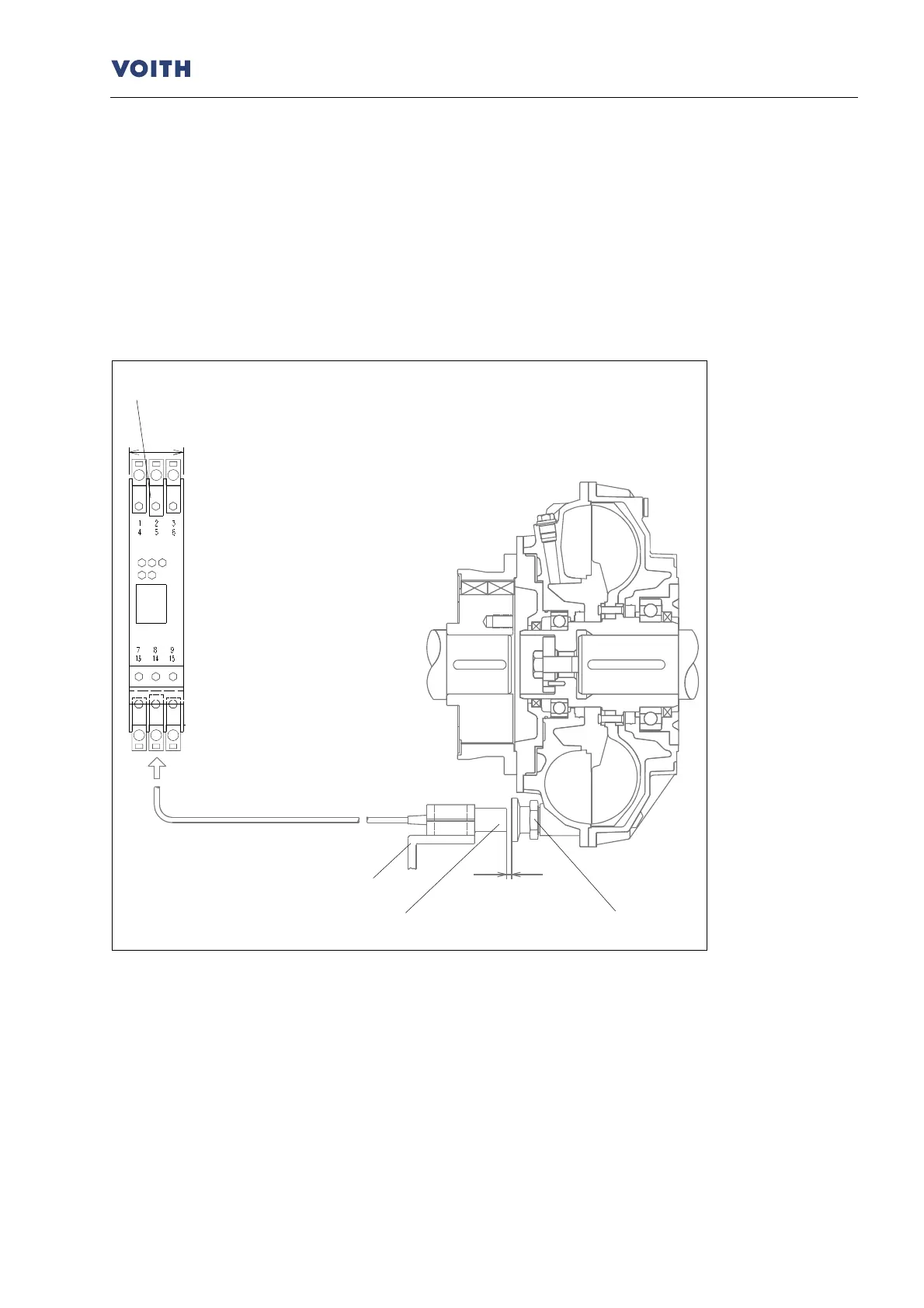

Fig. 1
Evaluator
a = 4 ± 1 mm
Turbo coupling
Initiator
Mounting flange
Switching element
a
