Intake Side
Exhaust Side

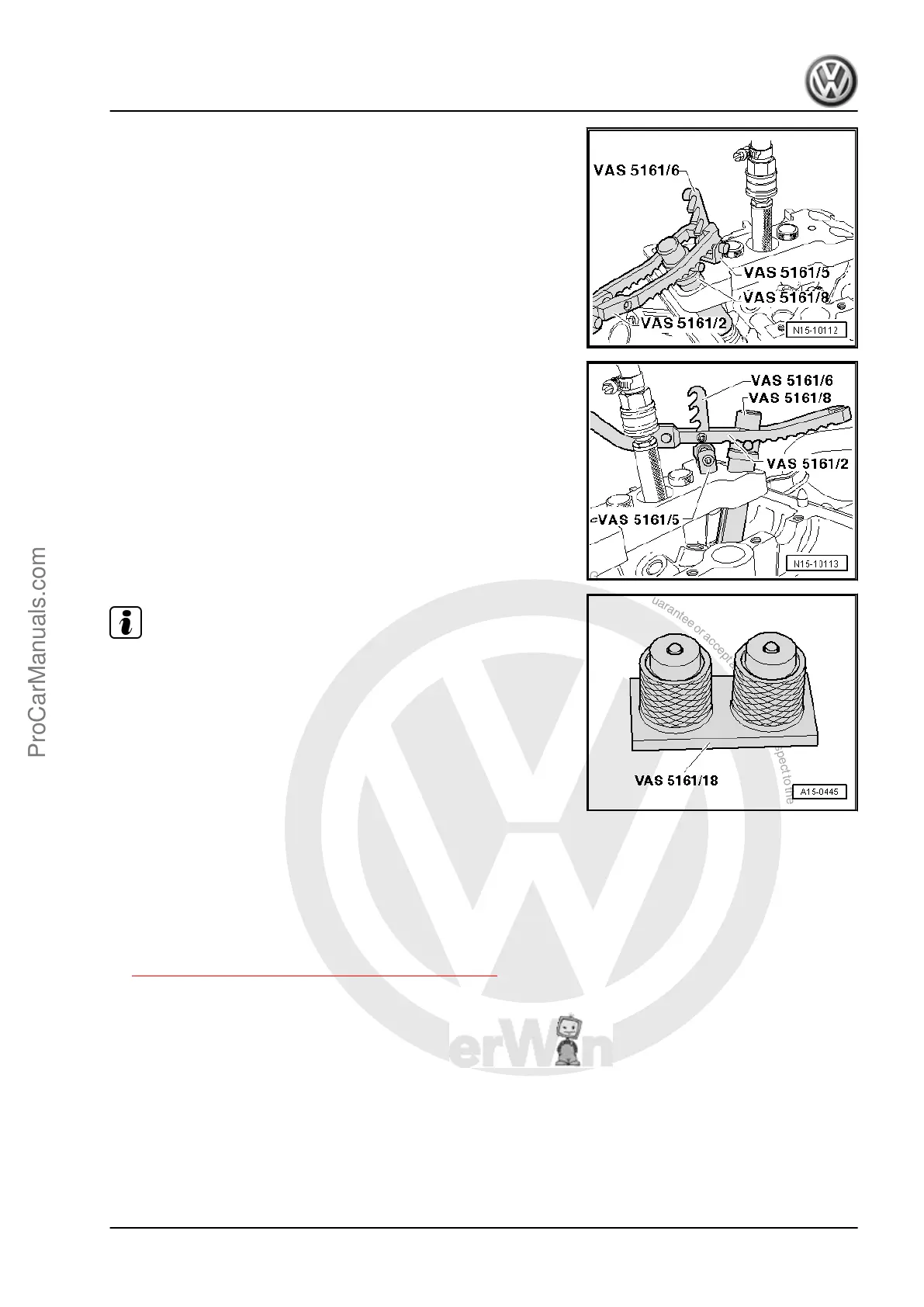

Note
♦
If the valve retainers were removed from the assembly car‐
tridge, they must then be inserted into the Valve Insertion
Device - VAS5161/18- .
♦
Press the Assembly Cartridge - VAS5161/8A- onto the inser‐
tion device from above and capture the valve retainers.
– Press the Valve Keeper Tool Kit Assembly Cartridge -
VAS5161/8- down with the Valve Keeper Tool Kit Pressure
Fork with Lever for Assembly Cartridge - VAS5161/2- and ro‐
tate the cartridge knurled thumb screw back and forth while
pulling up.
– Release the Pressure Fork with Lever for Assembly Cartridge
- VAS5161/2- with the knurled thumb screw pulled.
– Remove the Valve Keeper Tool Kit - VAS5161A- .
Assemble in reverse order of disassembly. Note the following:
– Install the camshafts. Refer to
⇒ 4.2 Camshaft, Removing and Installing, page 136 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
4. Valvetrain 169
