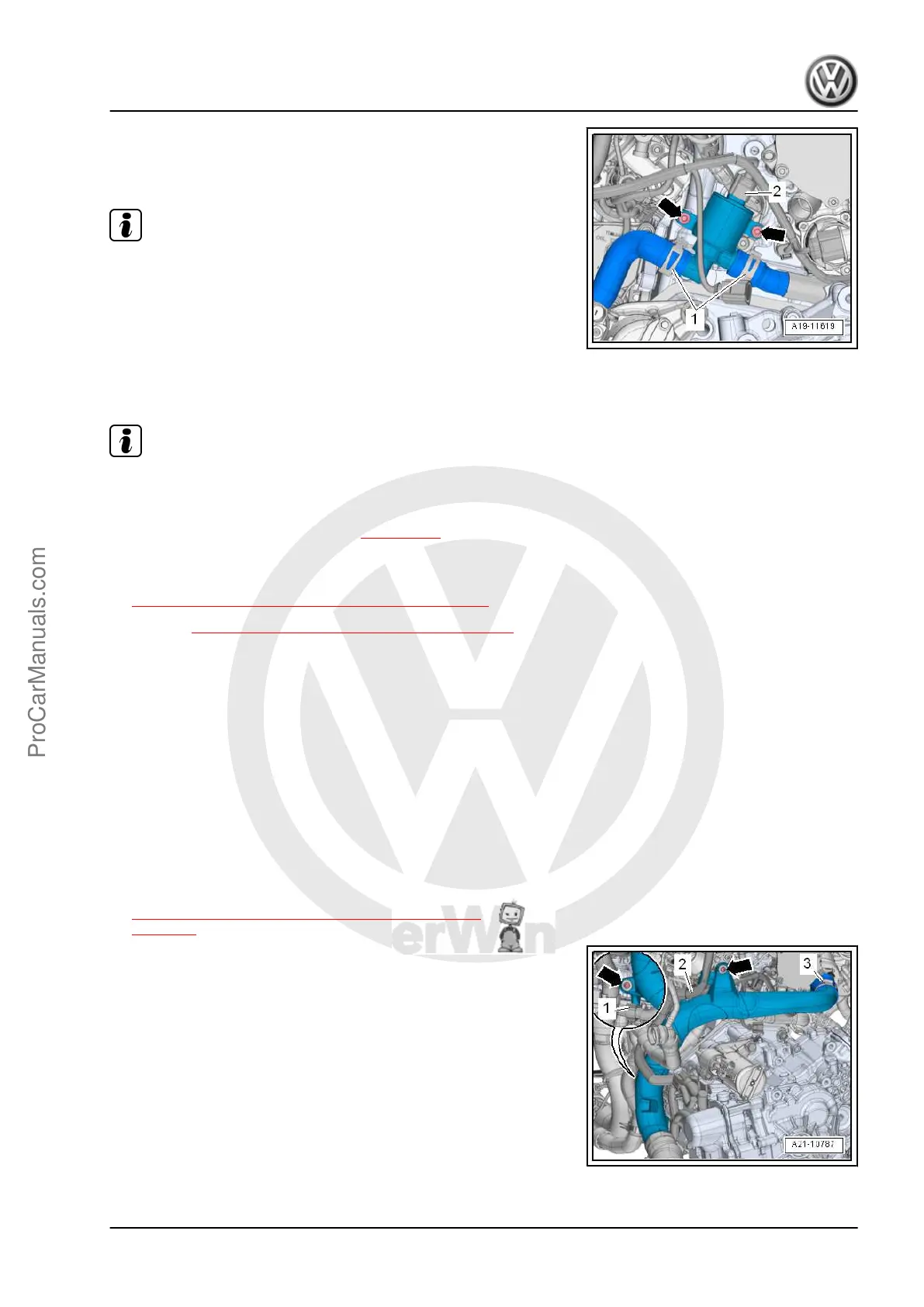

– Disconnect the connector -2-.
– Clamp the coolant hoses on Coolant Shut-Off Valve - N82-
with the Hose Clamps - Up To 25mm - 3094- .
Note
Place a cleaning cloth underneath, to catch coolant leaking out.
– Loosen the hose clamps -1- and remove the coolant hoses.
– Remove the bolts -arrows-, and remove the Coolant Shut-Off
Valve - N82- .
Installing
Install in reverse order of removal. Note the following:
Note
Secure hose connections with standard production clamps. Refer
to the Parts Catalog.
– Check the coolant level. Refer to ⇒ page 222 .
Tightening Specifications
♦ Refer to
⇒ 2.2 Overview - Electric Coolant Pump, page 226 .
♦ Refer to ⇒ 3.1 Overview - Air Filter Housing, page 293 .
2.6 Transmission Coolant Valve - N488- ,
Removing and Installing
Special tools and workshop equipment required
♦ Hose Clamps - Up To 25mm - 3094-
♦ Hose Clip Pliers - VAS6362-
Vehicles with a DSG
®
Transmission
Removing
– Remove the noise insulation. Refer to ⇒ Body Exterior; Rep.
Gr. 66 ; Noise Insulation; Overview - Noise Insulation .
– Remove the air filter housing. Refer to
⇒ 3.2 Air Filter Housing, Removing and Installing,
page 294 .
– Free up the wiring harness -1 and 2- from the air guide pipe.
– Loosen the screw-type clamp -3-.
– Remove the bolts -arrows-.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
2. Coolant Pump/Thermostat 231
