28 – Ignition/Glow Plug System
1 Ignition System
⇒ 1.1 Overview - Ignition System, page 356 .
⇒ 1.3 Ignition Coils with Power Output Stages, Removing and
Installing, page 357 .
⇒ 1.4 Knock Sensor 1 G61 , Removing and Installing,
page 359 .
⇒ 1.5 Camshaft Position Sensor, Removing and Installing, page
360 .
⇒ 1.6 Engine Speed Sensor G28 , Removing and Installing,
page 361 .

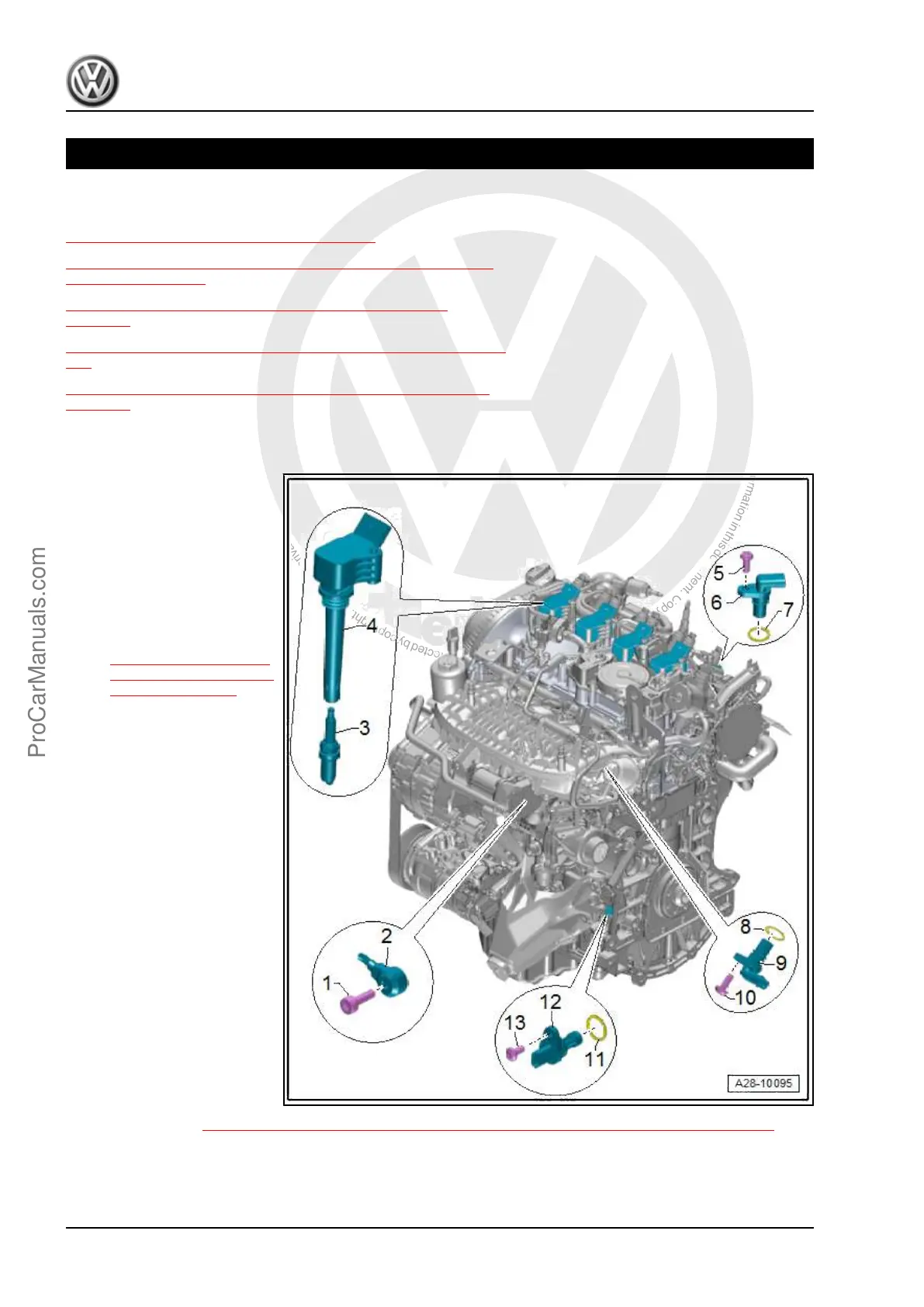

1.1 Overview - Ignition System
1 - Bolt
❑ 8 Nm + 90°
❑ Replace after removing
❑ The tightening specifi‐
cation affect how the
knock sensor functions
2 - Knock Sensor 1 - G61-
❑ Removing and instal‐
ling. Refer to
⇒ 1.4 Knock Sensor 1
G61 , Removing and In‐
stalling, page 359 .
3 - Spark Plug
❑ 30 Nm
❑ Remove and install us‐
ing Spark Plug Removal
Tool - 3122 B-
4 - Ignition Coil with Power
Output Stage
❑ 10 Nm
❑ Ignition Coil 1 with Pow‐
er Output Stage - N70-
❑ Ignition Coil 2 with Pow‐
er Output Stage - N127-
❑ Ignition Coil 3 with Pow‐
er Output Stage - N291-
❑ Ignition Coil 4 with Pow‐
er Output Stage - N292-
❑ Ignition coils with power
output stage and spark
plug connectors can be
obtained individually for
repairs
❑ Removing and instal‐
ling. Refer to ⇒ 1.3 Ignition Coils with Power Output Stages, Removing and Installing, page 357 .
5 - Bolt
❑ 9 Nm
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
356 Rep. Gr.28 - Ignition/Glow Plug System
