7 - Bolt/Nut
❑ 3 Nm
❑ For the Structure Borne Sound Control Module - J869-
8 - Bolt
❑ 9 Nm
9 - Connector
❑ For the Structure-Borne Sound Actuator - R214-
5.2 Fuel Pressure Sensor - G247- , Remov‐
ing and Installing
Special tools and workshop equipment required
♦ Elbow Assembly Tool - T10118-
♦ Socket - 27mm - T40218-
If the Fuel Pressure Sensor - G247- fails, the Fuel Pressure Reg‐
ulator Valve - N276- will switch off, the electric fuel pump is fully
activated and the engine will be driven by the existing fuel pres‐
sure. This will reduce the engine torque dramatically.

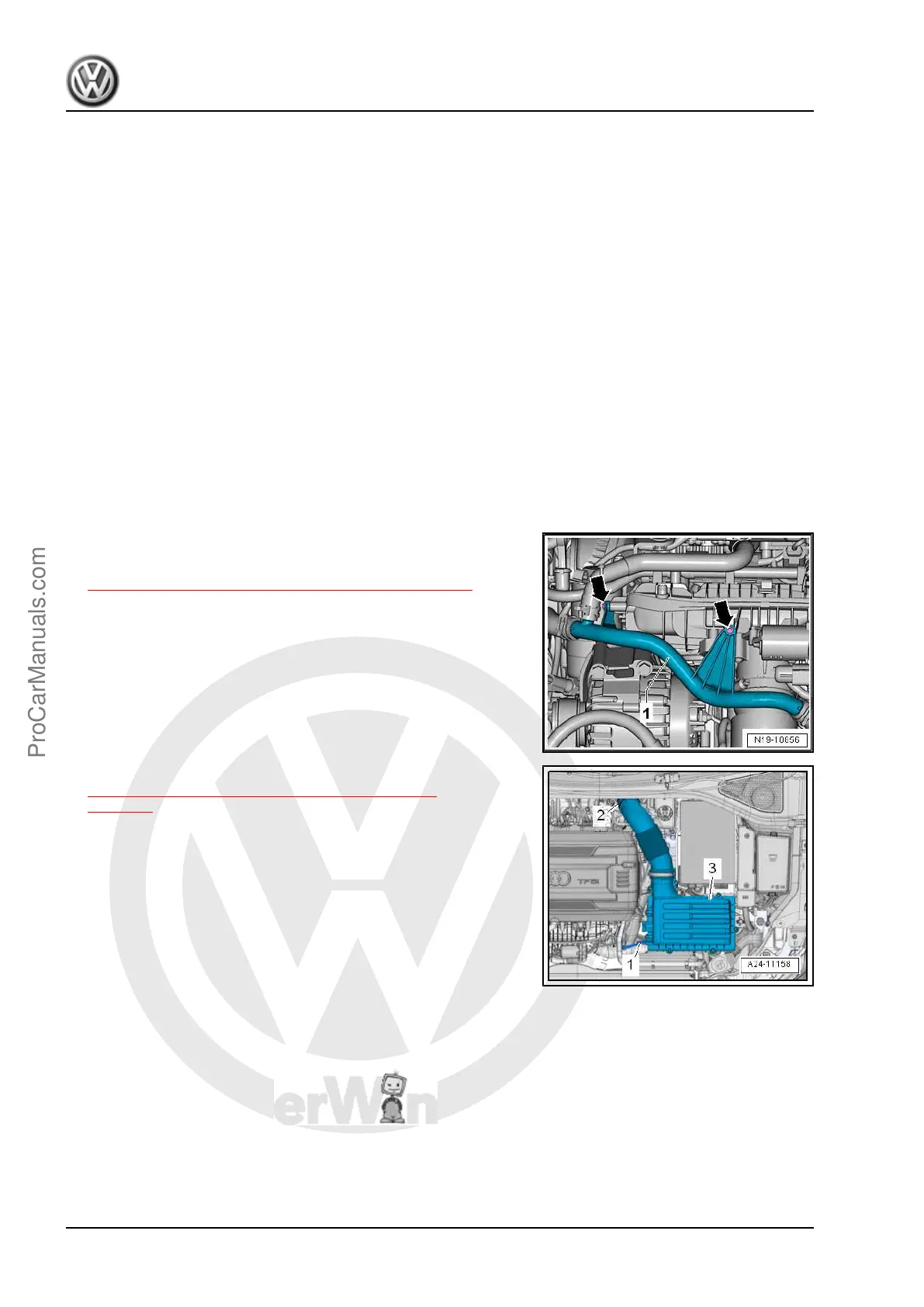

Removing
– Remove the engine cover. Refer to
⇒ 3.1 Engine Cover, Removing and Installing, page 38 .
– Remove the bolts -arrows-.
– Remove the air filter housing -3-. Refer to
⇒ 3.2 Air Filter Housing, Removing and Installing,
page 294 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
314 Rep. Gr.24 - Multiport Fuel Injection
