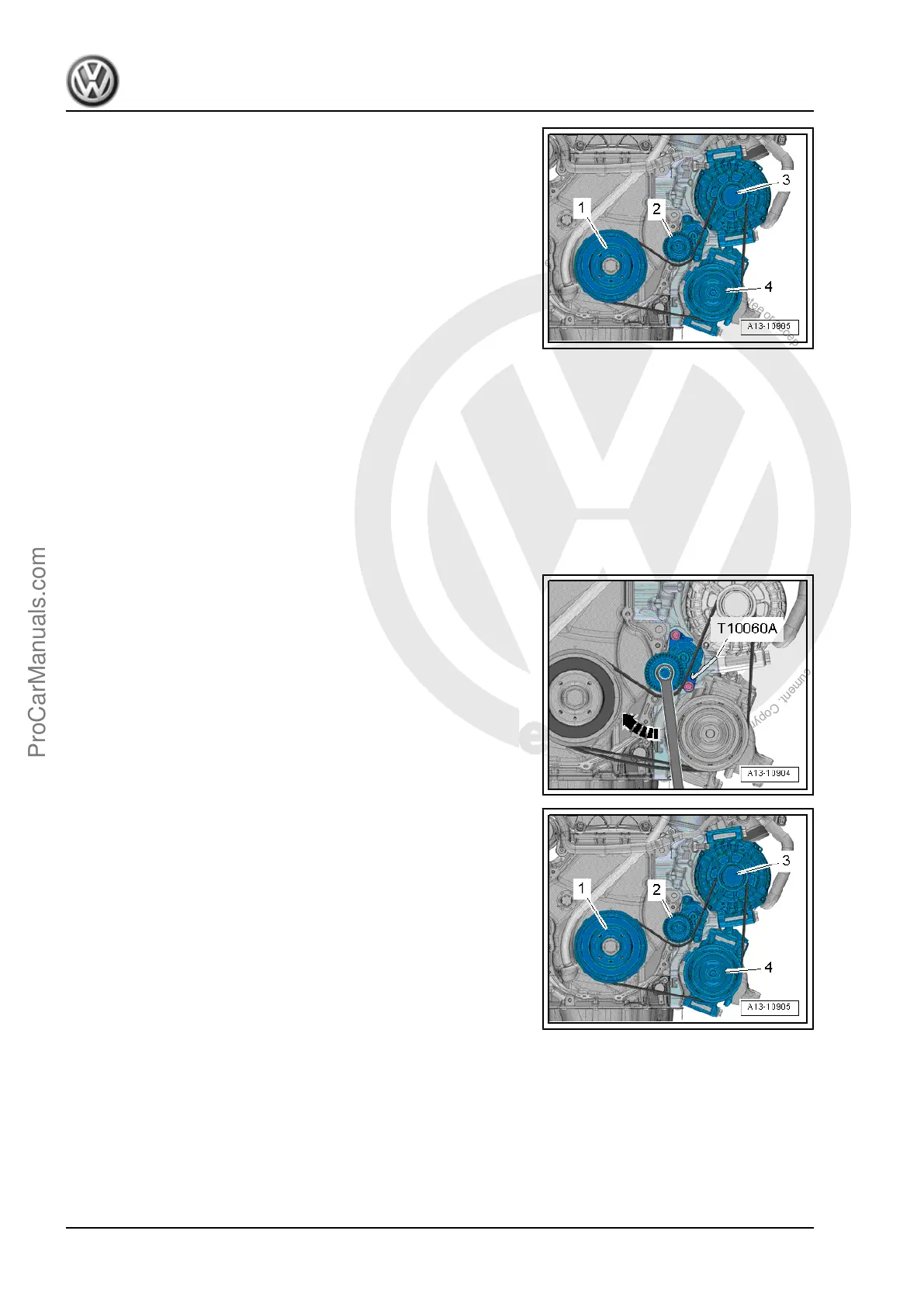

Ribbed Belt Routing
1 - Vibration damper
2 - Ribbed Belt Tensioning Damper
3 - Generator
4 - A/C Compressor
1.2 Ribbed Belt, Removing and Installing
Special tools and workshop equipment required
♦ Locking Pin - T10060A-
Removing
– Remove the noise insulation. Refer to ⇒ Body Exterior; Rep.
Gr. 66 ; Noise Insulation; Overview - Noise Insulation .
– Remove the right wheel housing liner front section. Refer to ⇒
Body Exterior; Rep. Gr. 66 ; Wheel Housing Liner; Front
Wheel Housing Liner, Removing and Installing .
– If the ribbed belt is to be reinstalled mark the running direction
with chalk or a felt-tip pen for reinstallation.
– Secure the tensioning system using Locking Pin - T10060A- .
– Remove the ribbed belt.
Installing
– When a used ribbed belt is installed, pay attention to the run‐
ning direction.
– Position the ribbed belt as illustrated.
1 - Vibration damper
2 - Ribbed Belt Tensioning Damper
3 - Generator
4 - Air Conditioning (A/C) Compressor
– Turn the tensioning system in the direction of the -arrow- and
remove Locking Pin - T10060A- .
– Release the tensioner.
– Check whether ribbed belt is routed correctly.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
46 Rep. Gr.13 - Crankshaft, Cylinder Block
