6 - Vibration Damper
❑ With ribbed belt pulley
❑ Removing and installing. Refer to ⇒ 1.4 Vibration Damper, Removing and Installing, page 47 .
❑ Vibration Damper Sealing Ring, Replacing. Refer to
⇒ 2.3 Vibration Damper Sealing Ring, Replacing, page 112 .
7 - Auxiliary Components Bracket
❑ With oil filter and engine oil cooler
❑ Accessory assembly bracket, removing and installing. Refer to
⇒ 1.5 Auxiliary Components Bracket, Removing and Installing, page 53 .
❑ Removing and installing the engine oil cooler. Refer to
⇒ 2.2 Engine Oil Cooler, Removing and Installing, page 192 .
8 - Seal
❑ Replace after removing
9 - Bolt
❑ Replace after removing
❑ Tightening specification and sequence. Refer to
⇒ Fig. Accessory Assembly Bracket - Tightening Specifications and Tightening Sequence ,
page 45 .
10 - Bolt
❑ Tightening specification. Refer to ⇒ Electrical Equipment; Rep. Gr. 27 ; Generator; Overview - Gener‐
ator .
11 - Generator
❑ Overview. Refer to ⇒ Electrical Equipment; Rep. Gr. 27 ; Generator; Overview - Generator .
12 - Alignment Sleeves
❑ For A/C compressor
13 - Air Conditioning (A/C) Compressor
❑ Do not remove or disconnect refrigerant lines
❑ Assembly overview. Refer to ⇒ Heating, Ventilation and Air Conditioning; Rep. Gr. 87 ; A/C Compressor;
Overview - A/C Compressor Power Unit .
14 - Bolt
❑ Tightening specifications. Refer to ⇒ Heating, Ventilation and Air Conditioning; Rep. Gr. 87 ; A/C Com‐
pressor; Overview - A/C Compressor Power Unit .

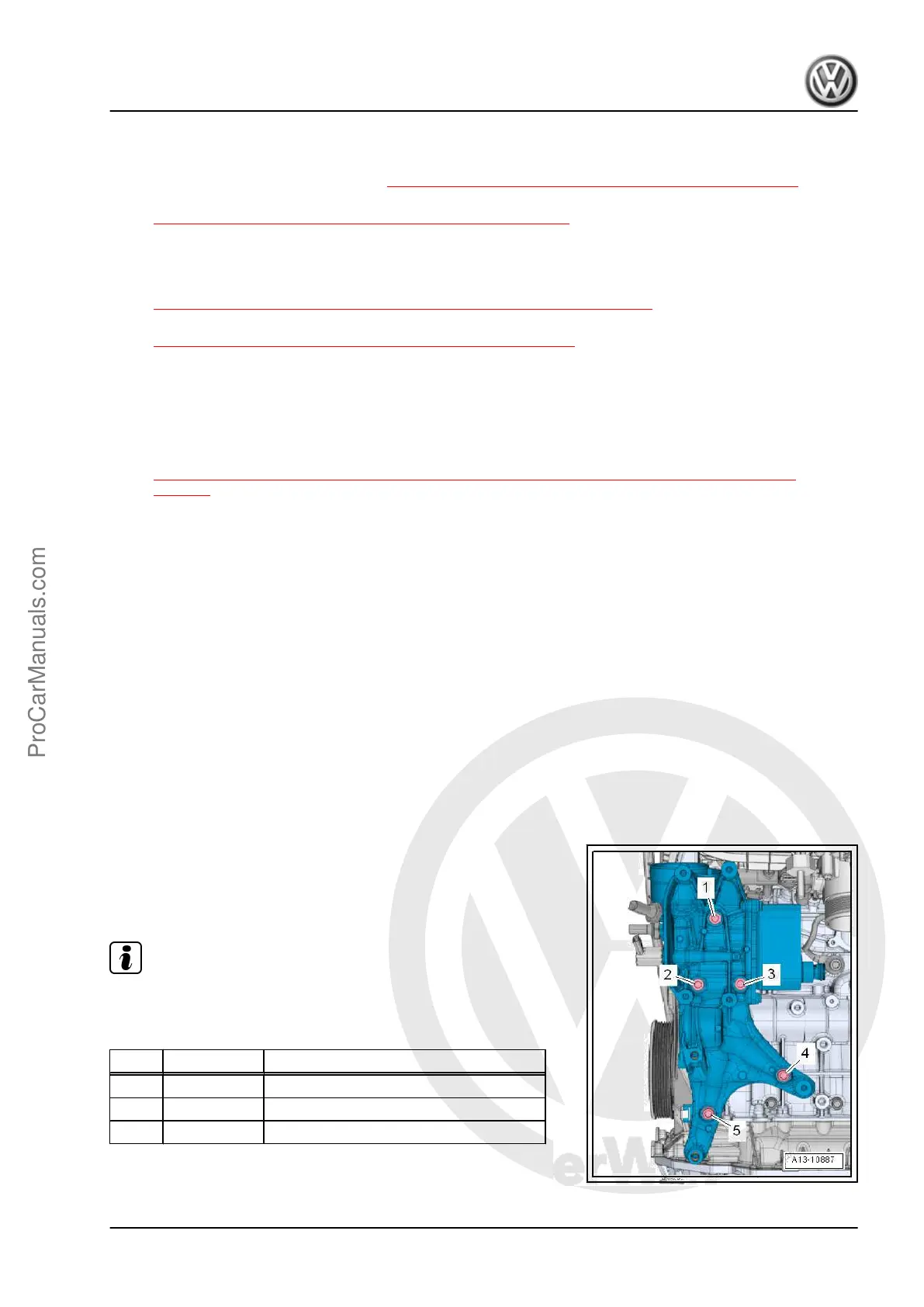

Accessory Assembly Bracket - Tightening Specifications and
Tightening Sequence
– Mount the accessory assembly bracket and then install the
bolt -4- by hand.
Note
Replace the bolts that were tightened with an additional turn.
– Tighten bolts in 3 stages in -1 to 5- sequence as follows:
Step Bolts Tightening Specification
1. -1 through 5- Tighten by hand
2. -1 through 5- 20 Nm
3. -1 through 5- Turn an additional 90°.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Cylinder Block, Belt Pulley Side 45
