♦ Chain Tensioner Locking Tool - T40265-
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Bolts - Oil Baffle
♦ Bolts - Oil Pump
♦ Oil Baffle
Note
There are plastic ribs on the oil baffle that deform permanently
when tightening. The plastic ribs ensure the oil baffle has no play
and does not rattle. Because of this, always replace the oil baffle
after removal.

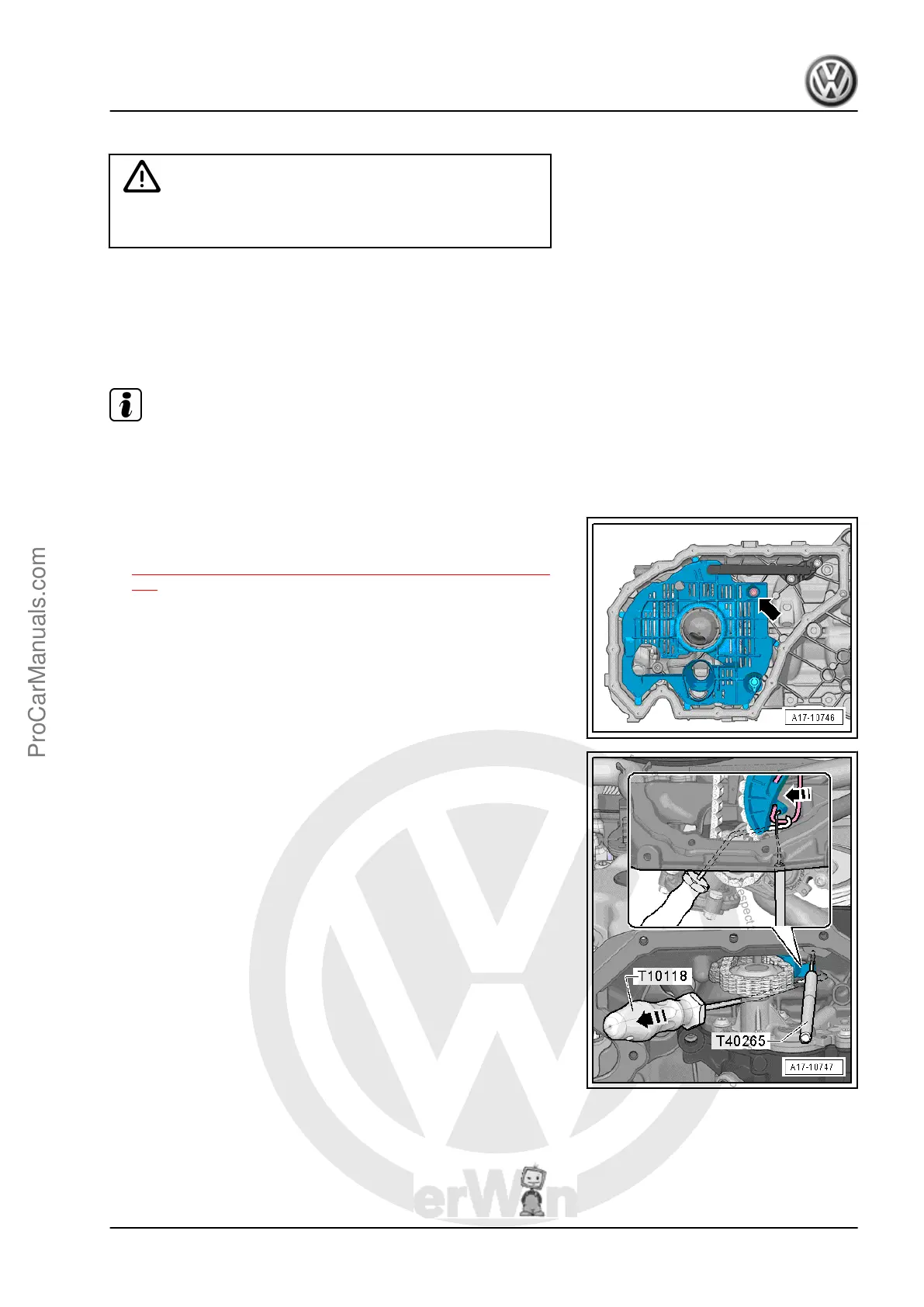

Removing
– Remove the oil pan lower section. Refer to
⇒ 1.3 Oil Pan Lower Section, Removing and Installing, page
182 .
– Remove bolt -arrow- and oil baffle.
– Pull the chain tensioner spring using the Elbow Assembly Tool
- T10118- in direction of -arrow- and secure it with the Chain
Tensioner Locking Tool - T40265- .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Oil Pan/Oil Pump 189
