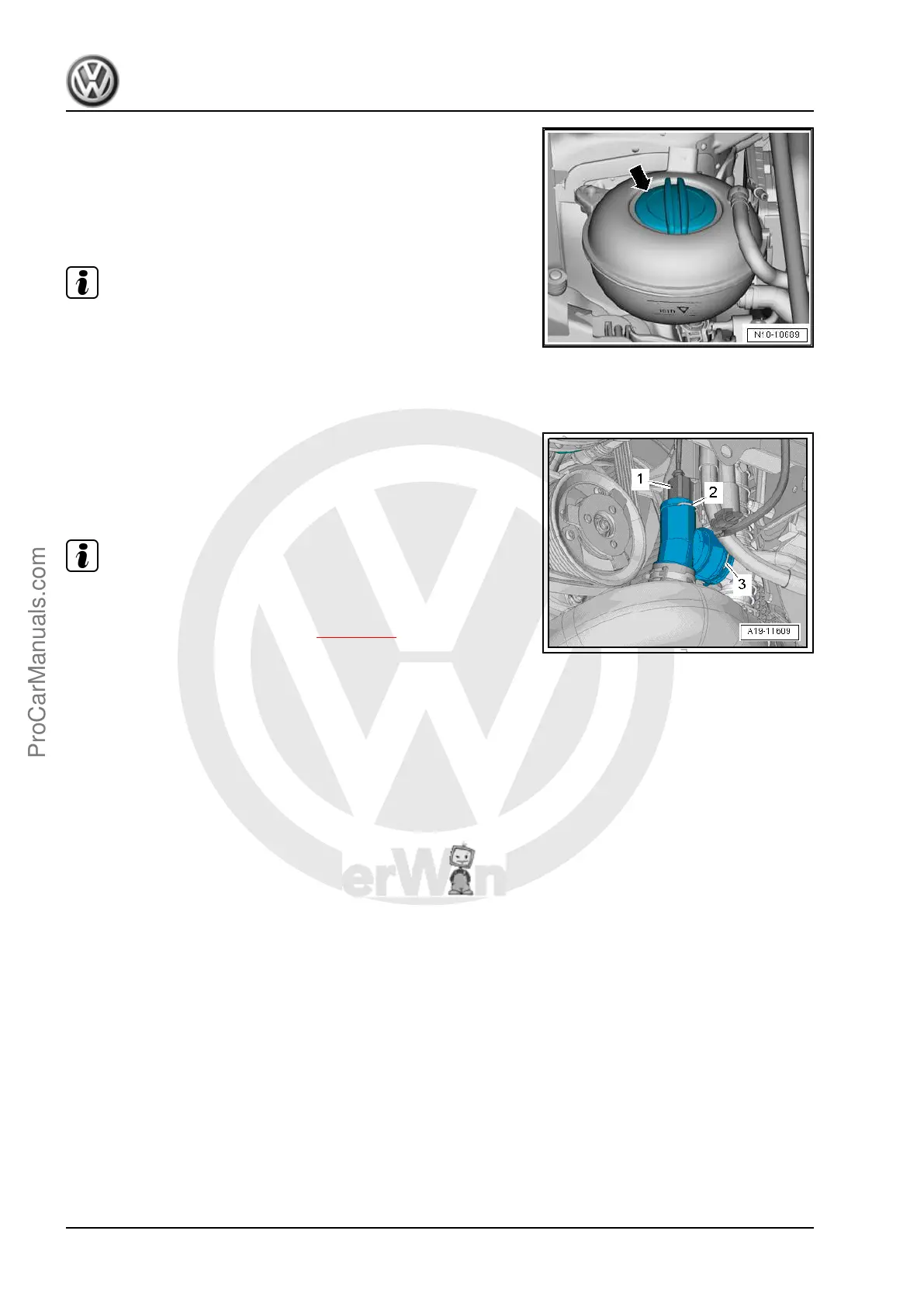

– Quickly open the coolant expansion tank cap -arrow- and re‐
lease any remaining pressure in the cooling system and then
close it again until it locks.
– Remove the noise insulation. Refer to ⇒ Body Exterior; Rep.
Gr. 66 ; Noise Insulation; Overview - Noise Insulation .
– Disconnect the connector -1-.
Note
♦
Place a cleaning cloth underneath, to catch coolant leaking
out.
♦
Insert the new Engine Coolant Temperature Sensor on Radi‐
ator Outlet - G83- immediately in the connection to prevent
coolant loss.
– Remove clamp -2- and Engine Coolant Temperature Sensor
on Radiator Outlet - G83- .
Installing
Install in reverse order of removal. Note the following:
Note
Replace the O-rings.
– Check the coolant level. Refer to ⇒ page 218 .
Tightening Specifications
♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation;
Overview - Noise Insulation .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
240 Rep. Gr.19 - Cooling System
