♦ Seal - Turbocharger
♦ Bolts- Pendulum Support
Note
♦
If mechanical damage (such as a destroyed compression
wheel) is found on the turbocharger, just replacing the turbo‐
charger is not enough. To avoid damage later, perform the
following steps:
♦
Check the air filter housing, air filter element and air guide ho‐
ses for contamination.
♦
Check the entire charge air circuit and charge air cooler for
foreign objects.
♦
If there are foreign objects in the charge air system, clean the
charge air circuit and replace the charge air cooler if neces‐
sary.
Removing
– Drain the coolant. Refer to
⇒ 1.3 Coolant, Draining and Filling, page 217 .
– Remove front exhaust pipe with catalytic converter. Refer to
⇒ 2.2 Catalytic Converter, Removing and Installing,
page 349 .
– Remove the air filter housing with the air guide pipe to the tur‐
bocharger. Refer to
⇒ 3.2 Air Filter Housing, Removing and Installing,
page 294 .

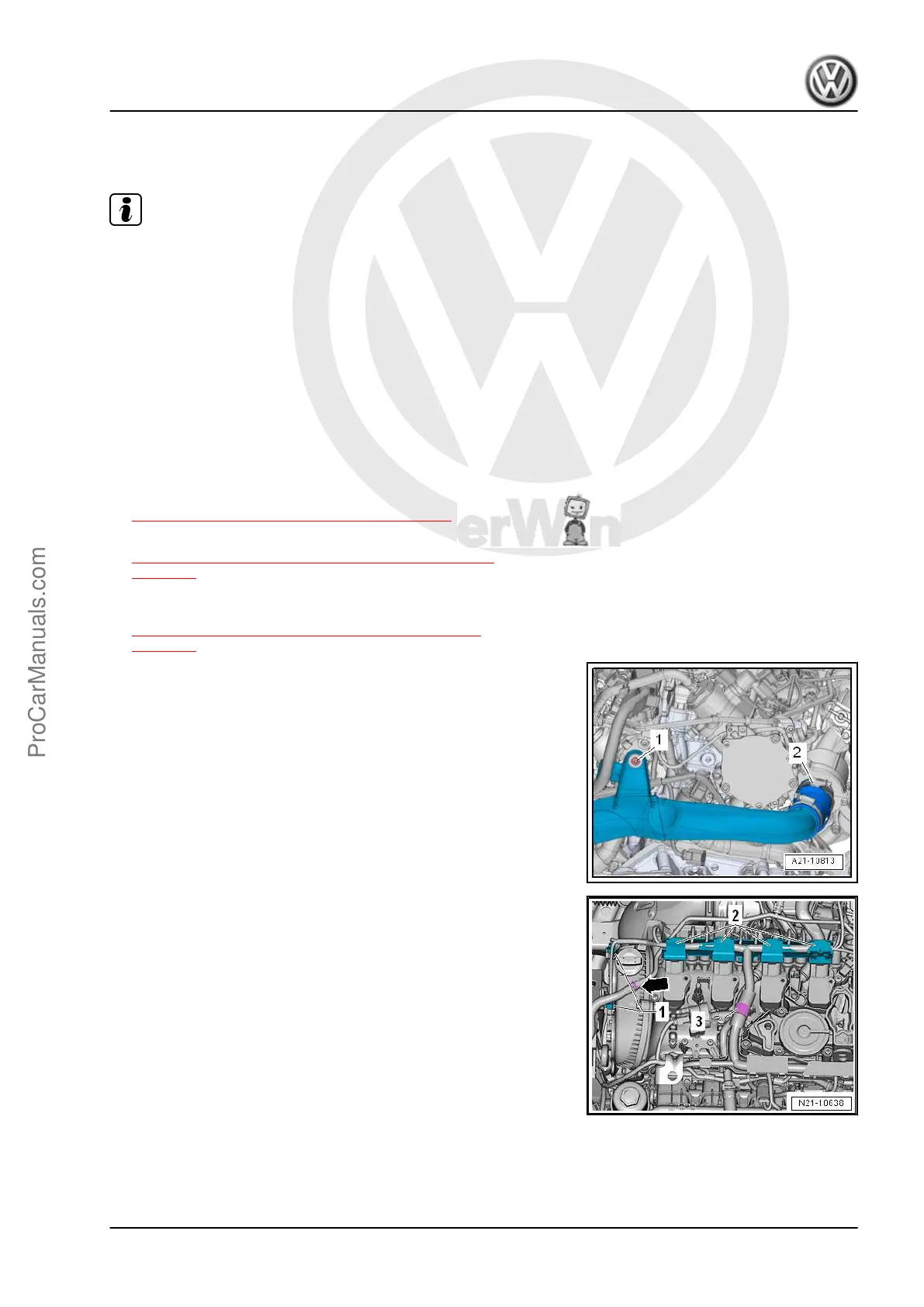

– Loosen the hose clamp -2-.
– Remove the bolt -1- and then remove the air guide pipe from
the turbocharger.
– Remove the coolant hose -arrow-.
– Disconnect connectors -1 and 2-. Open the bracket -3-.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Turbocharger 259
