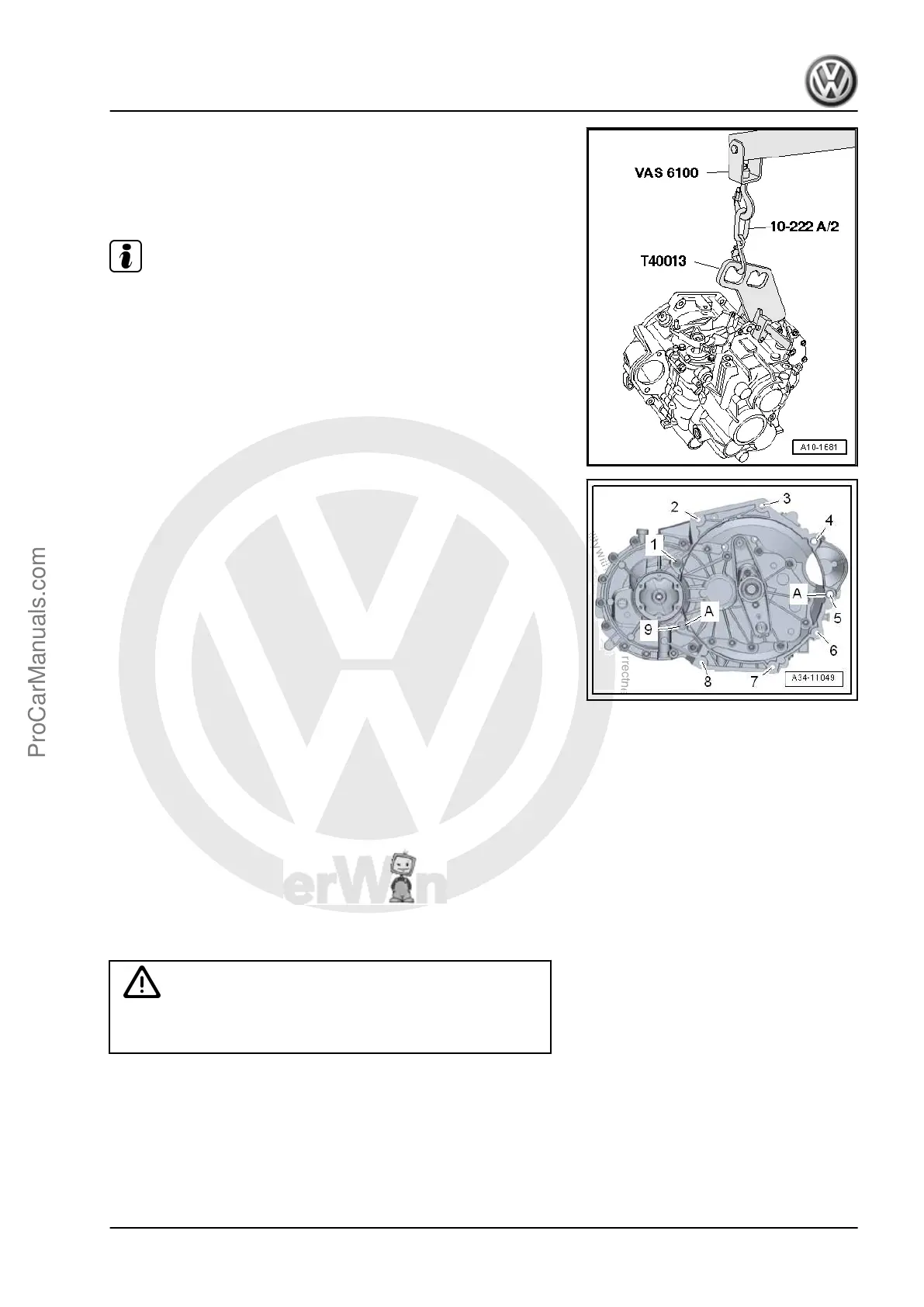

– Install the Transmission Lift Hook - T40013- on the transmis‐
sion and close locking device.
– Engage the Shop Crane - VAS6100- with Engine Support
Bridge - Additional Hooks (2 pc.) - 10-222A/2- on the trans‐
mission lift hook.
Note
Ignore items -4, 5, and A-.
– Remove the bolts -1, 2, 3, 6, 7, 8, and 9- connecting the trans‐
mission to the engine.
– Remove the transmission from the engine.
1.2.2 Engine and Transmission, Separating,
Vehicles with DSG
®
Transmission
Special tools and workshop equipment required
♦ Engine Support Bridge - Additional Hooks (2 pc.) - 10-222A/
20-
♦ Hooks Engine Sling - Engine Bracket - 2024A/1- from the En‐
gine Sling - 2024A-
♦ Shop Crane - VAS6100-
♦ Engine Bung Set - VAS6122-
♦ Hose Clamps - Up To 25mm - 3094-
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Bolts - Engine to Transmission
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Engine, Removing and Installing 21
